Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 21, 2017, 07:09 AM

  • 02 1225A_02 1225_21072017_001256.mp4

Date
07/21/2017
W/O
646745
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00303
PipeID
P03729
Time
12:09 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4756
Sewer Name
02 SANTA ANITA OUTFALL TRUNK
City
MONTEBELLO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
14
Purpose
Routine Assessment
Project
WO_646745_TV02120_JUL2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
02 1225
Downstream MH
02 1225A
Dir. of Survey
Upstream
Length Surveyed
321.6 ft.
Total Length
321.9 ft.
Structural Index
3
Structural Quick
3724
Structural Rating
29
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
29
Pipe schematic from manhole 02 1225 to 02 1225A
MH: 02 1225MH: 02 1225Aupstream0 ft. AMH - Upstream Manhole, Survey Ends - 02 1225A0.1 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK10.8 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES86.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES121.2 ft. TS - Tap Saddle, at 12 o'clock, -, within 8 inches of joint: NO, 6"227.7 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES276.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish312.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start318.7 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES321.6 ft. MWL - Water Level, 15 %of cross sectional area321.6 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK321.6 ft. MWM - Water Mark, 20 %of cross sectional area321.6 ft. AMH - Downstream Manhole, Survey Begins - 02 1225

Observation photos (6)

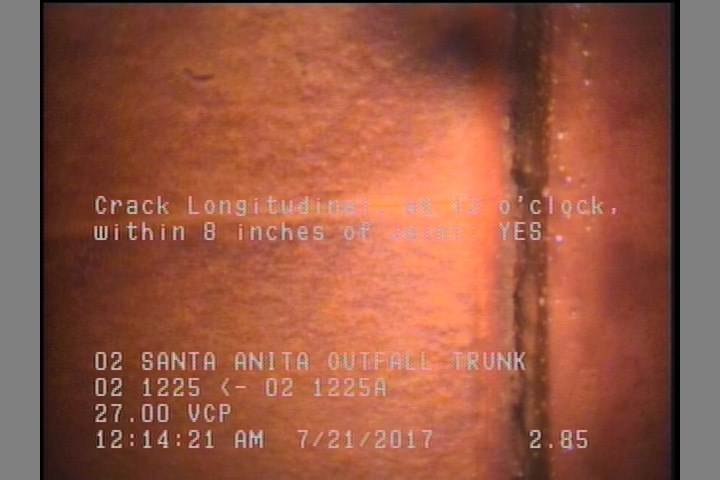

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    2.9 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

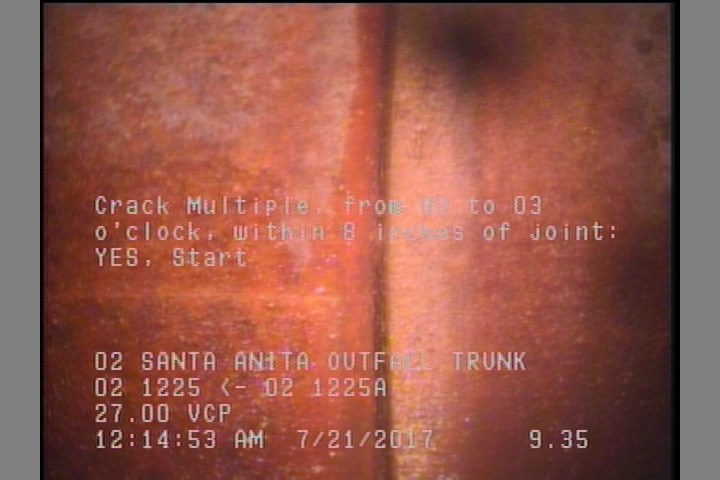

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    9.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

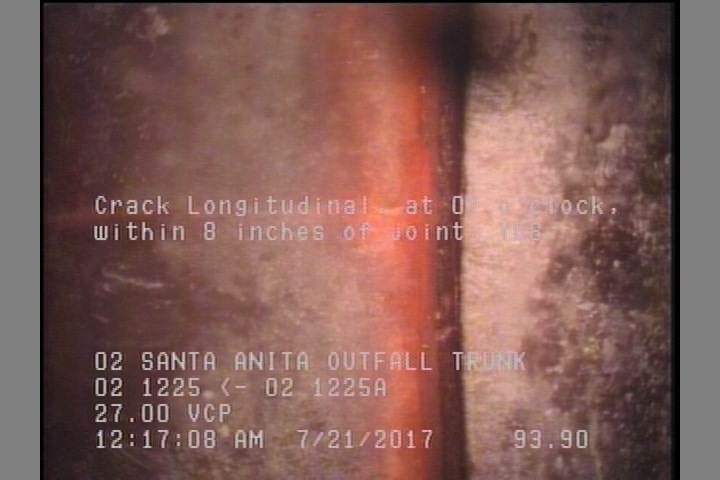

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    93.9 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

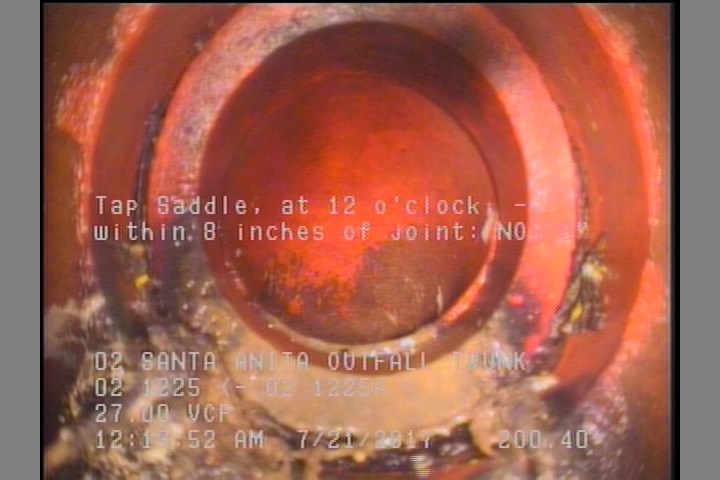

  • Tap Saddle, at 12 o'clock, -, within 8 inches of joint: NO, 6"

    200.4 ft. - Tap Saddle, at 12 o'clock, -, within 8 inches of joint: NO, 6"

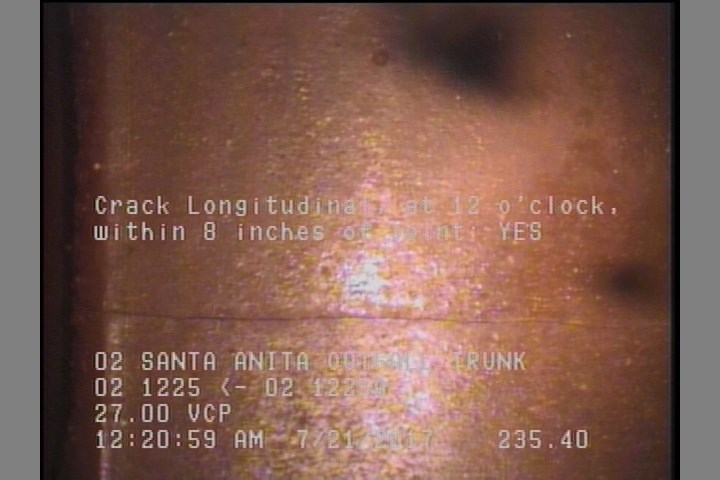

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    235.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

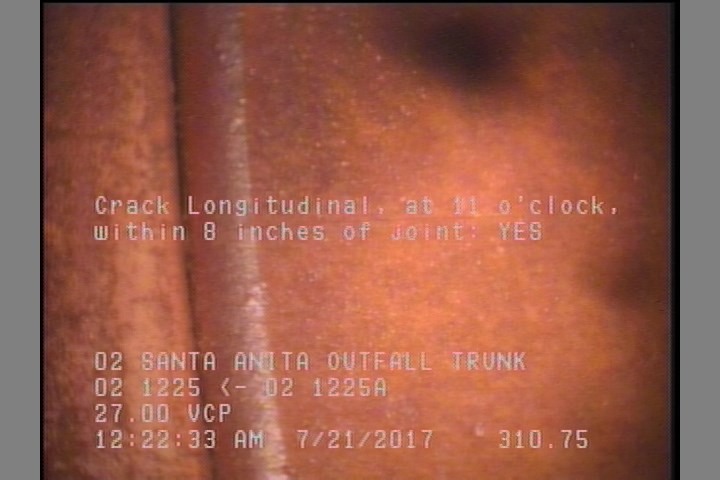

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    310.8 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

All inspections of P03729Work order 646745

Observations (13)

DistanceCodeObservation
0MWL—
0MGOCONNECTION AT MH 9 O'CLOCK
0MWM—
45.5CM—
235.4CL—
0AMH02 1225
93.9CL—
310.8CL—
321.6AMH02 1225A
9.4CM—
2.9CL—
321.5MGOCONNECTION AT MH 9 O'CLOCK
200.4TS—

Properties (6)

additional_info
SC345516
custom_field_two
3
customer
LACSD
datetime
2017-07-21T00:09:00-07:00
documentation
PROPIPE
is_lateral_inspection
false
