Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 23, 2017, 07:17 AM

  • 29 0386_29 0385 _23082017_003338.mp4

Date
08/23/2017
W/O
651742
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00537
PipeID
P24423
Time
12:17 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4791
Sewer Name
29 21ST STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
WO_651742_TV29055_AUG2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0386
Downstream MH
29 0385
Dir. of Survey
Downstream
Length Surveyed
303.9 ft.
Total Length
303.9 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
177
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
179
Pipe schematic from manhole 29 0386 to 29 0385
MH: 29 0386MH: 29 0385downstream0 ft. AMH - Upstream Manhole, Survey Begins - 29 03860 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 5 %of cross sectional area3.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start4.6 ft. RFJ - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES4.6 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"30.2 ft. RFJ - Roots Fine Joint, from 03 to 04 o'clock, within 8 inches of joint: YES49.7 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"55.9 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 6"98.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"100.9 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"152.1 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"197.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"199.8 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"248.1 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"266.1 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"300.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish303.9 ft. AMH - Downstream Manhole, Survey Ends - 29 0385

Observation photos (2)

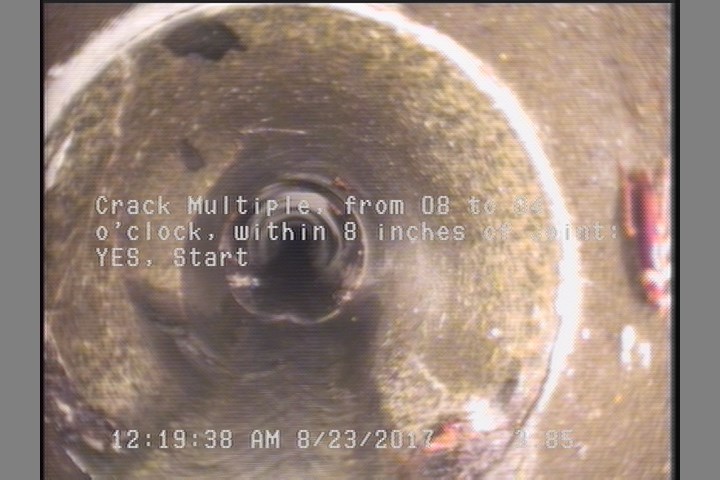

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

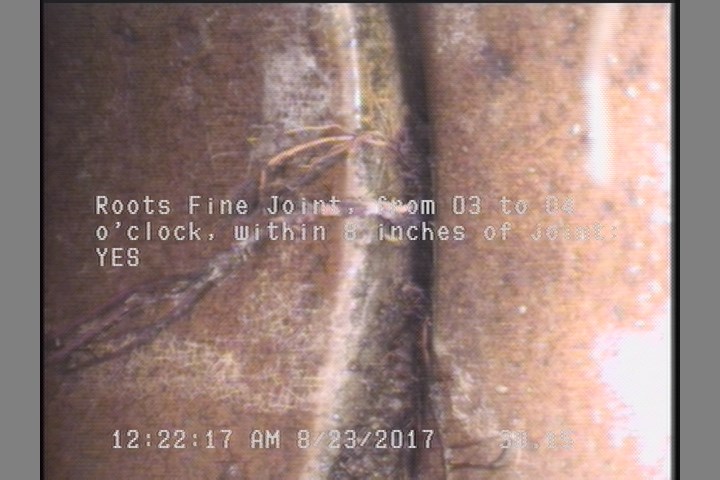

  • Roots Fine Joint, from 03 to 04 o'clock, within 8 inches of joint: YES

    30.2 ft. - Roots Fine Joint, from 03 to 04 o'clock, within 8 inches of joint: YES

All inspections of P24423Work order 651742

Observations (18)

DistanceCodeObservation
100.9TFC—
30.2RFJ—
0AMH29 0386
300.3CM—
303.9AMH29 0385
199.8TFC—
4.6RFJ—
98.4TF—
266.1TFC—
49.7TFC—
55.9TB—
3.9CM—
248.1TF—
0MWL—
152.1TFC—
0MWM—
197.5TF—
4.6TF—

Properties (5)

additional_info
SC345550
custom_field_two
3
customer
LACSD
datetime
2017-08-23T00:17:15-07:00
is_lateral_inspection
false
