Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 8, 2017, 05:38 AM

  • 03 0023_03 0022_07082017_225229.mp4

Date
08/07/2017
W/O
646534
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00366
PipeID
P05042
Time
10:38 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4678
Sewer Name
03 LOS COYOTES DIAGONAL TRUNK
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
13
Purpose
Routine Assessment
Project
WO_646534_TV03011_JUL2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
03 0023
Downstream MH
03 0022
Dir. of Survey
Downstream
Length Surveyed
240.7 ft.
Total Length
240.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 03 0023 to 03 0022
MH: 03 0023MH: 03 0022downstream0 ft. AMH - Upstream Manhole, Survey Begins - 03 00230 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start10.5 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"60.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"110.4 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"160.8 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"215.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 4"240.7 ft. MGO - General Observation - CONNECTION AT 9 OC240.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish240.7 ft. AMH - Downstream Manhole, Survey Ends - 03 0022

Observation photos (1)

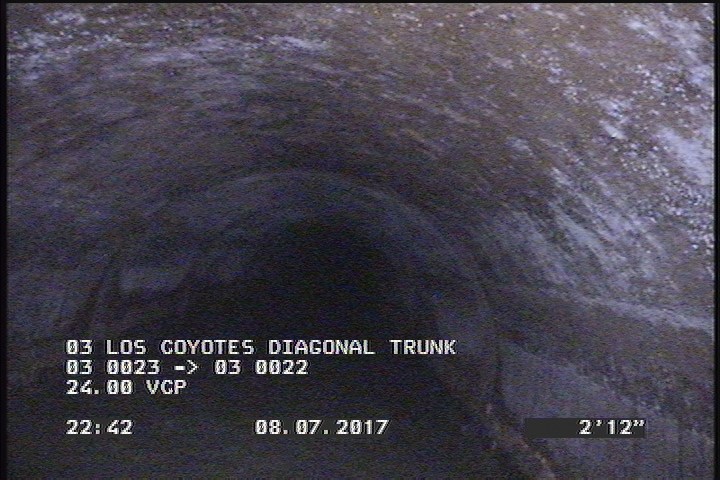

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P05042Work order 646534

Observations (12)

DistanceCodeObservation
3DAGS—
240.7MGOCONNECTION AT 9 OC
0AMH03 0023
60.7TB—
240.7DAGS—
110.4TB—
215.7TB—
240.7AMH03 0022
10.5TB—
0MWL—
0MWM—
160.8TB—

Properties (6)

additional_info
SC345616
custom_field_two
4
customer
LACSD
datetime
2017-08-07T22:38:50-07:00
documentation
PROPIPE
is_lateral_inspection
false
