Wastewater/Activity/PacpInspection/1.0Aug 3, 2017, 09:18 AM
03 0035_03 0034_03082017_023149.mp4
- Date
- 08/03/2017
- W/O
- 646910
- Weather
- Dry
- Operator/Surveyor
- B. FUGATE
- Sewer ID
- Z00366
- PipeID
- P05054
- Time
- 2:18 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4769
- Sewer Name
- 03 LOS COYOTES DIAGONAL TRUNK
- City
- LAKEWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_646534_TV03011_JUL2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 03 0035
- Downstream MH
- 03 0034
- Dir. of Survey
- Downstream
- Length Surveyed
- 351.1 ft.
- Total Length
- 351.1 ft.
- Structural Index
- 2
- Structural Quick
- 3211
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2F00
- O&M Rating
- 66
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 73
Observation photos (4)

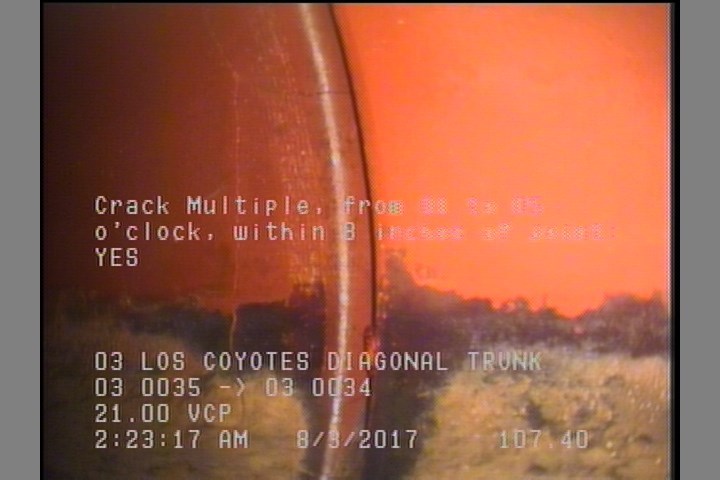

107.4 ft. - Crack Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES

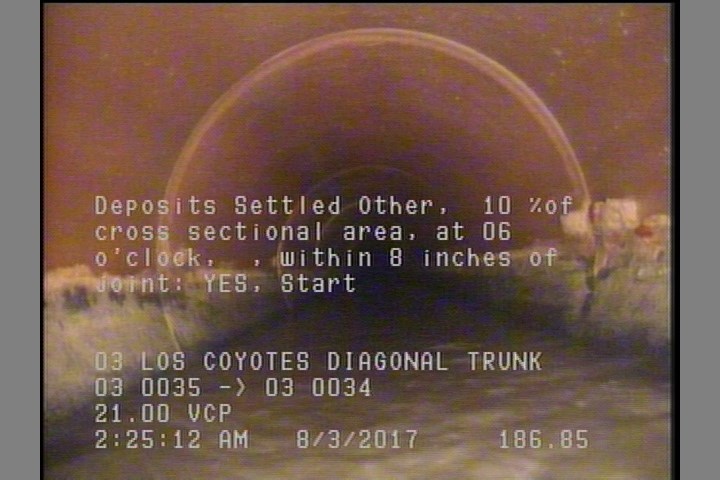

186.9 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

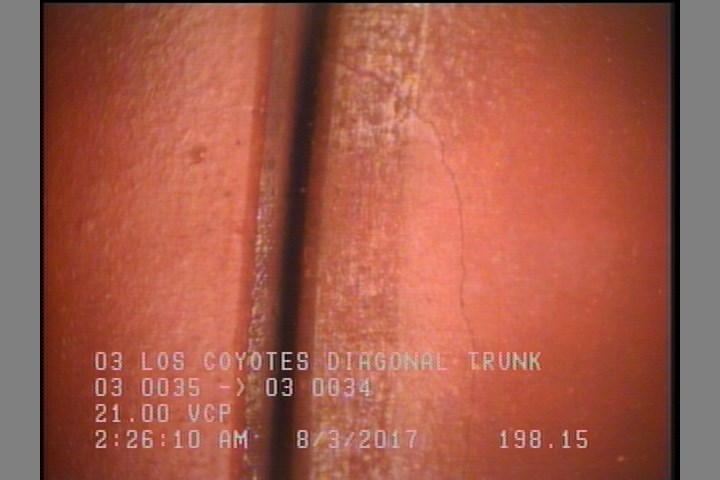

198.2 ft. - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

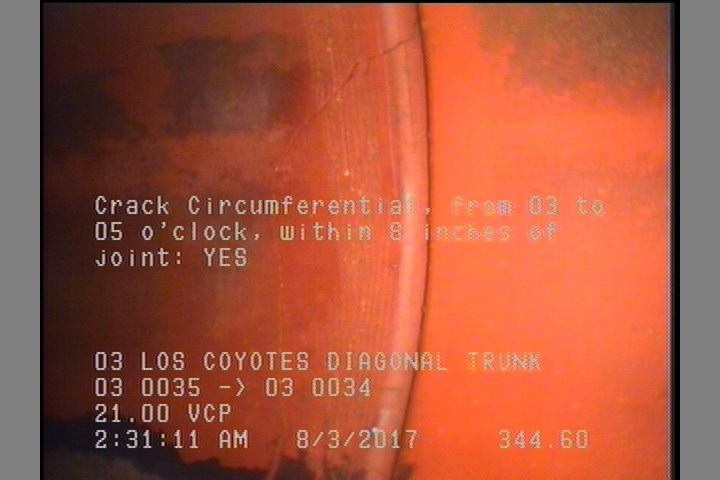

344.6 ft. - Crack Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 186.9 | DSZ | — |
| 0 | AMH | 03 0035 |
| 0 | MWL | — |
| 0 | MWM | — |
| 107.4 | CM | — |
| 344.6 | CC | — |
| 198.2 | CM | — |
| 351.1 | AMH | 03 0034 |
| 323.6 | TF | — |
| 351.1 | DSZ | — |
Properties (6)
- additional_info
- SC345529
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-03T02:18:40-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
