Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 27, 2017, 07:12 PM

  • 03 0070_03 0069_15082017_160228.mp4

Date
07/27/2017
W/O
1590881
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00366
PipeID
P05091
Time
12:12 PM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3993
Sewer Name
03 LOS COYOTES DIAGONAL TRUNK
City
CERRITOS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
05
Purpose
Routine Assessment
Project
WO_646534_TV03011_JUL2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
03 0070
Downstream MH
03 0069
Dir. of Survey
Downstream
Length Surveyed
265.4 ft.
Total Length
265.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2J00
O&M Rating
112
Overall Index
2
Overall Quick
—
Overall Rating
112
Pipe schematic from manhole 03 0070 to 03 0069
MH: 03 0070MH: 03 0069downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 03 00703.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start3.1 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES34.1 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES54.1 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES70 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6"175.1 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6"178.1 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES258.1 ft. MMC - Material Change, Transite262 ft. MMC - Material Change, Vitrified clay pipe262 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish265 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK265.4 ft. AMH - Downstream Manhole, Survey Ends - 03 0069

Observation photos (7)

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    3.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

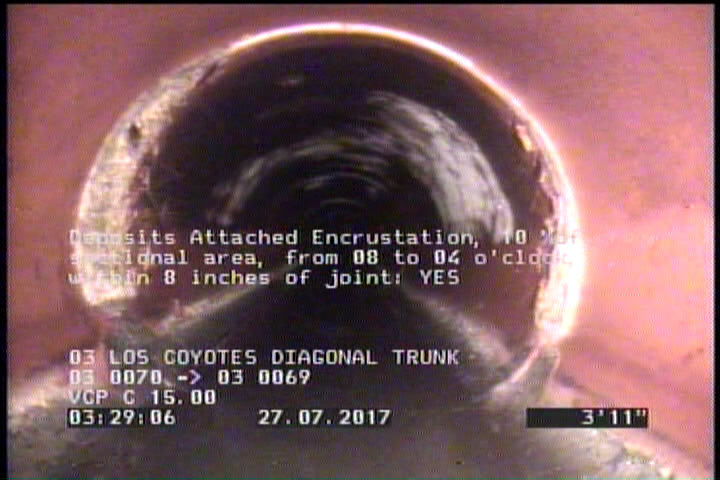

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

    3.1 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

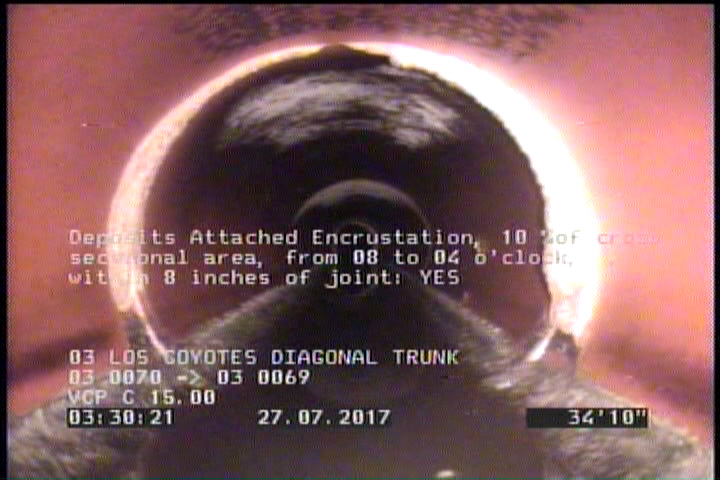

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

    34.1 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

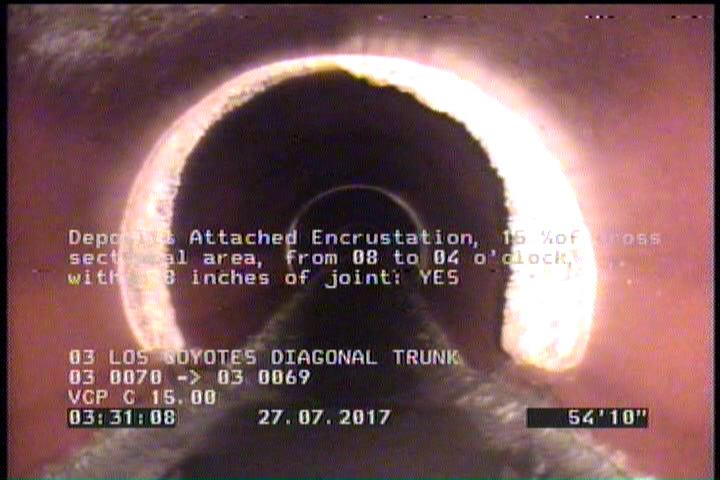

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

    54.1 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

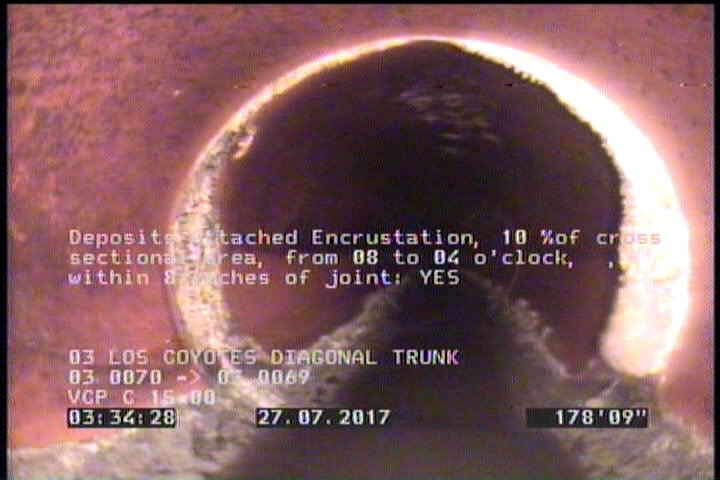

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

    178.1 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

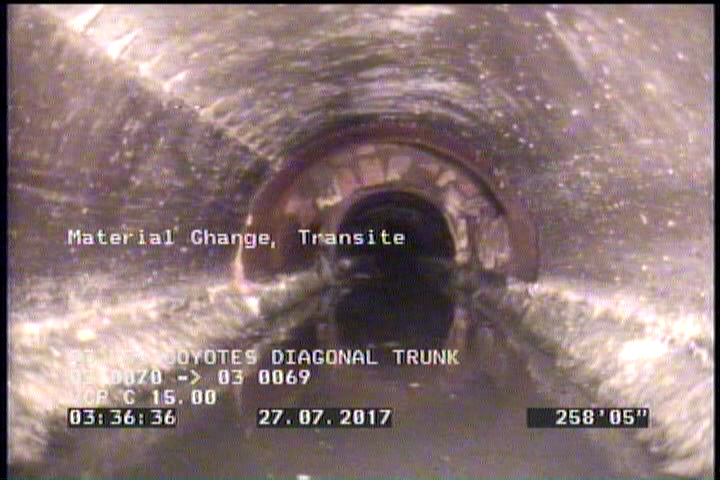

  • Material Change, Transite

    258.1 ft. - Material Change, Transite

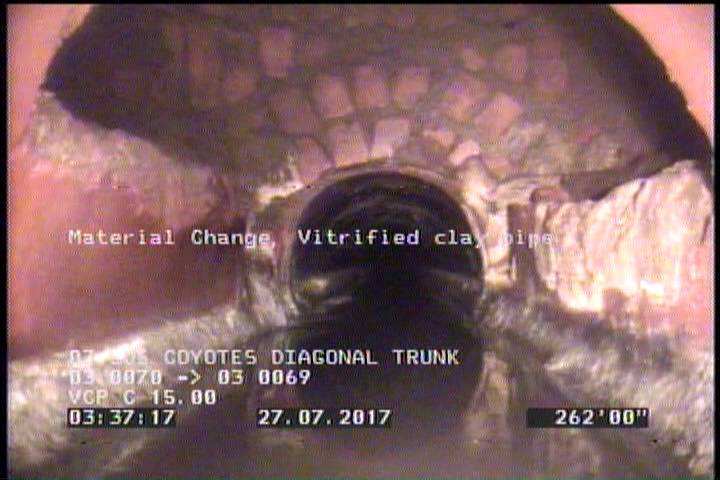

  • Material Change, Vitrified clay pipe

    262 ft. - Material Change, Vitrified clay pipe

All inspections of P05091Work order 1590881

Observations (15)

DistanceCodeObservation
0MWL—
3.1DAGS—
70TB—
178.1DAE—
34.1DAE—
0MWM—
262MMC—
0AMH03 0070
262DAGS—
258.1MMC—
265.4AMH03 0069
265MGOCONNECTION AT MH 9 O'CLOCK
175.1TB—
3.1DAE—
54.1DAE—

Properties (6)

additional_info
SC345560
custom_field_two
4
customer
LACSD
datetime
2017-07-27T12:12:26-07:00
documentation
PROPIPE
is_lateral_inspection
false
