Wastewater/Activity/PacpInspection/1.0Jan 9, 2017, 11:51 AM
F 0288_F 0287 _01092017_040535.mp4
- Date
- 01/09/2017
- W/O
- 613620
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00931
- PipeID
- P20327
- Time
- 3:51 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4118
- Sewer Name
- F JOINT OUTFALL F - UNIT 5 RELIEF
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_613620_TV02234_JAN2017
- Sewer Type
- Siphon
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- F 0287
- Downstream MH
- F 0288
- Dir. of Survey
- Upstream
- Length Surveyed
- 49.9 ft.
- Total Length
- 49.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2A00
- O&M Rating
- 20
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 20
Observation photos (2)

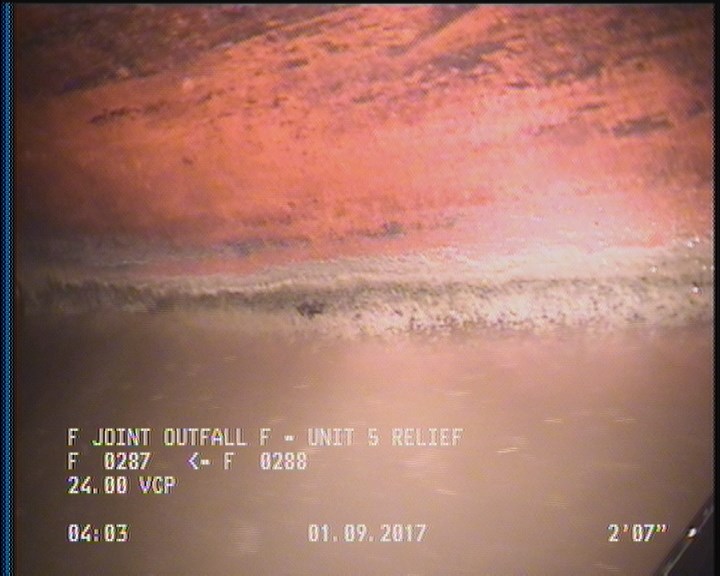

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

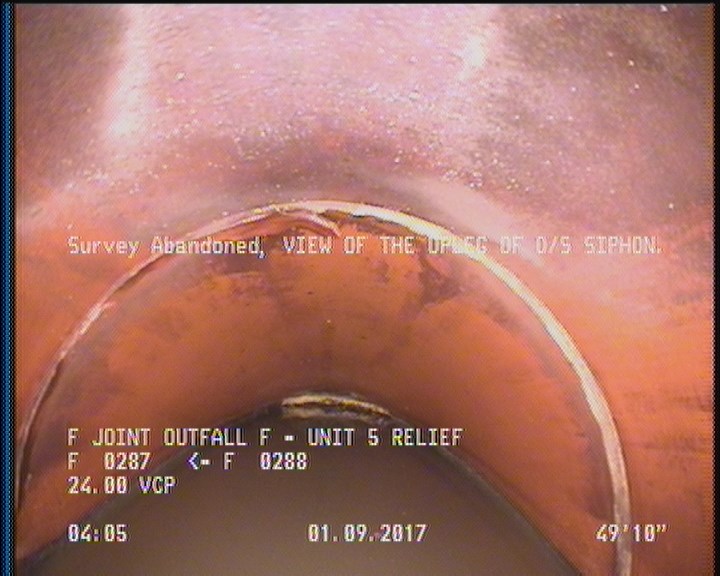

49.9 ft. - Survey Abandoned - VIEW OF THE UPLEG OF D/S SIPHON.
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 49.9 | MSA | VIEW OF THE UPLEG OF D/S SIPHON. |
| 0 | AMH | F 0287 |
| 49.9 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWL | — |
Properties (7)
- additional_info
- SC306705
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-01-09T03:51:35-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 32789
