Wastewater/Activity/PacpInspection/1.0Jan 24, 2017, 09:24 AM
F 0160_F 0153 _01242017_013814.mpg
- Date
- 01/24/2017
- W/O
- 613576
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00043
- PipeID
- P10295
- Time
- 1:24 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4089
- Sewer Name
- F JOINT OUTFALL F - UNIT 7A
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- WO_613576_TV02202_JAN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 51 in.
- Width
- 51 in.
- Upstream MH
- F 0160
- Downstream MH
- F 0153
- Dir. of Survey
- Downstream
- Length Surveyed
- 32.6 ft.
- Total Length
- 32.6 ft.
- Structural Index
- 3
- Structural Quick
- 5135
- Structural Rating
- 20
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 20
Observation photos (2)

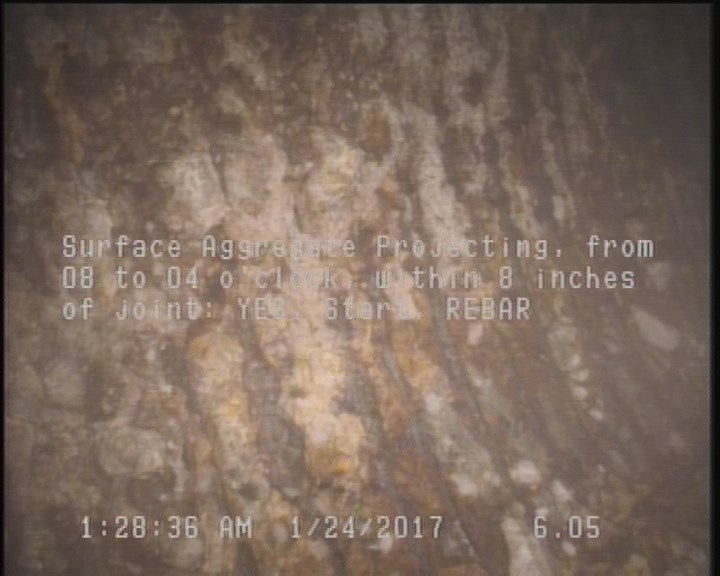

6.1 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

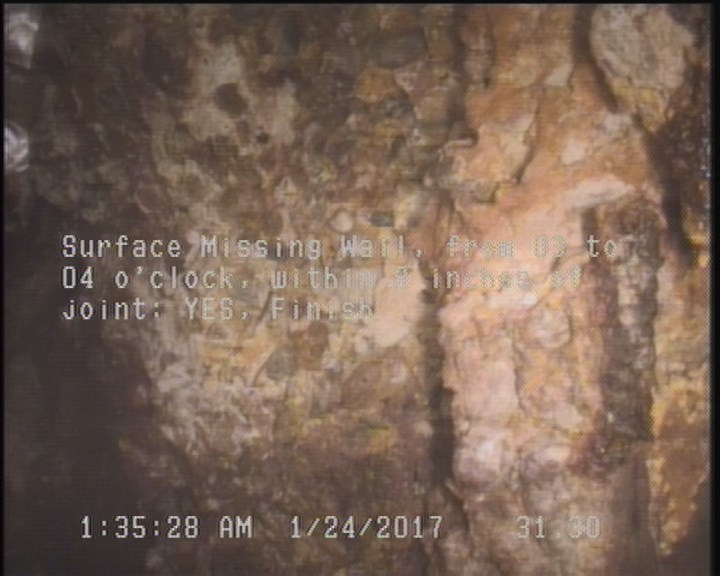

25 ft. - Surface Reinforcement Visible, from 03 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 32.6 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 31.3 | SAV | REBAR VISIBLE |
| 31 | SRV | — |
| 6.1 | SAV | — |
| 26.6 | MGO | MAGNESIUM H.O. START |
| 32.6 | AMH | F 0153 |
| 25 | SRV | — |
| 0 | AMH | F 0160 |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK ACTIVE |
| 32.6 | MGO | CONNECTION AT MH 9 O'CLOCK ACTIVE |
Properties (7)
- additional_info
- SC318630
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-01-24T01:24:36-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 34088
