Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 6, 2016, 06:52 AM

  • 16 0275_16 0274_10052016_235336.mp4

Date
10/05/2016
W/O
592155
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00652
PipeID
P13317
Time
11:52 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3775
Sewer Name
16 CHAPEL AVENUE TRUNK, SECTION 1
City
SOUTH PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
17
Purpose
Routine Assessment
Project
WO_592155_TV16001_SEP2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
16 0275
Downstream MH
16 0274
Dir. of Survey
Downstream
Length Surveyed
218.4 ft.
Total Length
218.4 ft.
Structural Index
3
Structural Quick
3600
Structural Rating
18
O&M Index
2
O&M Quick
2I00
O&M Rating
102
Overall Index
2
Overall Quick
—
Overall Rating
120
Pipe schematic from manhole 16 0275 to 16 0274
MH: 16 0275MH: 16 0274downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 02750 ft. MWM - Water Mark, 35 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start25 ft. MWLS - Water Level, Sag in pipe, 50 %of cross sectional area, Start34.1 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start53.4 ft. MWLS - Water Level, Sag in pipe, 50 %of cross sectional area, Finish66.8 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish73.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"85.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"97.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"112.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"124.1 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - ROOTS136.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"148 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"162.6 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"174.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"189.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"201.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"218.4 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK218.4 ft. AMH - Downstream Manhole, Survey Ends - 16 0274218.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish218.4 ft. MGO - General Observation - ROACHES IN MH

Observation photos (3)

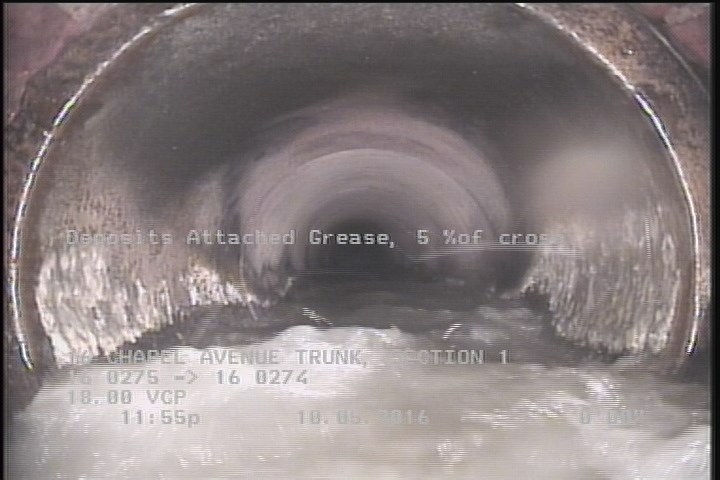

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

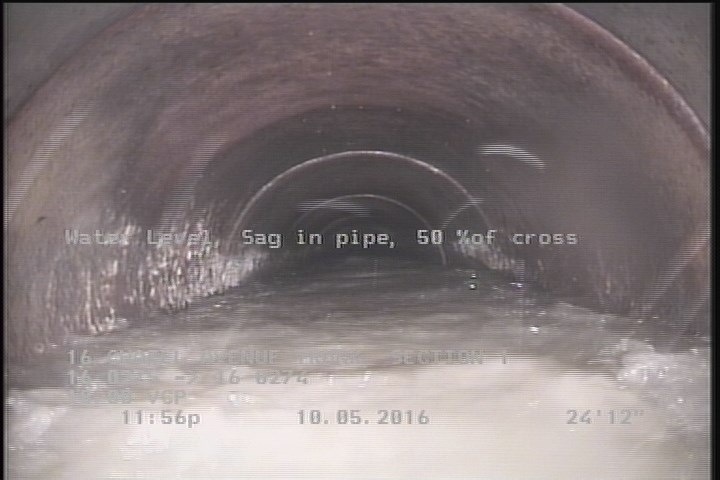

  • Water Level, Sag in pipe, 50 %of cross sectional area, Start

    25 ft. - Water Level, Sag in pipe, 50 %of cross sectional area, Start

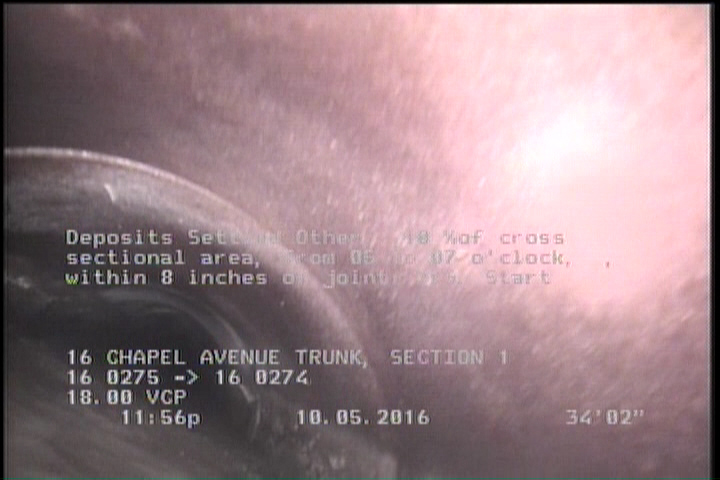

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    34.1 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

All inspections of P13317Work order 592155

Observations (23)

DistanceCodeObservation
162.6TBA—
2DAGS—
218.4MGOACTIVE CONNECTION AT MH 9 O'CLOCK
174.5TFC—
201.2TFA—
53.4MWLS—
112.8TFC—
148TFC—
189.3TFC—
85.8TFC—
0MWL—
218.4AMH16 0274
34.1DSZ—
97.3TFA—
136.1TFC—
25MWLS—
218.4DAGS—
73.7TFC—
0AMH16 0275
124.1TFDROOTS
0MWM—
218.4MGOROACHES IN MH
66.8DSZ—

Properties (6)

additional_info
SC306312
custom_field_two
4
customer
LACSD
datetime
2016-10-05T23:52:54-07:00
documentation
PRO PIPE
is_lateral_inspection
false
