Wastewater/Activity/PacpInspection/1.0Oct 5, 2016, 10:55 AM
16 0262_16 0261 _10052016_035625.mp4
- Date
- 10/05/2016
- W/O
- 592155
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00652
- PipeID
- P13309
- Time
- 3:55 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3774
- Sewer Name
- 16 CHAPEL AVENUE TRUNK, SECTION 1
- City
- SAN MARINO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_592155_TV16001_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 16 0262
- Downstream MH
- 16 0261
- Dir. of Survey
- Downstream
- Length Surveyed
- 236.7 ft.
- Total Length
- 236.7 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 3
- O&M Quick
- 4121
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

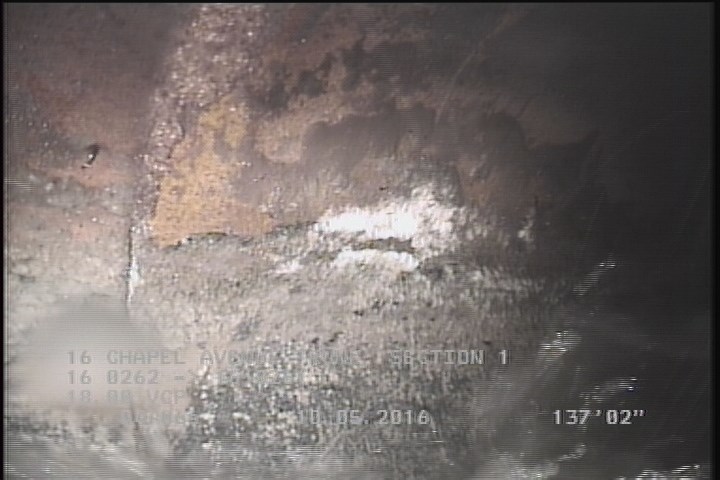

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

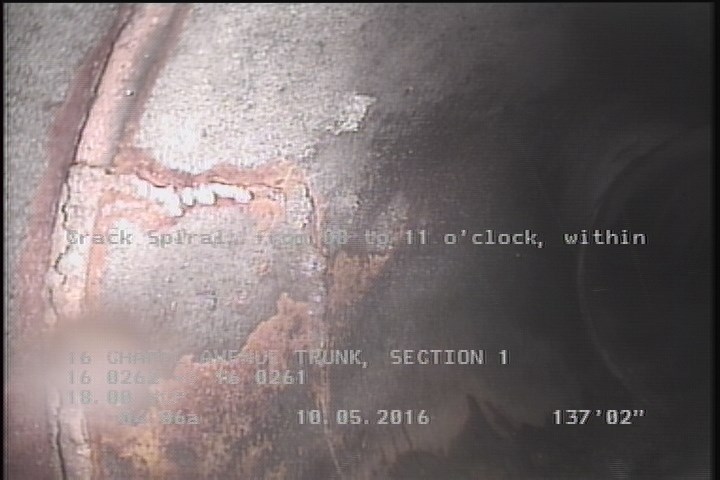

137.2 ft. - Crack Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES

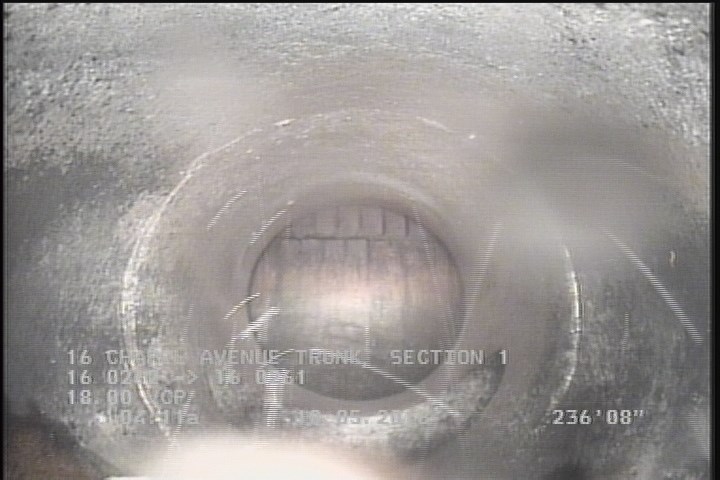

236.7 ft. - Downstream Manhole, Survey Ends - 16 0261
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 82 | TFA | — |
| 58.1 | TFC | — |
| 112.7 | TFC | — |
| 236.7 | AMH | 16 0261 |
| 28.7 | TFA | — |
| 137.2 | CS | — |
| 236.7 | TFA | DROP CONNECTION |
| 31.6 | TFC | — |
| 178.2 | TFC | — |
| 236.7 | DAGS | — |
| 0 | AMH | 16 0262 |
| 0 | MWL | — |
| 0 | MWM | — |
| 147.9 | TFA | — |
| 0 | DAGS | — |
| 5.7 | TFA | — |
| 142.4 | TFA | — |
Properties (6)
- additional_info
- SC306311
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-05T03:55:25-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
