Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 19, 2016, 09:28 AM

  • 16 0197_16 0196_20161019_153749.mp4

Date
10/19/2016
W/O
591684
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00647
PipeID
P13242
Time
2:28 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3857
Sewer Name
16 ARROYO SECO TRUNK, SECTION 4
City
SAN MARINO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
17
Purpose
Routine Assessment
Project
WO_591684_TV16012_SEP2016
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
16 0197
Downstream MH
16 0196
Dir. of Survey
Downstream
Length Surveyed
179.5 ft.
Total Length
179.5 ft.
Structural Index
3
Structural Quick
3F00
Structural Rating
105
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
105
Pipe schematic from manhole 16 0197 to 16 0196
MH: 16 0197MH: 16 0196downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 16 01970 ft. MWM - Water Mark, 30 %of cross sectional area2.5 ft. MGO - General Observation - Magnesium hydroxide coating start2.5 ft. SAP - Surface Aggregate Projecting, from 11 to 01 o'clock, within 8 inches of joint: YES, Start82.3 ft. SAP - Surface Aggregate Projecting, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish82.3 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start102 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 8"162.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 8"177.2 ft. MGO - General Observation - Magnesium hydroxide coating finish177.2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish179.5 ft. AMH - Downstream Manhole, Survey Ends - 16 0196

Observation photos (2)

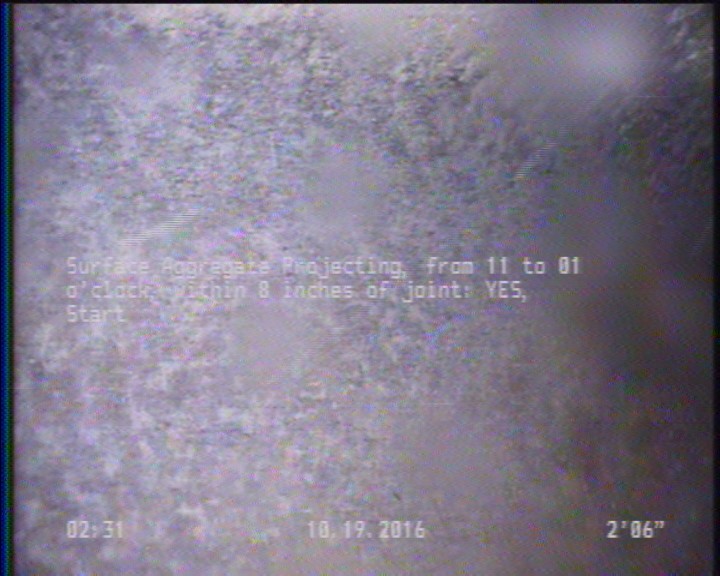

  • Surface Aggregate Projecting, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

    2.5 ft. - Surface Aggregate Projecting, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

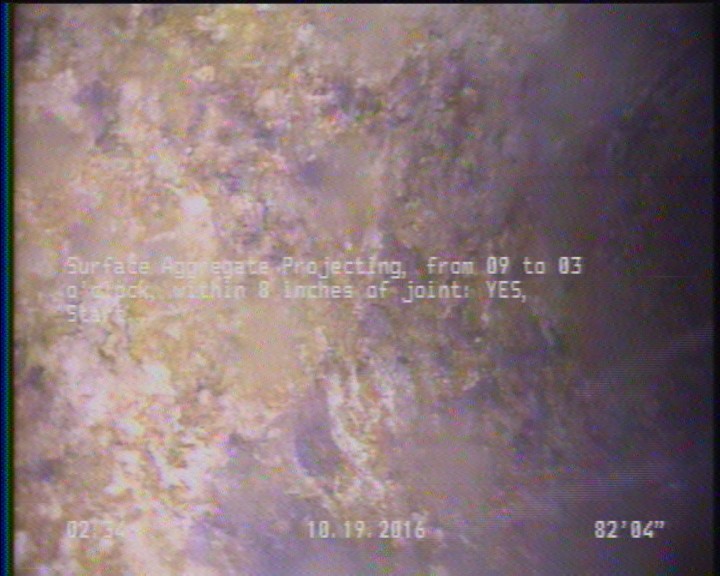

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    82.3 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P13242Work order 591684

Observations (13)

DistanceCodeObservation
0MGOCOCKROACHES IN MANHOLE
177.2MGOMagnesium hydroxide coating finish
179.5AMH16 0196
162.6TFA—
2.5MGOMagnesium hydroxide coating start
0MWL—
0AMH16 0197
177.2SAP—
82.3SAP—
82.3SAP—
0MWM—
2.5SAP—
102TFA—

Properties (6)

additional_info
SC301936
custom_field_two
3
customer
LACSD
datetime
2016-10-19T02:28:00-07:00
documentation
PRO PIPE
is_lateral_inspection
false
