Wastewater/Activity/PacpInspection/1.0Sep 30, 2016, 09:38 AM
22 1238_22 1298 _09302016_023819.mp4
- Date
- 09/30/2016
- W/O
- 591676
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00806
- PipeID
- P16495
- Time
- 2:38 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3724
- Sewer Name
- 22 DISTRICT #22 MAIN RELIEF TRUNK
- City
- COVINA, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_591676_TV22107_SEP2016
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 22 1238
- Downstream MH
- 22 1298
- Dir. of Survey
- Downstream
- Length Surveyed
- 419.6 ft.
- Total Length
- 419.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

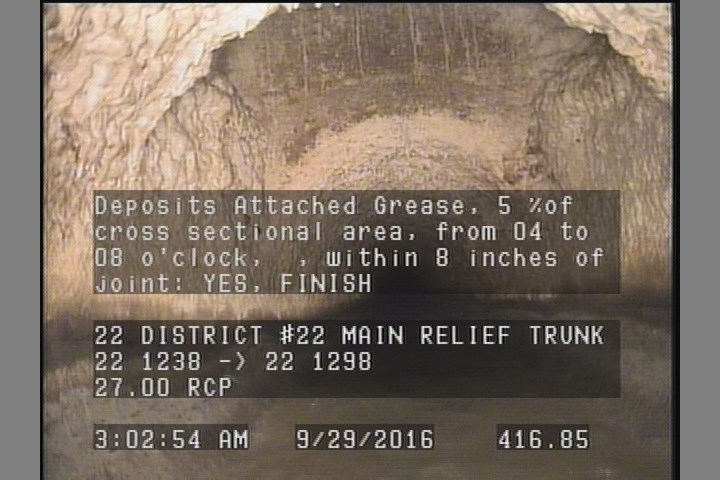

416.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - FINISH
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | 22 1238 |
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH 3 ACTIVE |
| 2.5 | MGO | MAG. H.OX START 75% |
| 416.9 | DAGS | FINISH |
| 419.6 | AMH | 22 1298 |
| 0 | MGO | CONNECTION AT MH 9 ACTIVE |
Properties (7)
- additional_info
- SC303711
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-30T02:38:00-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
- year_laid
- 30330
