Wastewater/Activity/PacpInspection/1.0Oct 3, 2016, 10:19 AM
16 0048_16 0047 _10032016_031937.mp4
- Date
- 10/03/2016
- W/O
- 591626
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00639
- PipeID
- P13061
- Time
- 3:19 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3772
- Sewer Name
- 16 ALLEN AVENUE TRUNK, SECTS 1,2,&4
- City
- SAN GABRIEL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_591626_TV16113_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- 16 0047
- Downstream MH
- 16 0048
- Dir. of Survey
- Upstream
- Length Surveyed
- 267.9 ft.
- Total Length
- 267.9 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (3)

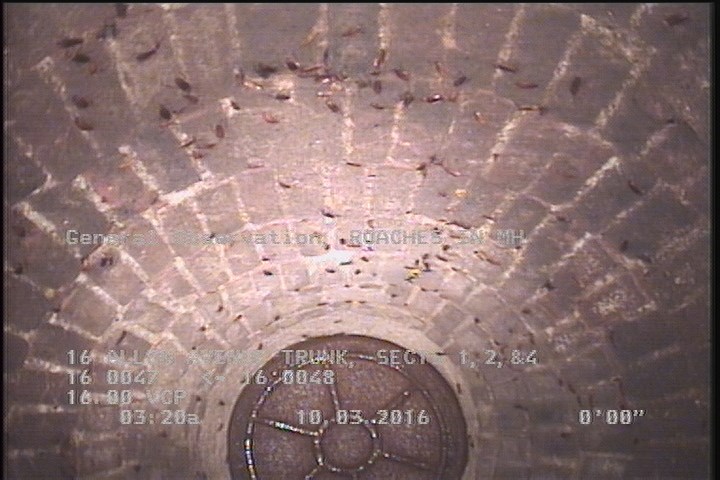

0 ft. - General Observation - ROACHES IN MH

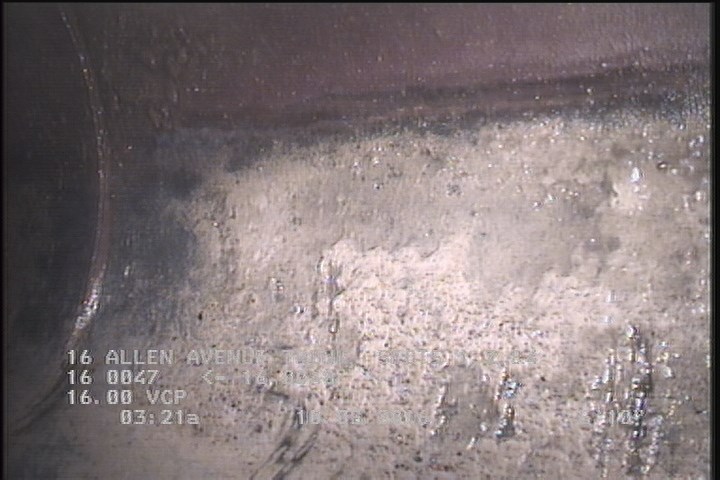

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

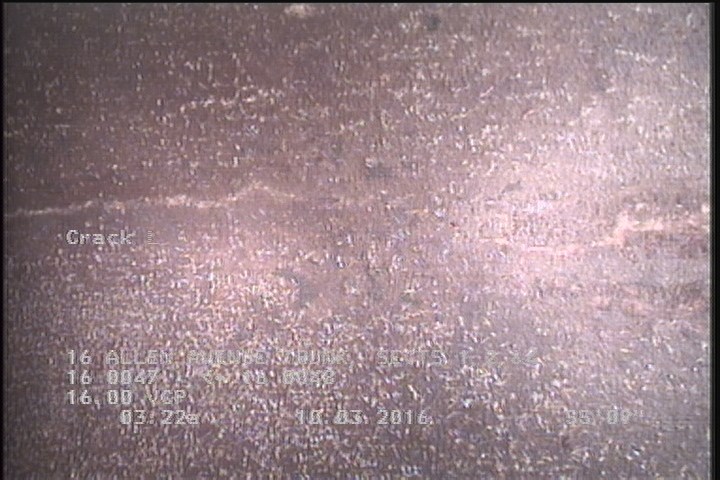

55.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 267.9 | AMH | 16 0048 |
| 267.9 | DAGS | — |
| 55.6 | CL | — |
| 0 | MGO | ROACHES IN MH |
| 0 | AMH | 16 0047 |
| 0 | MWM | — |
| 2 | DAGS | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC306309
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-03T03:19:15-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
