Wastewater/Activity/PacpInspection/1.0May 12, 2017, 05:50 AM
- Date
- 05/11/2017
- W/O
- 635589
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00708
- PipeID
- P14699
- Time
- 10:50 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4493
- Sewer Name
- 18 SO WHITTIER OUTFALL TR, SECT 6
- City
- SANTA FE SPRINGS
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_635589_TV18110_MAY2017
- Sewer Type
- G
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 18 0835
- Downstream MH
- 18 0836
- Dir. of Survey
- Upstream
- Length Surveyed
- 480.5 ft.
- Total Length
- 480.5 ft.
- Structural Index
- 3
- Structural Quick
- 3500
- Structural Rating
- 15
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (2)

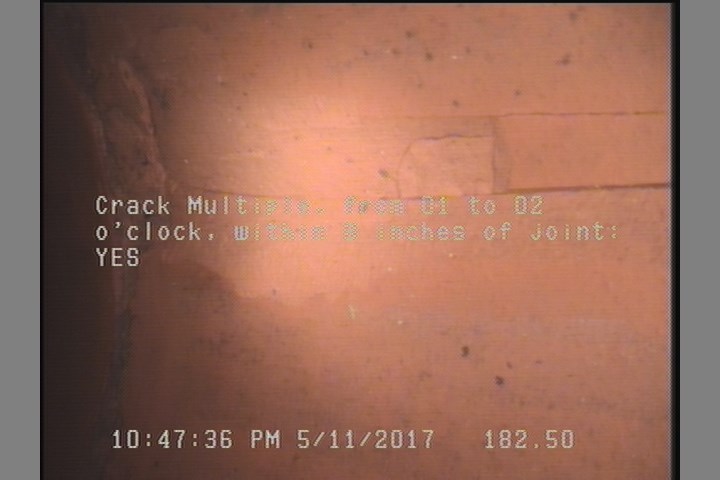

182.5 ft. - Crack Multiple, from 01 to 02 o'clock, within 8 inches of joint: YES

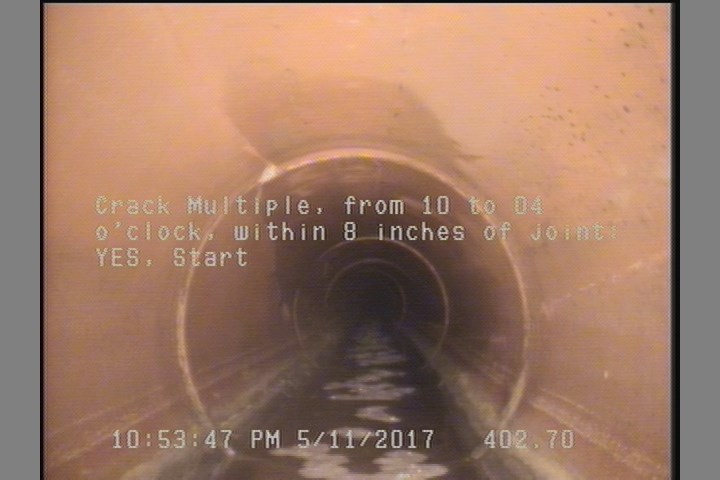

402.7 ft. - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 480.5 | AMH | 18 0836 |
| 402.7 | CM | — |
| 267.7 | TFC | — |
| 480.5 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 421.2 | CM | — |
| 0 | MWM | — |
| 182.5 | CM | — |
| 0 | AMH | 18 0835 |
| 0 | MWL | — |
| 369.2 | TFC | — |
| 65.6 | TFC | — |
Properties (5)
- additional_info
- SC345302
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-11T22:50:00-07:00
- is_lateral_inspection
- false
