Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 10, 2017, 09:51 AM

  • 18 0364_18 0363 _10052017_025209.mp4

Date
05/10/2017
W/O
630481
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00714
PipeID
P14198
Time
2:51 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4492
Sewer Name
18 WASHINGTON BOULEVARD TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
09
Purpose
Routine Assessment
Project
WO_635481_TV18060_MAY2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0364
Downstream MH
18 0363
Dir. of Survey
Downstream
Length Surveyed
108.7 ft.
Total Length
108.7 ft.
Structural Index
2
Structural Quick
3223
Structural Rating
12
O&M Index
2
O&M Quick
412C
O&M Rating
46
Overall Index
2
Overall Quick
—
Overall Rating
58
Pipe schematic from manhole 18 0364 to 18 0363
MH: 18 0364MH: 18 0363downstream0 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 18 03640 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MWL - Water Level, 35 %of cross sectional area3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start11.6 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES18 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"19.7 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES34 ft. CM - Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES49 ft. CM - Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES66.1 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"83.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES108.7 ft. AMH - Downstream Manhole, Survey Ends - 18 0363108.7 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK108.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (6)

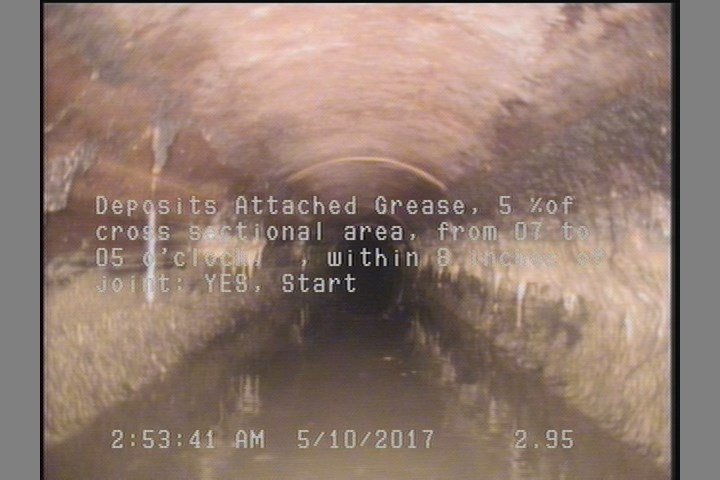

  • Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

    3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

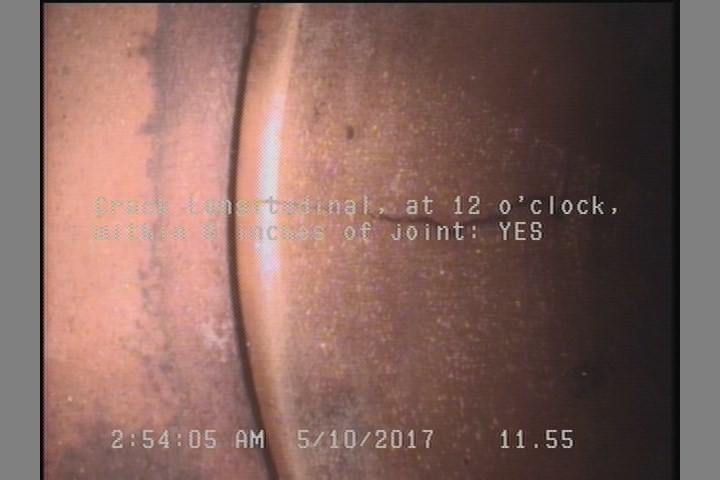

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    11.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

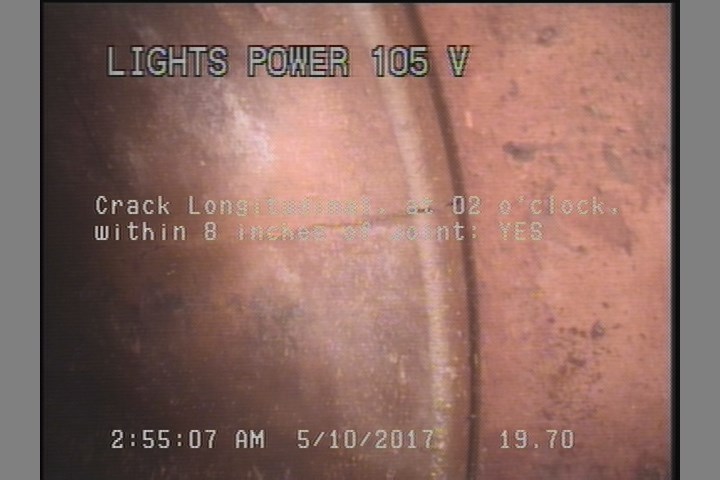

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    19.7 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

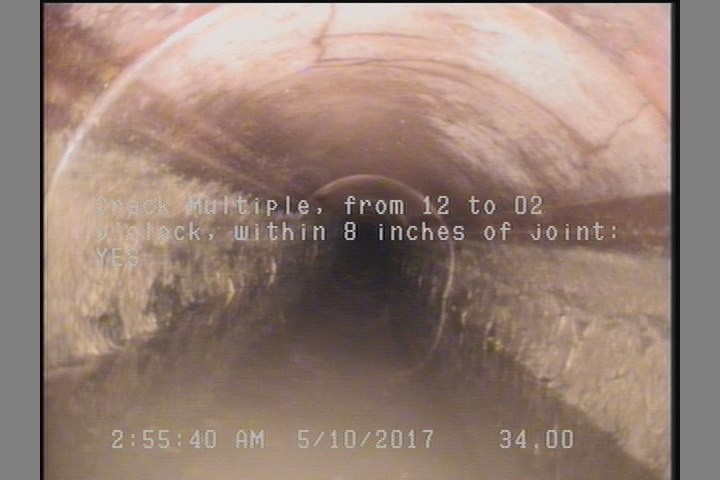

  • Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

    34 ft. - Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

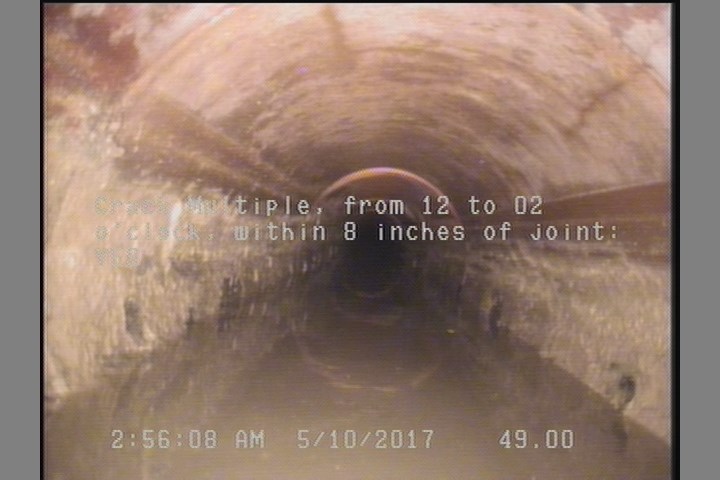

  • Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

    49 ft. - Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

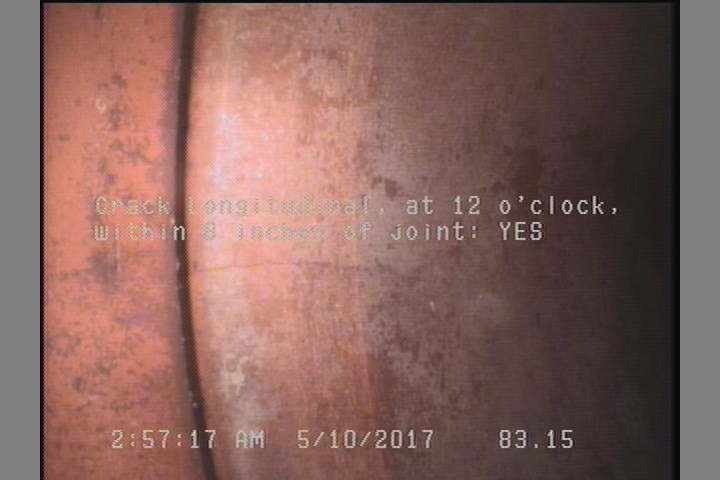

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    83.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P14198Work order 630481

Observations (16)

DistanceCodeObservation
83.2CL—
0MGOCAPPED LATERAL 9 O'CLOCK @ MH
0MGOCONNECTION AT MH 3 O'CLOCK
0AMH18 0364
108.7AMH18 0363
11.6CL—
66.1TFC—
0MWM—
3DAGS—
0MWL—
108.7MGOCONNECTION AT MH 9 O'CLOCK
49CM—
34CM—
18TFC—
108.7DAGS—
19.7CL—

Properties (5)

additional_info
SC345301
custom_field_two
3
customer
LACSD
datetime
2017-05-10T02:51:37-07:00
is_lateral_inspection
false
