Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 10, 2017, 09:58 AM

  • 18 0363_18 0362 _10052017_025938.mp4

Date
05/10/2017
W/O
630481
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00714
PipeID
P14197
Time
2:58 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4492
Sewer Name
18 WASHINGTON BOULEVARD TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
09
Purpose
Routine Assessment
Project
WO_635481_TV18060_MAY2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
18 0363
Downstream MH
18 0362
Dir. of Survey
Downstream
Length Surveyed
183.8 ft.
Total Length
183.8 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 18 0363 to 18 0362
MH: 18 0363MH: 18 0362downstream0 ft. MWM - Water Mark, 65 %of cross sectional area0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 03630 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK10.5 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"58.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"90.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES95.6 ft. CM - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES111.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"159.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"183.8 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH183.8 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK183.8 ft. AMH - Downstream Manhole, Survey Ends - 18 0362

Observation photos (2)

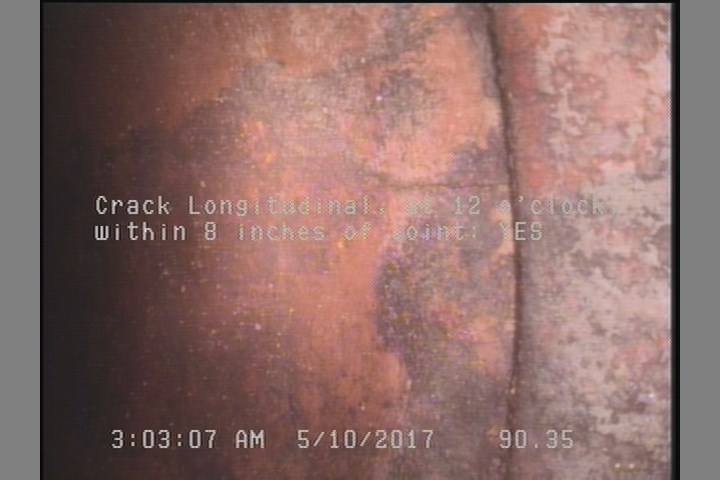

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    90.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

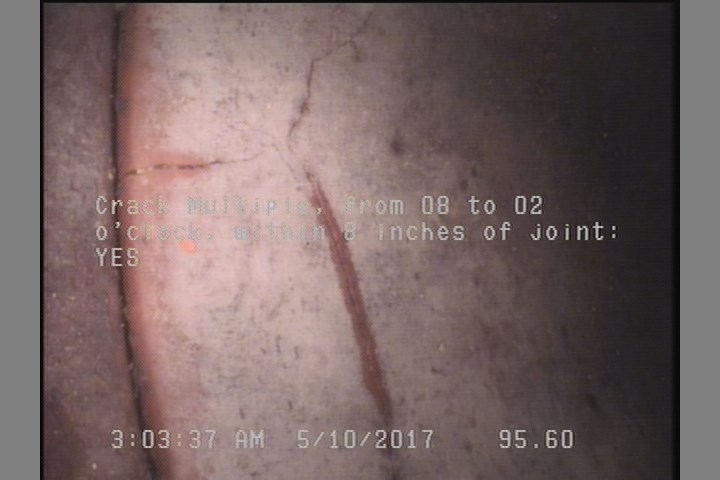

  • Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES

    95.6 ft. - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES

All inspections of P14197Work order 630481

Observations (13)

DistanceCodeObservation
183.8MGOCAPPED LATERAL 9 O'CLOCK @ MH
95.6CM—
183.8MGOCONNECTION AT MH 3 O'CLOCK
58.4TF—
159.9TFC—
90.4CL—
0MWM—
0MWL—
0AMH18 0363
10.5TFC—
0MGOCONNECTION AT MH 9 O'CLOCK
111.8TFC—
183.8AMH18 0362

Properties (5)

additional_info
SC345301
custom_field_two
4
customer
LACSD
datetime
2017-05-10T02:58:43-07:00
is_lateral_inspection
false
