Wastewater/Activity/PacpInspection/1.0May 3, 2017, 11:11 AM
B 0234_B 0215 _03052017_041208.mp4
- Date
- 05/03/2017
- W/O
- 635407
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00077
- PipeID
- P08702
- Time
- 4:11 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4442
- Sewer Name
- B JOINT OUTFALL B - UNIT 1E
- City
- ROSEMEAD
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_635407_TV02153_MAY2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- B 0234
- Downstream MH
- B 0215
- Dir. of Survey
- Downstream
- Length Surveyed
- 154.4 ft.
- Total Length
- 154.4 ft.
- Structural Index
- 3
- Structural Quick
- 3E2D
- Structural Rating
- 144
- O&M Index
- 3
- O&M Quick
- 413E
- O&M Rating
- 91
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 235
Observation photos (3)

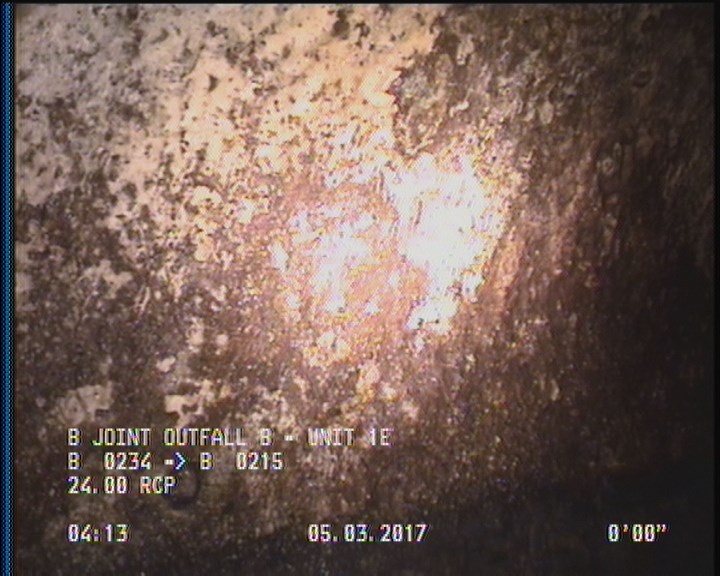

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

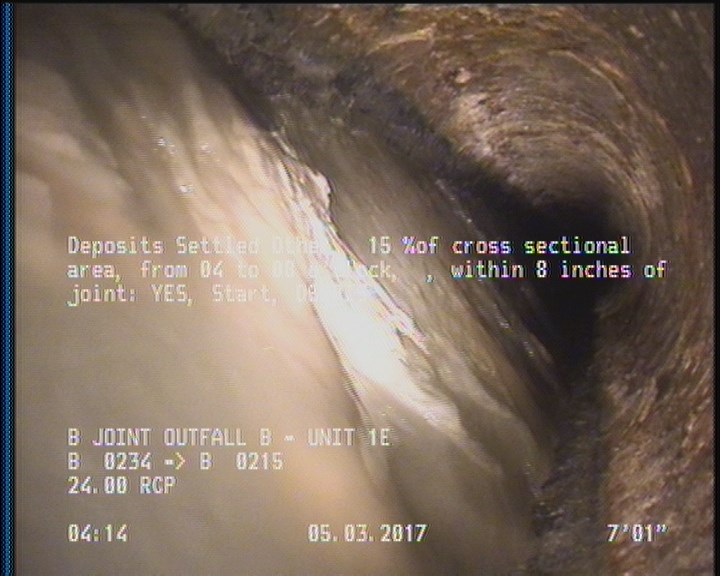

7.1 ft. - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - DEBRIS

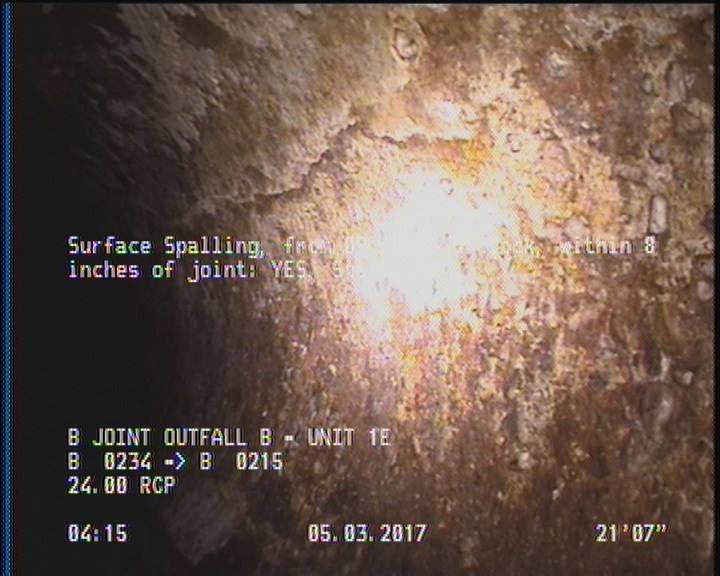

21.5 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 154.4 | SAV | — |
| 0 | MWL | — |
| 7.1 | DSZ | DEBRIS |
| 2 | SAV | — |
| 21.5 | SSS | — |
| 0 | MWM | — |
| 154.4 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 154.4 | SSS | — |
| 0 | AMH | B 0234 |
| 154.4 | DSZ | — |
| 154.4 | AMH | B 0215 |
Properties (5)
- additional_info
- SC345215
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-03T04:11:28-07:00
- is_lateral_inspection
- false
