Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 18, 2017, 06:02 AM

  • 15 0557_15 0556 _17042017_230314.mp4

Date
04/17/2017
W/O
630147
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00629
PipeID
P12486
Time
11:02 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4469
Sewer Name
15 SANTA ANITA OUTFALL TRUNK
City
ARCADIA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Routine Assessment
Project
WO_630147_TV15085_APR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
15 0557
Downstream MH
15 0556
Dir. of Survey
Downstream
Length Surveyed
394.5 ft.
Total Length
394.5 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 15 0557 to 15 0556
MH: 15 0557MH: 15 0556downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 15 05570 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area97.9 ft. RFJ - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES139.8 ft. RFC - Roots Fine Connection, at 09 o'clock139.8 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 6"159.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"249.1 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 6"299.6 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"300.9 ft. CM - Crack Multiple, from 10 to 11 o'clock, within 8 inches of joint: NO339.7 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 6"358.2 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"394.5 ft. AMH - Downstream Manhole, Survey Ends - 15 0556394.5 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (2)

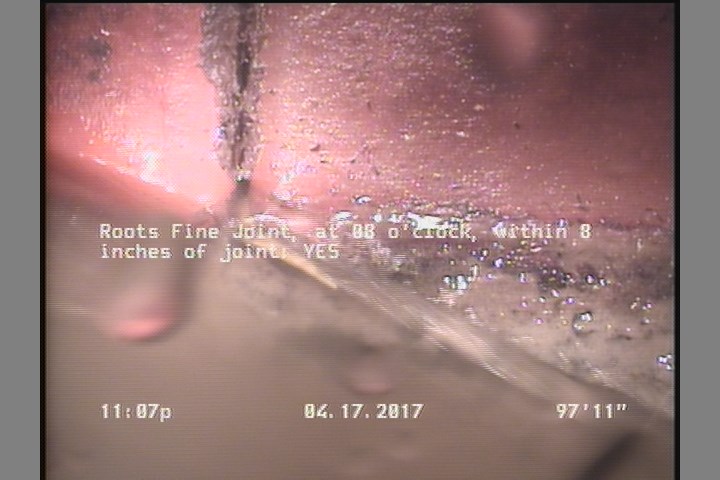

  • Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES

    97.9 ft. - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES

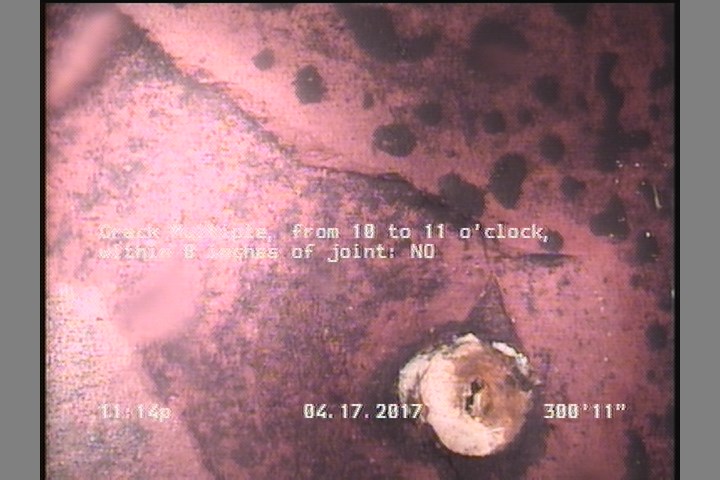

  • Crack Multiple, from 10 to 11 o'clock, within 8 inches of joint: NO

    300.9 ft. - Crack Multiple, from 10 to 11 o'clock, within 8 inches of joint: NO

All inspections of P12486Work order 630147

Observations (15)

DistanceCodeObservation
249.1TB—
339.7TB—
97.9RFJ—
394.5AMH15 0556
139.8RFC—
159.9TB—
0MGOCONNECTION AT MH 3 O'CLOCK
358.2TBA—
300.9CM—
299.6TB—
0AMH15 0557
0MWL—
394.5MGOCONNECTION AT MH 3 O'CLOCK
0MWM—
139.8TB—

Properties (5)

additional_info
SC345178
custom_field_two
4
customer
LACSD
datetime
2017-04-17T23:02:20-07:00
is_lateral_inspection
false
