Wastewater/Activity/PacpInspection/1.0Apr 14, 2017, 09:42 AM
15 0578_15 0577A _14042017_024311.mp4
- Date
- 04/14/2017
- W/O
- 630147
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00629
- PipeID
- P25647
- Time
- 2:42 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4467
- Sewer Name
- 15 SANTA ANITA OUTFALL TRUNK
- City
- ARCADIA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_630147_TV15085_APR2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 15 0578
- Downstream MH
- 15 0577A
- Dir. of Survey
- Downstream
- Length Surveyed
- 135.1 ft.
- Total Length
- 135.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2E11
- O&M Rating
- 57
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 57
Observation photos (2)

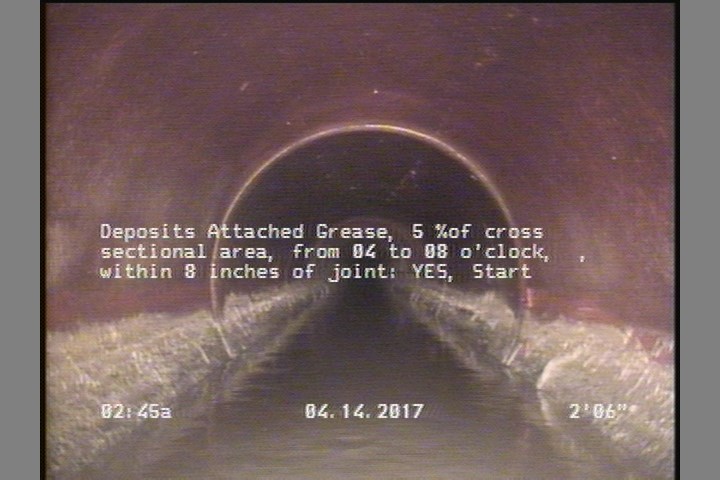

2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

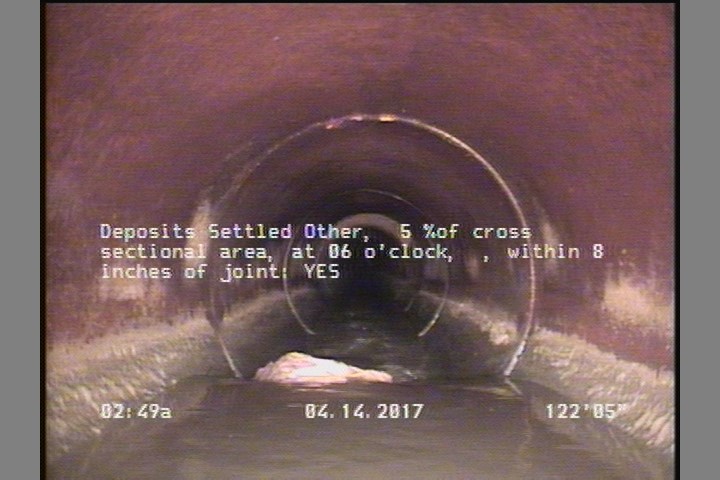

122.4 ft. - Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 86.2 | RFJ | — |
| 0 | MWL | — |
| 122.4 | DSZ | — |
| 0 | AMH | 15 0578 |
| 135.1 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 135.1 | DAGS | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 2.5 | DAGS | — |
| 135.1 | AMH | 15 0577A |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
Properties (5)
- additional_info
- SC345176
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-04-14T02:42:29-07:00
- is_lateral_inspection
- false
