Wastewater/Activity/PacpInspection/1.0Apr 20, 2017, 07:00 AM
15 0524_15 0523 _20042017_000021.mp4
- Date
- 04/20/2017
- W/O
- 630147
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00629
- PipeID
- P12451
- Time
- 12:00 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4471
- Sewer Name
- 15 SANTA ANITA OUTFALL TRUNK
- City
- EL MONTE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_630147_TV15085_APR2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0524
- Downstream MH
- 15 0523
- Dir. of Survey
- Downstream
- Length Surveyed
- 319.7 ft.
- Total Length
- 319.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

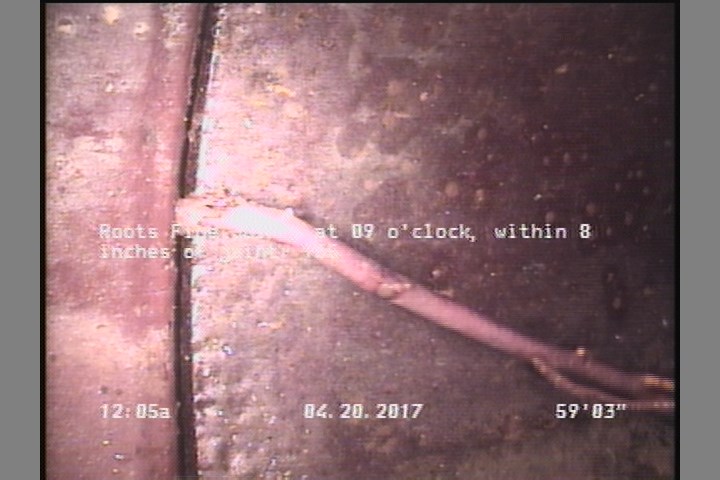

59.2 ft. - Roots Fine Joint, at 09 o'clock, within 8 inches of joint: YES

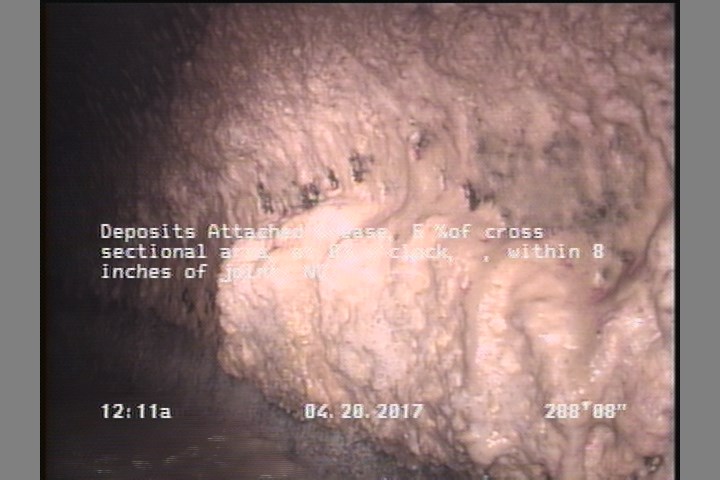

288.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 03 o'clock, , within 8 inches of joint: NO
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 288.6 | DAGS | — |
| 0 | AMH | 15 0524 |
| 288.8 | TBA | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 319.7 | AMH | 15 0523 |
| 59.2 | RFJ | — |
| 0 | MGO | CONNECTION AT MH 4 O'CLOCK |
| 221 | TBA | — |
| 319.7 | MGO | CONNECTION AT MH 3 O'CLOCK |
Properties (5)
- additional_info
- SC345180
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-04-20T00:00:07-07:00
- is_lateral_inspection
- false
