Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 21, 2017, 10:33 AM

  • 15 0484_15 0483 _21042017_033354.mp4

Date
04/21/2017
W/O
630147
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00629
PipeID
P12409
Time
3:33 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4472
Sewer Name
15 SANTA ANITA OUTFALL TRUNK
City
ROSEMEAD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
21
Purpose
Routine Assessment
Project
WO_630147_TV15085_APR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
15 0483
Downstream MH
15 0484
Dir. of Survey
Upstream
Length Surveyed
420 ft.
Total Length
420 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
1
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 15 0483 to 15 0484
MH: 15 0483MH: 15 0484upstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 15 048443.9 ft. TSA - Tap Saddle Active, at 12 o'clock, -, within 8 inches of joint: YES, 6"127.5 ft. RFJ - Roots Fine Joint, at 12 o'clock, within 8 inches of joint: YES175.3 ft. RFJ - Roots Fine Joint, at 11 o'clock, within 8 inches of joint: YES393.2 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"420 ft. MGO - General Observation - CONNECTION AT MH 11 O'CLOCK420 ft. MWM - Water Mark, 25 %of cross sectional area420 ft. AMH - Downstream Manhole, Survey Begins - 15 0483420 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (1)

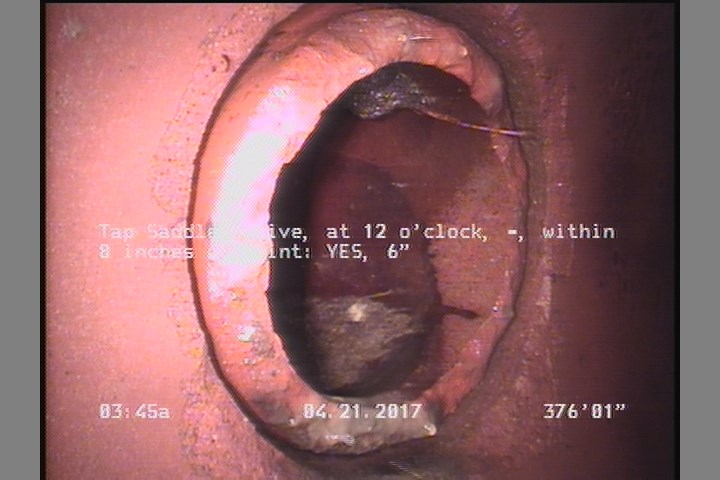

  • Tap Saddle Active, at 12 o'clock, -, within 8 inches of joint: YES, 6"

    376.1 ft. - Tap Saddle Active, at 12 o'clock, -, within 8 inches of joint: YES, 6"

All inspections of P12409Work order 630147

Observations (11)

DistanceCodeObservation
26.8TB—
420MGOCONNECTION AT MH 9 O'CLOCK
420MGOCONNECTION AT MH 3 O'CLOCK
0MGOCONNECTION AT MH 11 O'CLOCK
244.7RFJ—
0MWM—
0AMH15 0483
376.1TSA—
420AMH15 0484
292.5RFJ—
0MWL—

Properties (5)

additional_info
SC345181
custom_field_two
4
customer
LACSD
datetime
2017-04-21T03:33:28-07:00
is_lateral_inspection
false
