Wastewater/Activity/PacpInspection/1.0Apr 18, 2017, 09:30 AM
15 0549_15 0548 _18042017_023119.mp4
- Date
- 04/18/2017
- W/O
- 630147
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00629
- PipeID
- P12478
- Time
- 2:30 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4469
- Sewer Name
- 15 SANTA ANITA OUTFALL TRUNK
- City
- ARCADIA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_630147_TV15085_APR2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 15 0549
- Downstream MH
- 15 0548
- Dir. of Survey
- Downstream
- Length Surveyed
- 423.7 ft.
- Total Length
- 423.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2L14
- O&M Rating
- 136
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 136
Observation photos (3)

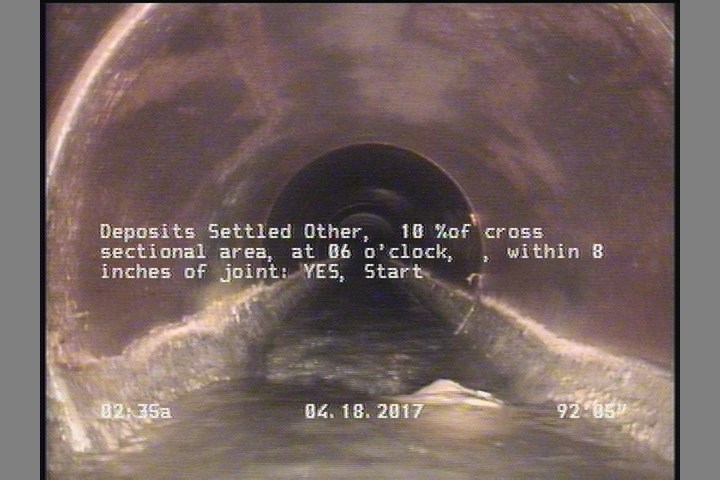

92.5 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

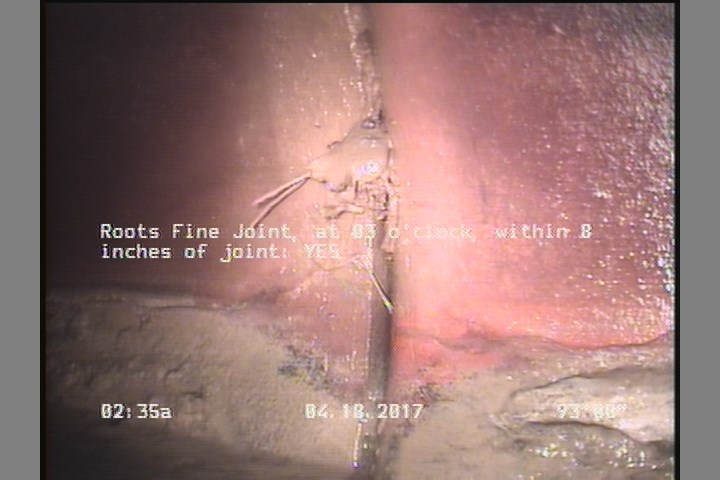

93.6 ft. - Roots Fine Joint, at 03 o'clock, within 8 inches of joint: YES

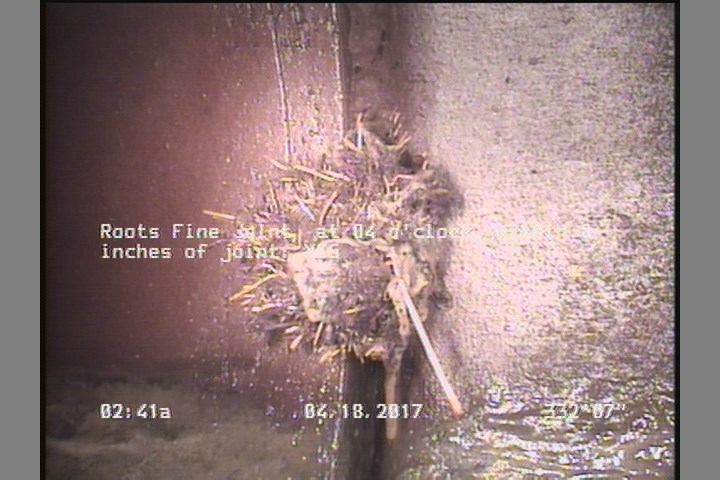

332.5 ft. - Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YES
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 332.1 | RFL | — |
| 92.5 | DSZ | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 133.2 | TF | — |
| 93.6 | RFJ | — |
| 0 | AMH | 15 0549 |
| 423.7 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 423.7 | AMH | 15 0548 |
| 423.7 | DSZ | — |
| 0 | MWM | — |
| 359.5 | RFJ | — |
| 332.5 | RFJ | — |
| 332.1 | TB | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC345178
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-04-18T02:30:52-07:00
- is_lateral_inspection
- false
