Wastewater/Activity/PacpInspection/1.0Apr 21, 2017, 09:48 AM
15 0487_15 0486 _21042017_024854.mp4
- Date
- 04/21/2017
- W/O
- 630147
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00629
- PipeID
- P12412
- Time
- 2:48 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4472
- Sewer Name
- 15 SANTA ANITA OUTFALL TRUNK
- City
- ROSEMEAD
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_630147_TV15085_APR2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 15 0487
- Downstream MH
- 15 0486
- Dir. of Survey
- Downstream
- Length Surveyed
- 394.3 ft.
- Total Length
- 394.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 1
- O&M Quick
- 211B
- O&M Rating
- 15
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (3)

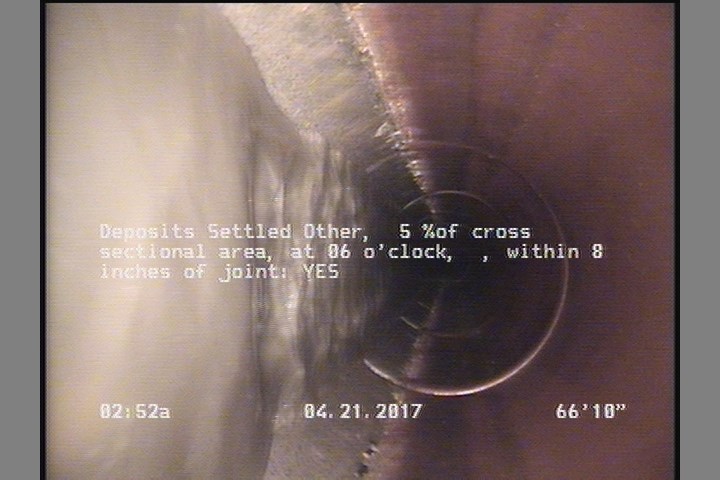

66.8 ft. - Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

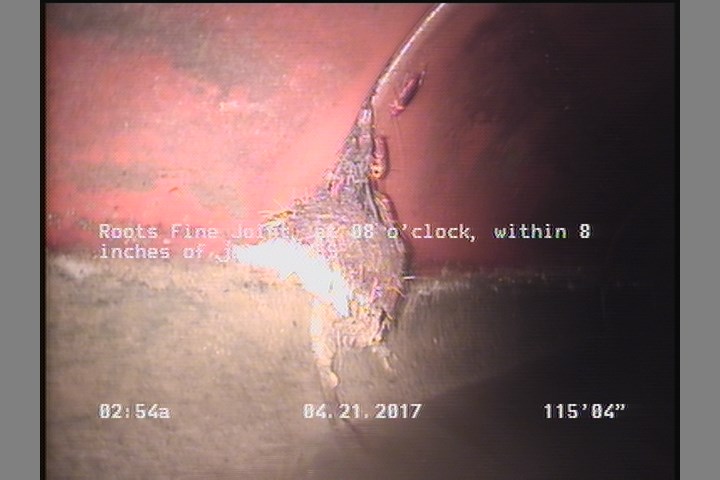

115.3 ft. - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES

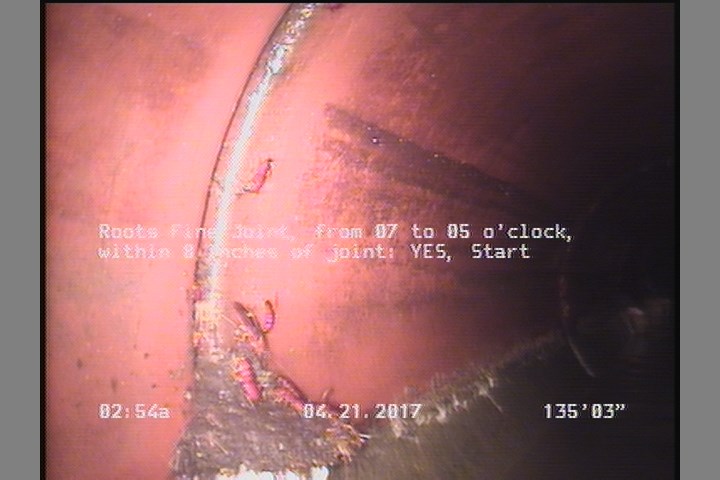

135.3 ft. - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 394.3 | AMH | 15 0486 |
| 135.3 | RFJ | — |
| 0 | MWM | — |
| 0 | AMH | 15 0487 |
| 66.8 | DSZ | — |
| 193.9 | RFJ | — |
| 115.3 | RFJ | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC345181
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-04-21T02:48:28-07:00
- is_lateral_inspection
- false
