Wastewater/Activity/PacpInspection/1.0Apr 19, 2017, 10:16 AM
15 0531_15 0530 _19042017_031628.mp4
- Date
- 04/19/2017
- W/O
- 630147
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00629
- PipeID
- P12459
- Time
- 3:16 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4470
- Sewer Name
- 15 SANTA ANITA OUTFALL TRUNK
- City
- ARCADIA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_630147_TV15085_APR2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 15 0531
- Downstream MH
- 15 0530
- Dir. of Survey
- Downstream
- Length Surveyed
- 400.6 ft.
- Total Length
- 400.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 1
- O&M Quick
- 2115
- O&M Rating
- 7
- Overall Index
- 1
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (4)

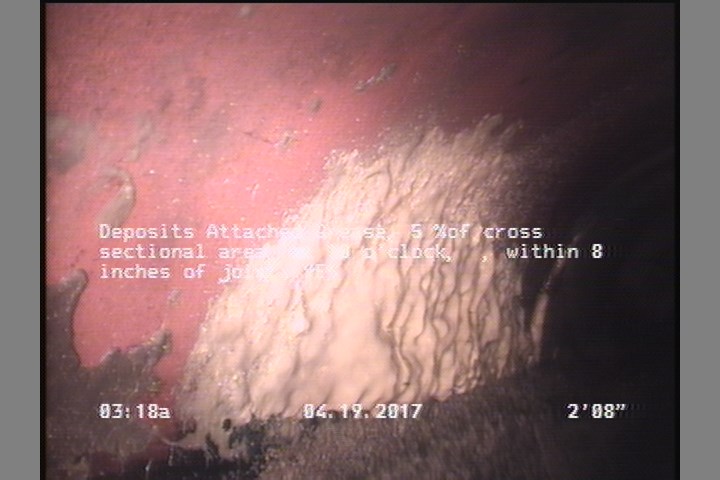

2.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, at 10 o'clock, , within 8 inches of joint: YES

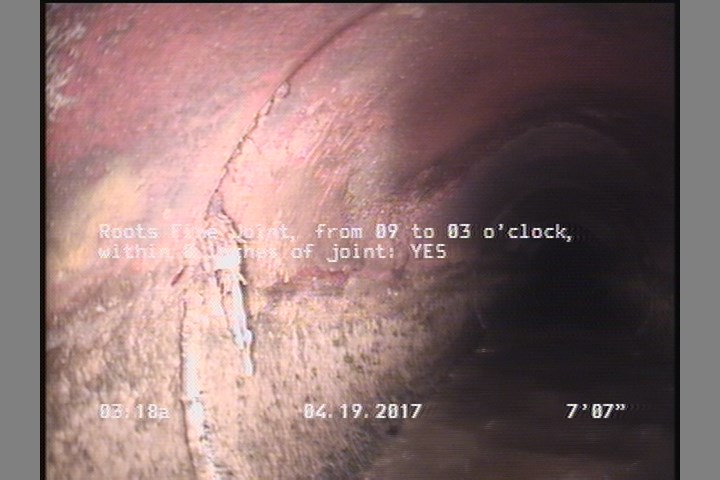

7.6 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES

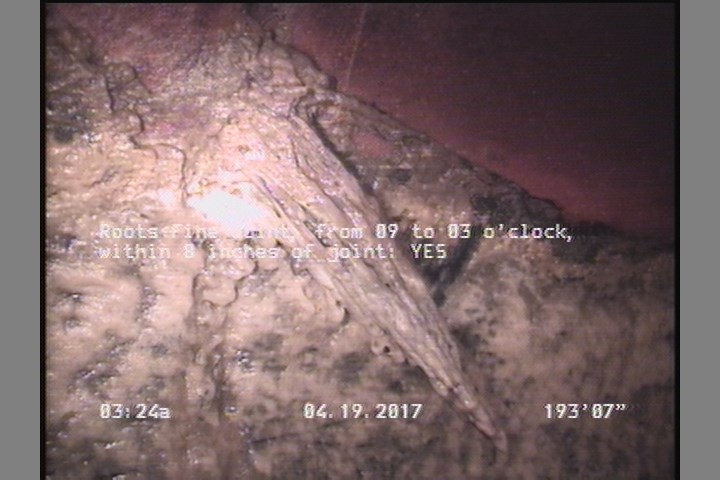

193.6 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES

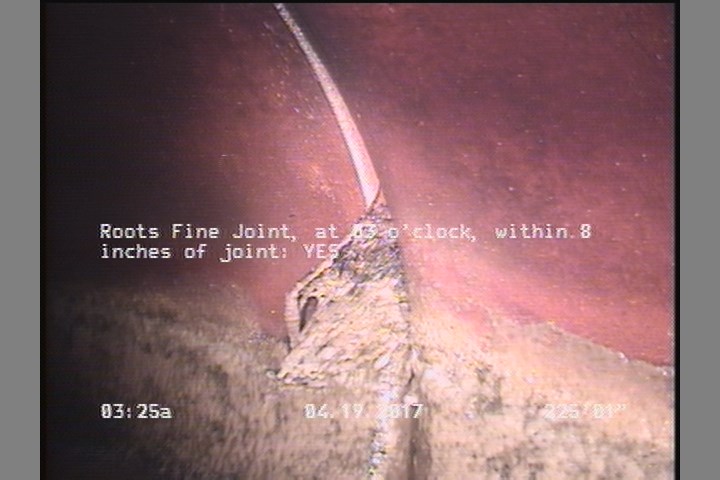

225.1 ft. - Roots Fine Joint, at 03 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 225.1 | RFJ | — |
| 2.7 | DAGS | — |
| 305 | RFJ | — |
| 7.6 | RFJ | — |
| 0 | AMH | 15 0531 |
| 0 | MWM | — |
| 400.6 | AMH | 15 0530 |
| 193.6 | RFJ | — |
| 284.9 | RFJ | — |
Properties (5)
- additional_info
- SC345179
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-04-19T03:16:03-07:00
- is_lateral_inspection
- false
