Wastewater/Activity/PacpInspection/1.0May 17, 2017, 07:31 AM
02 0643_02 0642A_17052017_003232.mp4
- Date
- 05/17/2017
- W/O
- 618894
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00258
- PipeID
- P03196
- Time
- 12:31 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4455
- Sewer Name
- 02 EAST COMPTON BOULEVARD EXTENSION TRUNK
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_618894_TV02057_MAY2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0643
- Downstream MH
- 02 0642A
- Dir. of Survey
- Downstream
- Length Surveyed
- 88.3 ft.
- Total Length
- 88.3 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 48
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 34
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 82
Observation photos (2)
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

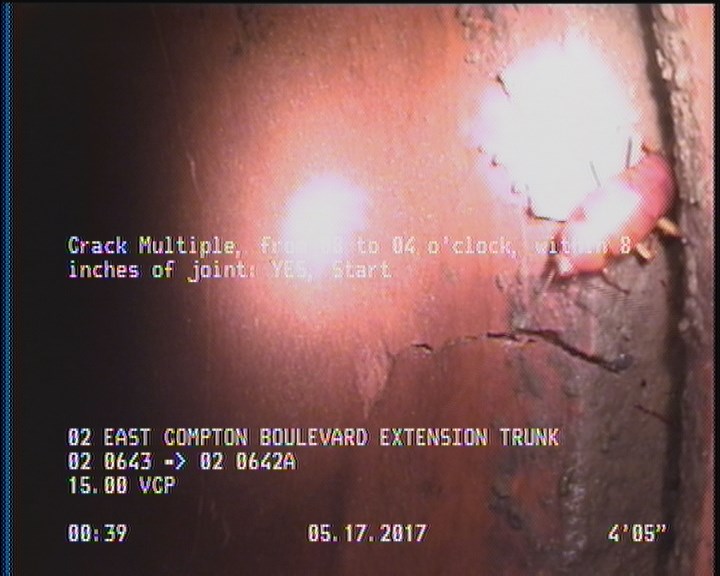

4.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 88.3 | AMH | 02 0642A |
| 4.4 | CM | — |
| 58.6 | TFA | — |
| 46.4 | TFC | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | 20 0643 |
| 10.5 | TFC | — |
| 88.3 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 86.5 | DAGS | — |
| 86.5 | CM | — |
Properties (5)
- additional_info
- SC345231
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-17T00:31:22-07:00
- is_lateral_inspection
- false
