Wastewater/Activity/PacpInspection/1.0Feb 26, 2019, 08:51 AM
21 0944_21 0943_02262019_015617.mp4
- Date
- 02/26/2019
- W/O
- 750721
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00760
- PipeID
- P16037
- Time
- 12:51 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5815
- Sewer Name
- 21 CLAREMONT OUTFALL TRUNK
- City
- CLAREMONT
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- RFIR_WO_750721_TV21028_FEB2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 21 0943
- Downstream MH
- 21 0944
- Dir. of Survey
- Upstream
- Length Surveyed
- 44.7 ft.
- Total Length
- 44.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

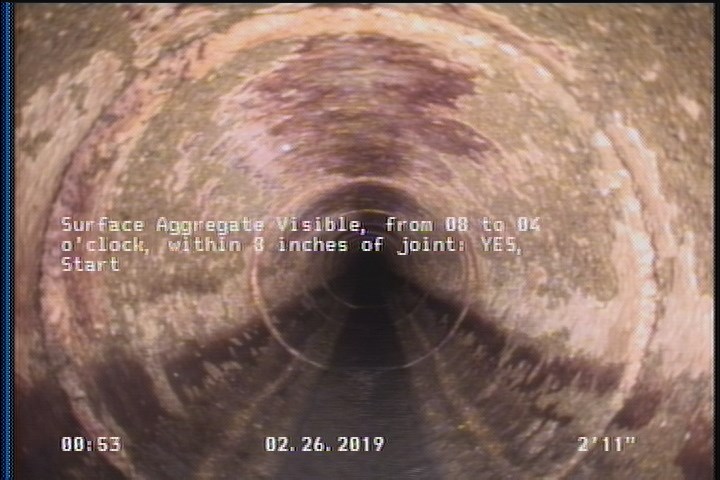

2.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

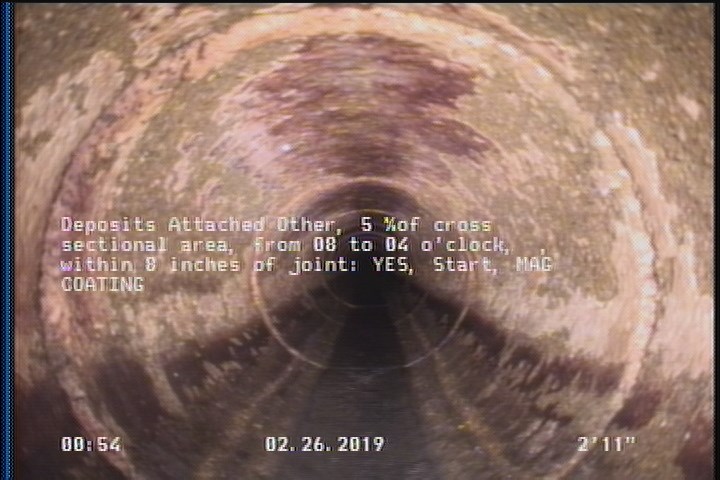

2.9 ft. - Deposits Attached Other, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start - MAG COATING

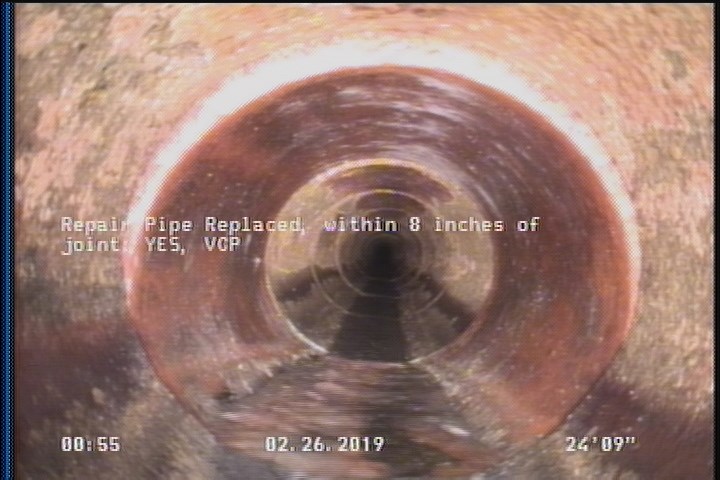

24.7 ft. - Repair Pipe Replaced, within 8 inches of joint: YES - VCP
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2.9 | SAV | — |
| 24.7 | RPR | VCP |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 0 | MWL | — |
| 42.2 | SAV | — |
| 0 | AMH | 21 0943 |
| 42.2 | DAZ | — |
| 0 | MWM | — |
| 2.9 | DAZ | MAG COATING |
| 44.7 | AMH | 21 0944 |
Properties (5)
- additional_info
- SC366388
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-02-26T00:51:18-08:00
- is_lateral_inspection
- false
