Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 6, 2019, 11:58 AM

  • 02 1212_02 2139_02062019_041421.mpg

Date
02/06/2019
W/O
745703
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00284
PipeID
P04414
Time
3:58 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6265
Sewer Name
02 MONTEBELLO INTERCEPTOR TRUNK, SECTION 3
City
MONTEBELLO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
14
Purpose
Routine Assessment
Project
RFIR_WO_745703_TV02413_JAN2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
02 2139
Downstream MH
02 1212
Dir. of Survey
Upstream
Length Surveyed
183 ft.
Total Length
183 ft.
Structural Index
3
Structural Quick
523E
Structural Rating
106
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
110
Pipe schematic from manhole 02 2139 to 02 1212
MH: 02 2139MH: 02 1212upstream0 ft. AMH - Upstream Manhole, Survey Ends - 02 12120 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 OCLOCK1.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish49 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start54.6 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish64 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start64 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish173.6 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish173.6 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start177.1 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start183 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 OCLOCK183 ft. MWL - Water Level, 35 %of cross sectional area183 ft. MWM - Water Mark, 55 %of cross sectional area183 ft. AMH - Downstream Manhole, Survey Begins - 02 2139

Observation photos (4)

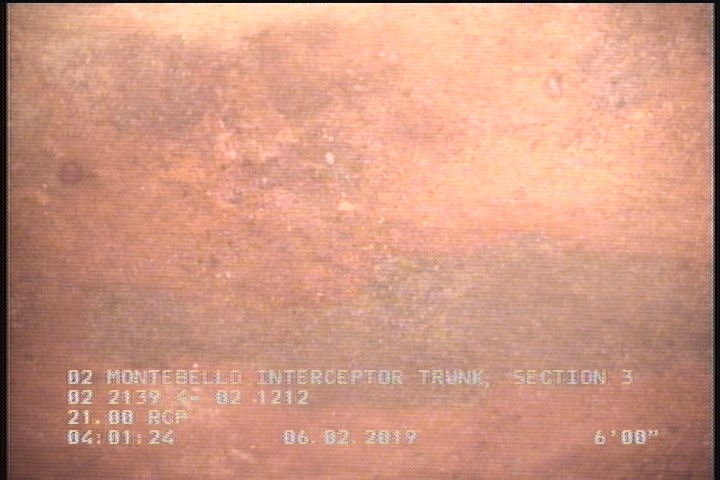

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    5.9 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

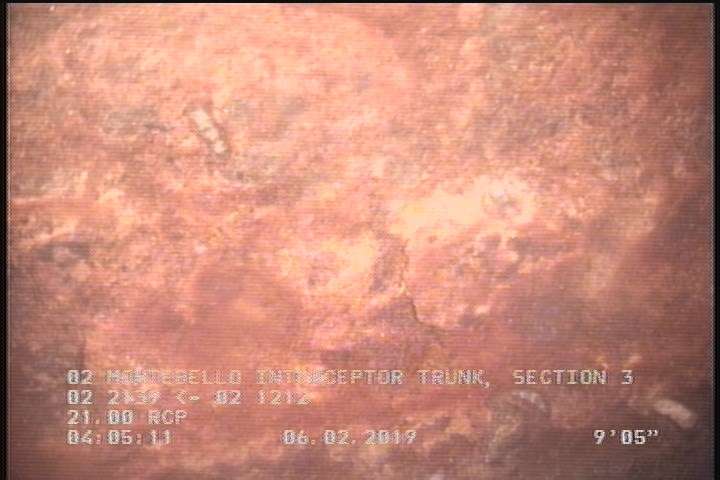

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    9.4 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

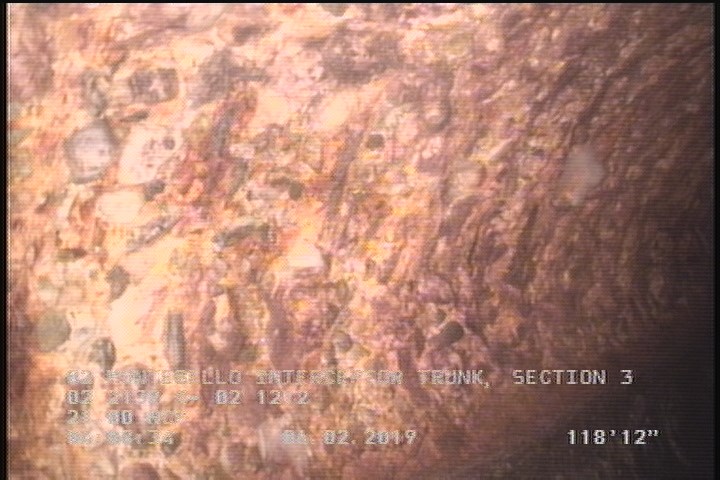

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    119 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

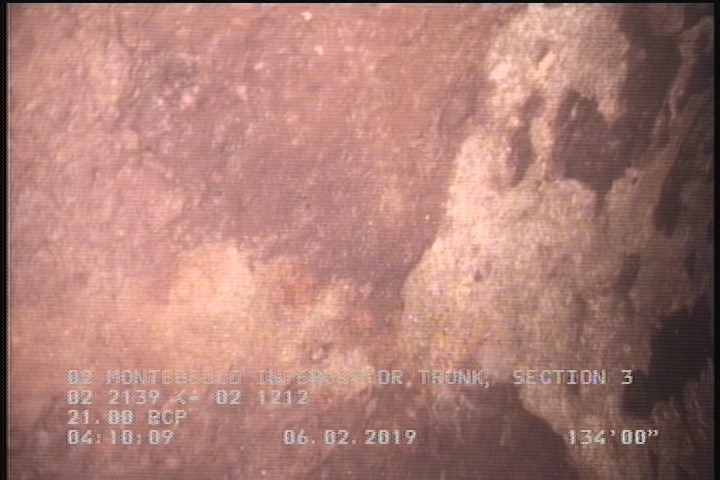

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    134 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P04414Work order 745703

Observations (14)

DistanceCodeObservation
0MGOACTIVE CONNECTION AT MH 9 OCLOCK
119SRV—
183AMH02 1212
0MWL—
134SAP—
9.4SAV—
9.4SAP—
5.9SAV—
0MWM—
0AMH02 2139
183MGOACTIVE CONNECTION AT MH 3 OCLOCK
181.3SAP—
119SAP—
128.4SRV—

Properties (6)

custom_field_two
1
customer
LACSD
datetime
2019-02-06T03:58:52-08:00
documentation
PROPIPE
is_lateral_inspection
false
year_laid
30538
