Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 7, 2017, 11:16 AM

  • 05 1975_J 0182 _07092017_041639.mp4

Date
09/07/2017
W/O
651735
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00545
PipeID
P07175
Time
4:16 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4862
Sewer Name
05 9TH STREET CONNECTION TRUNK
City
SAN PEDRO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
47A
Purpose
Routine Assessment
Project
WO_651735_TV05318_AUG2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 1975
Downstream MH
J 0182
Dir. of Survey
Downstream
Length Surveyed
45 ft.
Total Length
45.1 ft.
Structural Index
2
Structural Quick
3123
Structural Rating
9
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 05 1975 to J 0182
MH: 05 1975MH: J 0182downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 19753 ft. MGO - General Observation - CHIPPING FROM 11 TO 12 O'CLOCK16.9 ft. CM - Crack Multiple, from 08 to 09 o'clock, within 8 inches of joint: YES21.8 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start37.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start37.1 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Finish45.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Finish45.1 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK45.1 ft. AMH - Downstream Manhole, Survey Ends - J 0182

Observation photos (3)

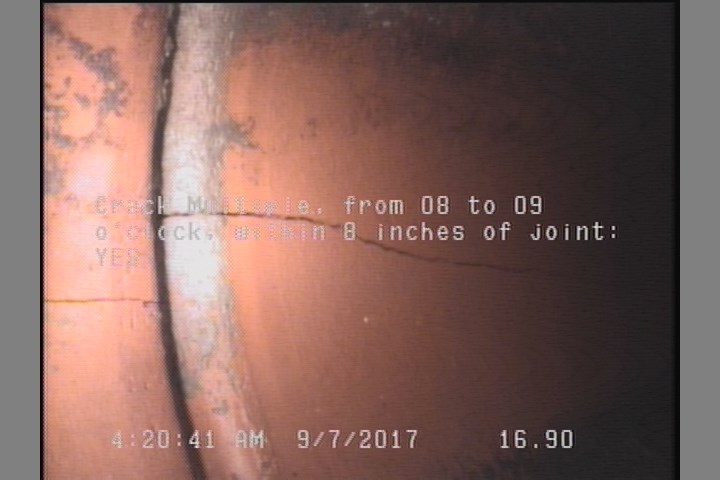

  • Crack Multiple, from 08 to 09 o'clock, within 8 inches of joint: YES

    16.9 ft. - Crack Multiple, from 08 to 09 o'clock, within 8 inches of joint: YES

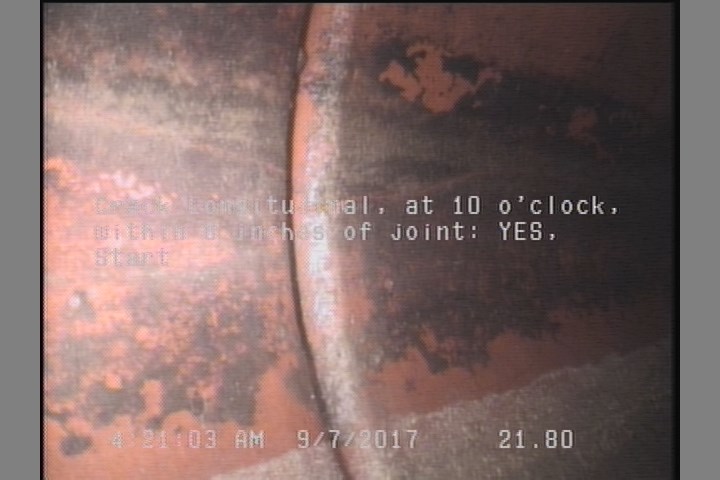

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start

    21.8 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start

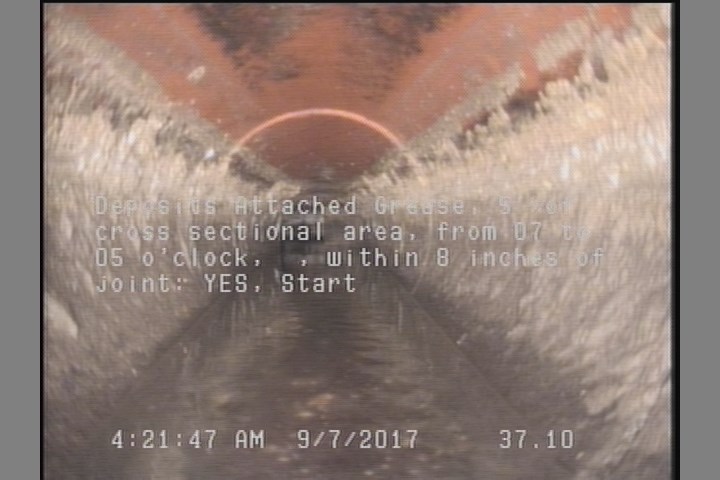

  • Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

    37.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

All inspections of P07175Work order 651735

Observations (11)

DistanceCodeObservation
0MWL—
37.1DAGS—
0MWM—
21.8CL—
3MGOCHIPPING FROM 11 TO 12 O'CLOCK
45.1DAGS—
45.1MGOCONNECTION AT MH 3 O'CLOCK
45.1AMHJ 0182
37.1CL—
0AMH05 1975
16.9CM—

Properties (6)

additional_info
SC345921
custom_field_two
4
customer
LACSD
datetime
2017-09-07T04:16:14-07:00
documentation
PROPIPE
is_lateral_inspection
false
