Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 9, 2018, 08:58 AM

  • 05 0818_05 0817 _09112018_005816.mp4

Date
11/09/2018
W/O
735499
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00419
PipeID
P06048
Time
12:58 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6215
Sewer Name
05 ARLINGTON AVENUE EXTENSION TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
11
Purpose
Routine Assessment
Project
RFIR_WO_735499_TV05345_NOV2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 0817
Downstream MH
05 0818
Dir. of Survey
Upstream
Length Surveyed
243.9 ft.
Total Length
243.9 ft.
Structural Index
2
Structural Quick
5231
Structural Rating
109
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
113
Pipe schematic from manhole 05 0817 to 05 0818
MH: 05 0817MH: 05 0818upstream0 ft. AMH - Upstream Manhole, Survey Ends - 05 08180.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0.1 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK1.9 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH 5% LESS1.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish21.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"23.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"64.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Finish69.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"72.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"123.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"126.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"173.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"176.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"218.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start220.4 ft. B - Broken, from 10 to 05 o'clock, within 8 inches of joint: YES220.4 ft. HSV - Hole Soil Visible, from 10 to 05 o'clock, within 8 inches of joint: YES223.5 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - GREASE226.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"237.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start241.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start243.9 ft. AMH - Downstream Manhole, Survey Begins - 05 0817243.9 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK243.9 ft. MWL - Water Level, 10 %of cross sectional area243.9 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (3)

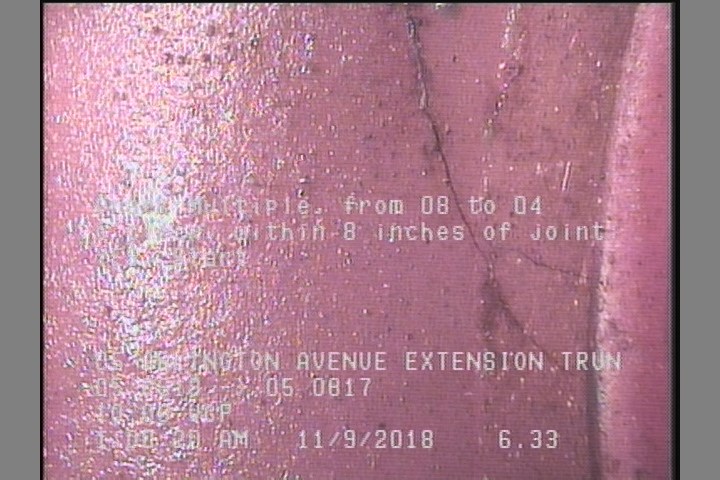

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

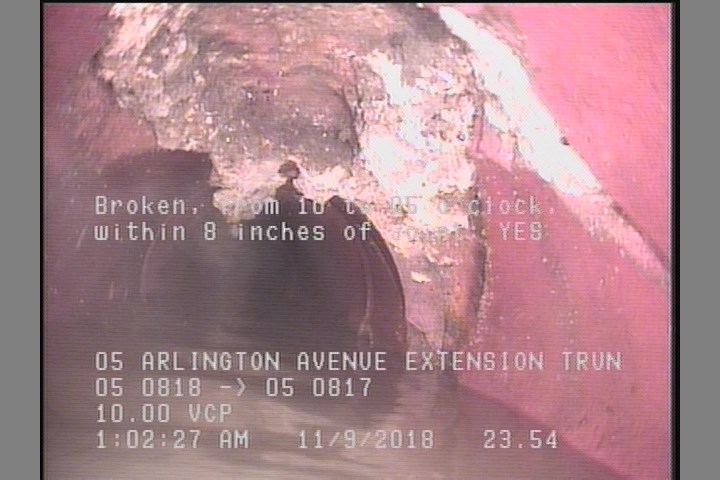

  • Broken, from 10 to 05 o'clock, within 8 inches of joint: YES

    23.5 ft. - Broken, from 10 to 05 o'clock, within 8 inches of joint: YES

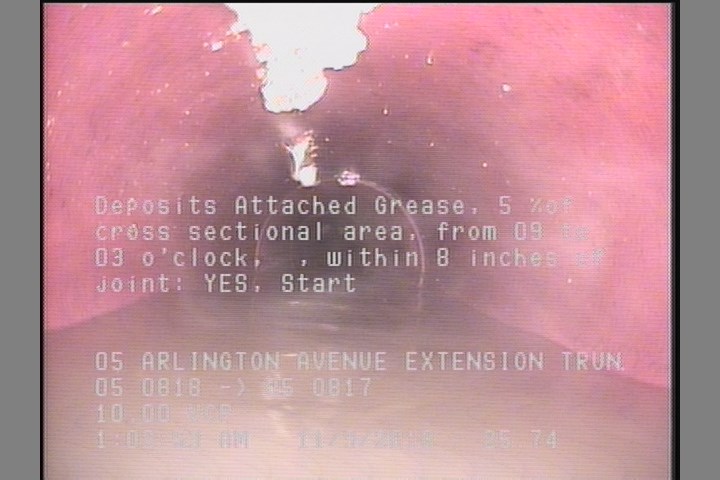

  • Deposits Attached Grease, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

    25.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

All inspections of P06048Work order 735499

Observations (25)

DistanceCodeObservation
70.1TFC—
0AMH05 0817
243.9AMH05 0818
23.5B—
243.8CM—
67.8TFC—
120.2TFC—
0MGOCONNECTION AT MH 3 O'CLOCK
242MGOGREASE THROUGHOUT THE REACH 5% LESS
179.7DAGS—
220TFC—
6.3CM—
171.5TFC—
174.3TFC—
0MWL—
117.8TFC—
20.4TFDGREASE
222.3TFC—
243.8MGOCONNECTION AT MH 3 O'CLOCK
242SSS—
23.5HSV—
0MWM—
25.7DAGS—
17.6TF—
2SSS—

Properties (6)

additional_info
SC364243
custom_field_two
2
customer
LACSD
datetime
2018-11-09T00:58:08-08:00
documentation
PROPIPE
is_lateral_inspection
false
