Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 9, 2018, 06:42 AM

  • 05 0827_05 0826 _08112018_224223.mp4

Date
11/08/2018
W/O
735499
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00419
PipeID
P06057
Time
10:42 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6215
Sewer Name
05 ARLINGTON AVENUE EXTENSION TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
11
Purpose
Routine Assessment
Project
RFIR_WO_735499_TV05345_NOV2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 0827
Downstream MH
05 0826
Dir. of Survey
Downstream
Length Surveyed
350.5 ft.
Total Length
350.5 ft.
Structural Index
3
Structural Quick
413M
Structural Rating
349
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
349
Pipe schematic from manhole 05 0827 to 05 0826
MH: 05 0827MH: 05 0826downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 08270 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start6.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"39.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"48.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"98.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"101.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"151.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"154.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"204.4 ft. FM - Fracture Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES205.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"207.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"258 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"260.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"314.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"316.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"349 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish349 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH 5% LESS350.5 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK350.5 ft. AMH - Downstream Manhole, Survey Ends - 05 0826350.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

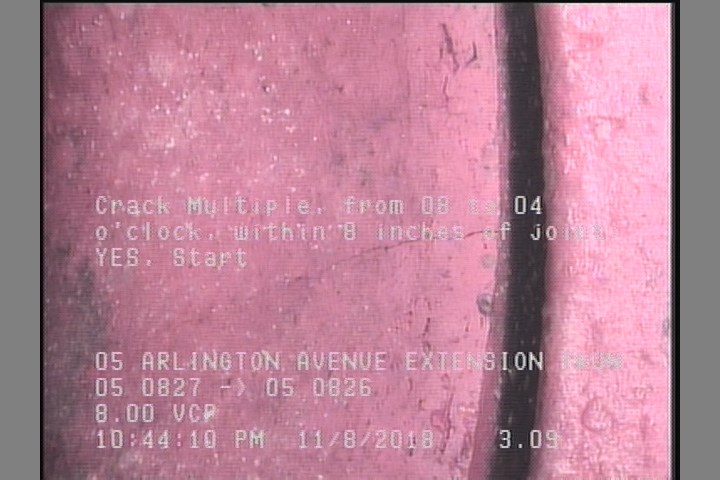

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

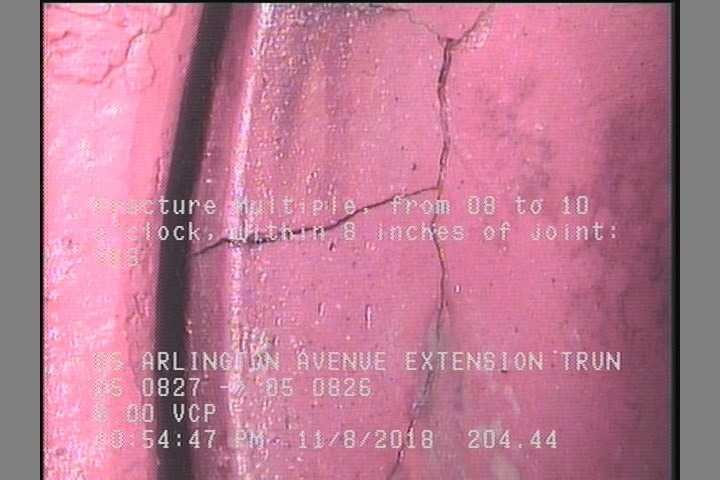

  • Fracture Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES

    204.4 ft. - Fracture Multiple, from 08 to 10 o'clock, within 8 inches of joint: YES

All inspections of P06057Work order 735499

Observations (24)

DistanceCodeObservation
154.4TF—
48.7TF—
3.1CM—
0AMH05 0827
39.8TF—
350.5MGOCONNECTION AT MH 3 O'CLOCK
258TF—
151.7TF—
0MWL—
350.5AMH05 0826
0MWM—
101.3TF—
6.9TF—
98.9TF—
205.4TF—
316.9TF—
2SSS—
349SSS—
260.6TF—
349MGOGREASE THROUGHOUT THE REACH 5% LESS
314.1TF—
350.5CM—
207.7TF—
204.4FM—

Properties (6)

additional_info
SC364243
custom_field_two
3
customer
LACSD
datetime
2018-11-08T22:42:11-08:00
documentation
PROPIPE
is_lateral_inspection
false
