Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 9, 2018, 07:40 AM

  • 05 0823_05 0822 _08112018_234105.mp4

Date
11/08/2018
W/O
735499
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00419
PipeID
P06053
Time
11:40 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6215
Sewer Name
05 ARLINGTON AVENUE EXTENSION TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
11
Purpose
Routine Assessment
Project
RFIR_WO_735499_TV05345_NOV2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 0823
Downstream MH
05 0822
Dir. of Survey
Downstream
Length Surveyed
195.5 ft.
Total Length
195.5 ft.
Structural Index
2
Structural Quick
3G2G
Structural Rating
199
O&M Index
4
O&M Quick
4F00
O&M Rating
140
Overall Index
3
Overall Quick
—
Overall Rating
339
Pipe schematic from manhole 05 0823 to 05 0822
MH: 05 0823MH: 05 0822downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 08230 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start15.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"21.5 ft. MCU - Camera Underwater, Start21.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"21.6 ft. MWLS - Water Level, Sag in pipe, 20 %of cross sectional area, Start38 ft. MWLS - Water Level, Sag in pipe, 20 %of cross sectional area, Finish83.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"128.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"194 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish194 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH 5% LESS195.5 ft. AMH - Downstream Manhole, Survey Ends - 05 0822195.5 ft. MGO - General Observation - CAPPED LATERAL 3 O'CLOCK @ MH195.5 ft. MCU - Camera Underwater, Finish195.5 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK195.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

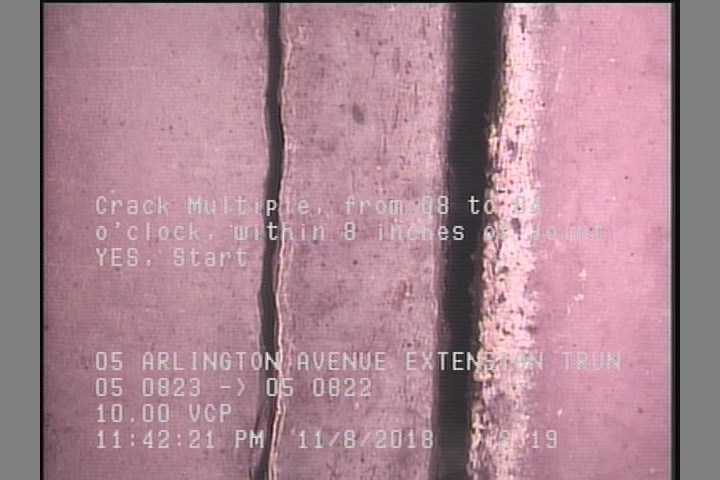

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

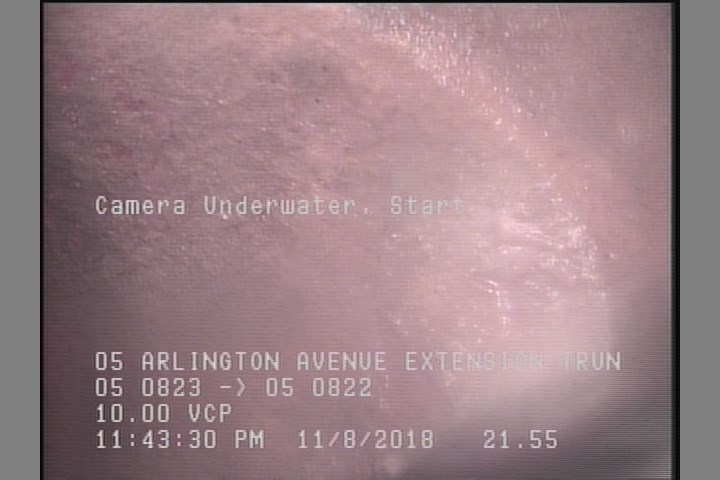

  • Camera Underwater, Start

    21.5 ft. - Camera Underwater, Start

All inspections of P06053Work order 735499

Observations (20)

DistanceCodeObservation
21.6MWLS—
2.2CM—
21.5MCU—
195.5AMH05 0822
195.5MGOCAPPED LATERAL 3 O'CLOCK @ MH
194SSS—
83.2TF—
38MWLS—
195.5MCU—
0AMH05 0823
2SSS—
128.8TF—
0MWM—
0MGOCONNECTION AT MH 3 O'CLOCK
0MWL—
195.5MGOCONNECTION AT MH 9 O'CLOCK
15.3TFC—
21.5TF—
194MGOGREASE THROUGHOUT THE REACH 5% LESS
195.5CM—

Properties (6)

additional_info
SC364243
custom_field_two
3
customer
LACSD
datetime
2018-11-08T23:40:38-08:00
documentation
PROPIPE
is_lateral_inspection
false
