Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 9, 2018, 07:22 AM

  • 05 0825_05 0824 _08112018_232252.mp4

Date
11/08/2018
W/O
735499
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00419
PipeID
P06055
Time
11:22 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6215
Sewer Name
05 ARLINGTON AVENUE EXTENSION TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
11
Purpose
Routine Assessment
Project
RFIR_WO_735499_TV05345_NOV2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 0825
Downstream MH
05 0824
Dir. of Survey
Downstream
Length Surveyed
280.3 ft.
Total Length
280.3 ft.
Structural Index
3
Structural Quick
3J2J
Structural Rating
277
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
277
Pipe schematic from manhole 05 0825 to 05 0824
MH: 05 0825MH: 05 0824downstream0 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 05 08250 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start5.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"54.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"57.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"113.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"115.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"163.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"165.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"221.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"224.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"257.6 ft. FC - Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES279 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish279 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH 5% LESS280.3 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK280.3 ft. AMH - Downstream Manhole, Survey Ends - 05 0824280.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

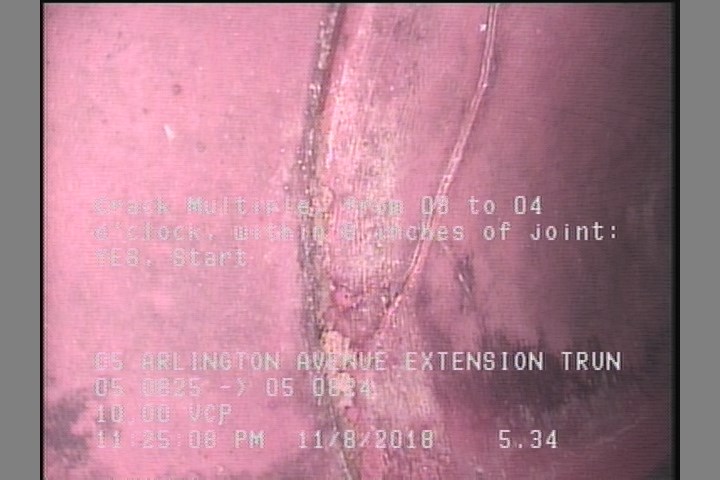

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

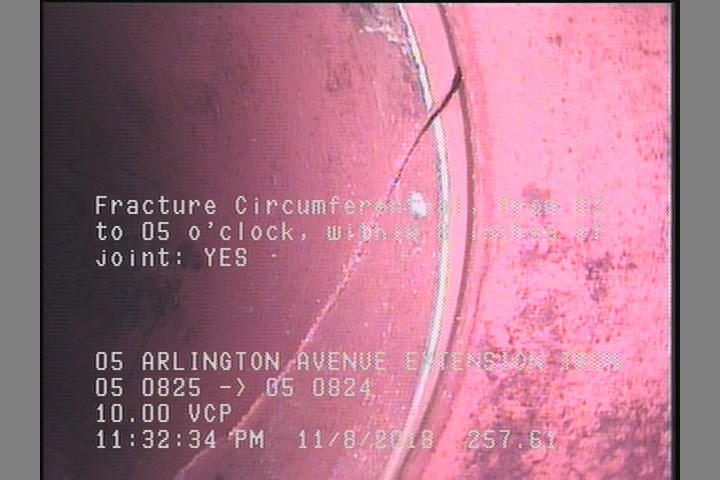

  • Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES

    257.6 ft. - Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES

All inspections of P06055Work order 735499

Observations (22)

DistanceCodeObservation
279SSS—
115.8TF—
54.3TFC—
113.3TFC—
279MGOGREASE THROUGHOUT THE REACH 5% LESS
0MGOCONNECTION AT MH 6 O'CLOCK
163.6TF—
224.6TFC—
2SSS—
7TFC—
0MWL—
0MGOCONNECTION AT MH 9 O'CLOCK
280.3MGOCONNECTION AT MH 9 O'CLOCK
0AMH05 0825
221.5TFC—
280.3AMH05 0824
5.3CM—
0MWM—
280.3CM—
257.6FC—
165.8TFC—
57.4TF—

Properties (6)

additional_info
SC364243
custom_field_two
3
customer
LACSD
datetime
2018-11-08T23:22:37-08:00
documentation
PROPIPE
is_lateral_inspection
false
