Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 9, 2018, 08:05 AM

  • 05 0822_05 0821 _09112018_000620.mp4

Date
11/09/2018
W/O
735499
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00419
PipeID
P06052
Time
12:05 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6215
Sewer Name
05 ARLINGTON AVENUE EXTENSION TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
11
Purpose
Routine Assessment
Project
RFIR_WO_735499_TV05345_NOV2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
05 0822
Downstream MH
05 0821
Dir. of Survey
Downstream
Length Surveyed
302.1 ft.
Total Length
302.1 ft.
Structural Index
2
Structural Quick
312K
Structural Rating
125
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
2
Overall Quick
—
Overall Rating
126
Pipe schematic from manhole 05 0822 to 05 0821
MH: 05 0822MH: 05 0821downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - CAPPED LATERAL 3 O'CLOCK @ MH0 ft. AMH - Upstream Manhole, Survey Begins - 05 08222 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start7.7 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES24 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start57.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"59.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"107.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"109.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"160.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"163.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"214.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"217.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"264.5 ft. RFL - Roots Fine Lateral, at 10 o'clock264.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"267.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"301 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish301 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH 5% LESS302.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish302.1 ft. AMH - Downstream Manhole, Survey Ends - 05 0821

Observation photos (2)

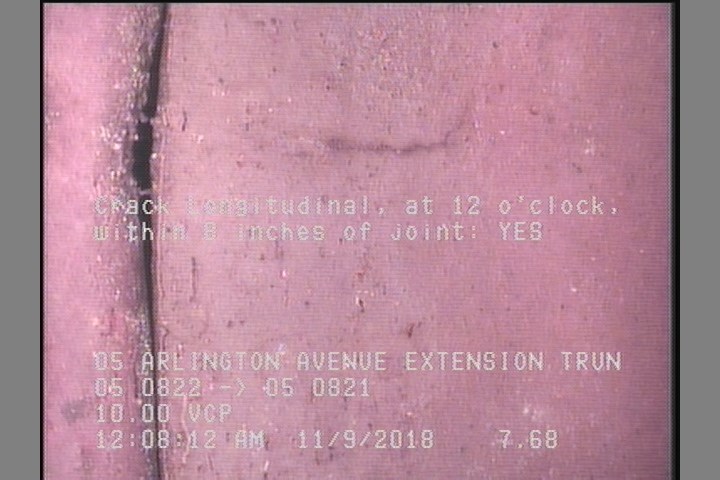

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    7.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

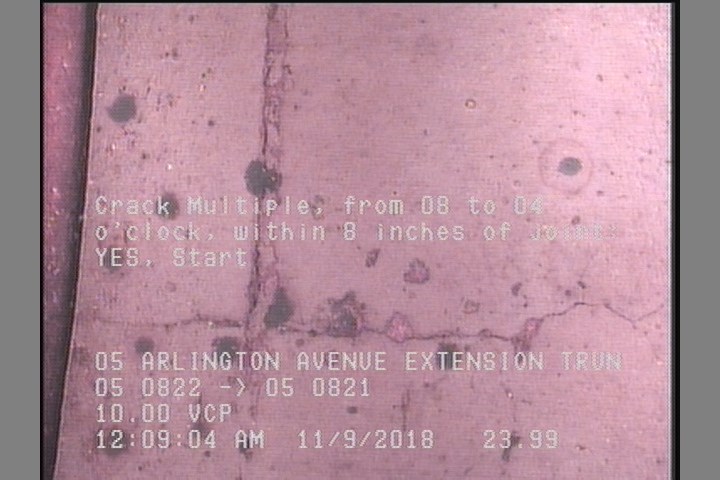

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    24 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P06052Work order 735499

Observations (23)

DistanceCodeObservation
0MGOCONNECTION AT MH 9 O'CLOCK
2SSS—
0MWL—
7.7CL—
301SSS—
59.9TFC—
109.7TFC—
301MGOGREASE THROUGHOUT THE REACH 5% LESS
0MWM—
160.8TF—
302.1CM—
24CM—
163.3TFC—
302.1AMH05 0821
264.5RFL—
107.1TF—
57.1TF—
267.2TFC—
0MGOCAPPED LATERAL 3 O'CLOCK @ MH
217.4TFC—
264.5TF—
214.6TF—
0AMH05 0822

Properties (6)

additional_info
SC364243
custom_field_two
3
customer
LACSD
datetime
2018-11-09T00:05:52-08:00
documentation
PROPIPE
is_lateral_inspection
false
