Wastewater/Activity/PacpInspection/1.0May 16, 2016, 11:46 AM
B 0660_B 0659_16052016_044815.mp4
- Date
- 05/16/2016
- W/O
- 568742
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00109
- PipeID
- P20281
- Time
- 4:46 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3351
- Sewer Name
- B JOINT OUTFALL B - UNIT 8F
- City
- ARCADIA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- RFIR_WO_568742_TV15136_MAY2016
- Sewer Type
- SIPHON
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- B 0660
- Downstream MH
- B 0659
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

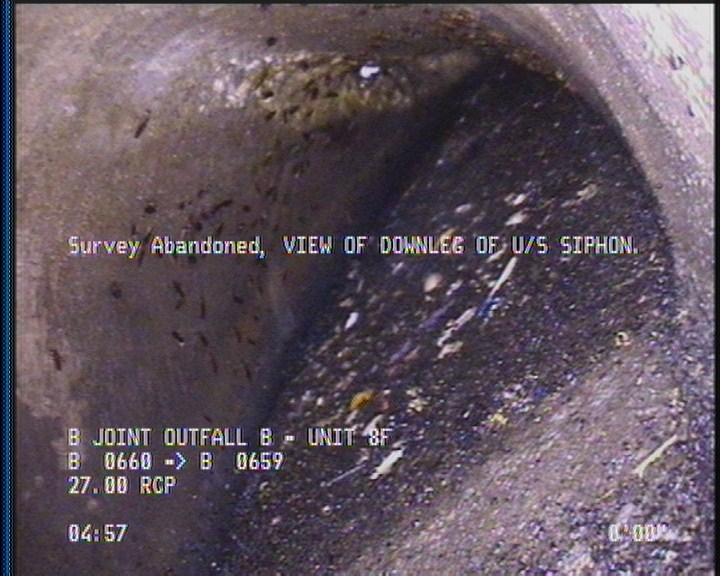

2 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S SIPHON.

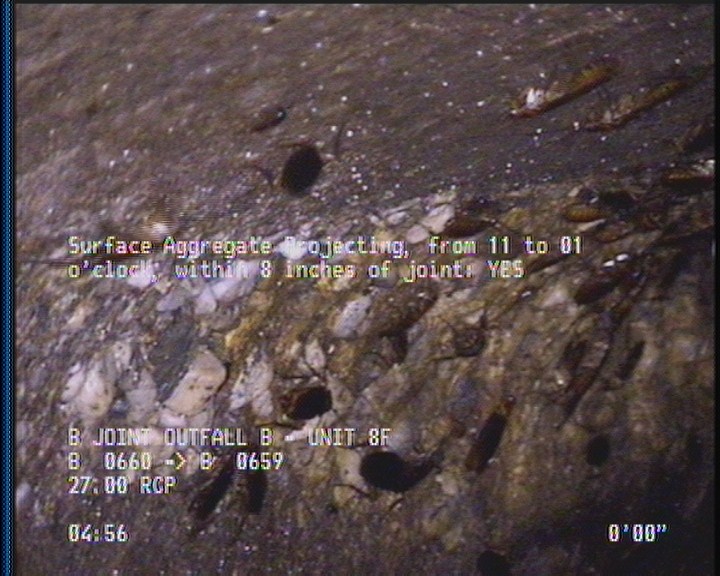

2 ft. - Surface Aggregate Projecting, from 11 to 01 o'clock, within 8 inches of joint: YES

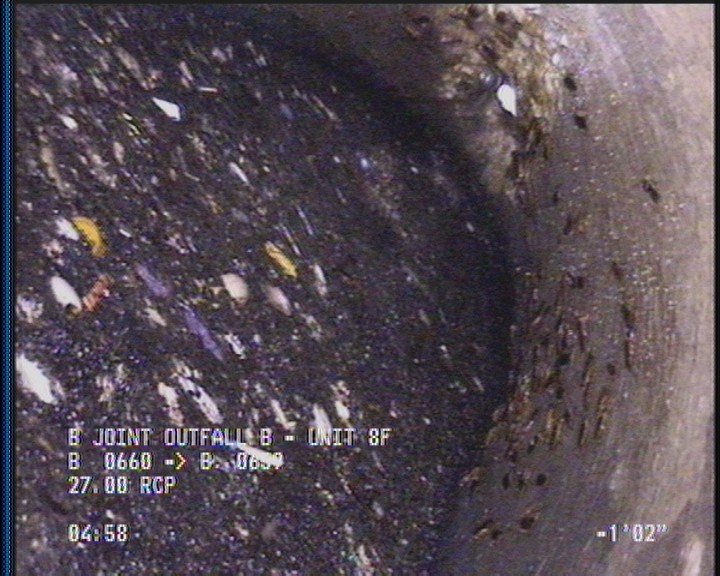

2 ft. - Deposits Settled Other, 100 %of cross sectional area, from 12 to 12 o'clock, , within 8 inches of joint: YES - DEBRIS
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2 | MSA | VIEW OF DOWNLEG OF U/S SIPHON. |
| 0 | MGO | STOP LOG AT U/S |
| 2 | SAP | — |
| 2 | DSZ | DEBRIS |
| 0 | AMH | B 0660 |
| 0 | MGO | SOUTH BARREL |
Properties (6)
- additional_info
- SC305630
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-05-16T04:46:33-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
