Wastewater/Activity/PacpInspection/1.0May 20, 2019, 09:01 AM
21 0215_H 0989 _05202019_024937.mp4
- Date
- 05/20/2019
- W/O
- 761393
- Weather
- Light Rain
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z01005
- PipeID
- P15403
- Time
- 2:01 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5855
- Sewer Name
- H JOINT OUTFALL H - UNIT 7C
- City
- ROWLAN HEIGHTS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- RFIR_WO_761393_TV21098_APR2019
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- 21 0215
- Downstream MH
- H 0989
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.2 ft.
- Total Length
- 2.2 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

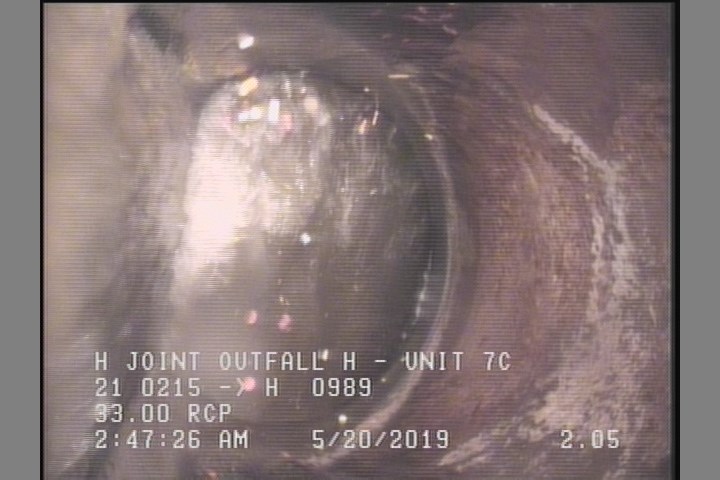

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES

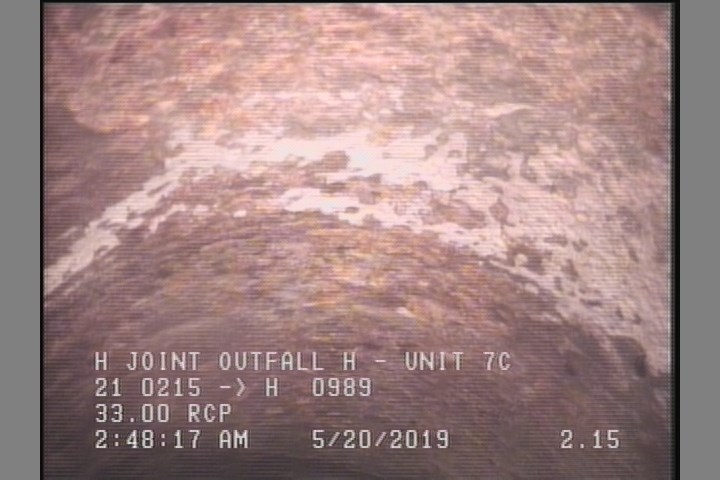

2.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CONNECTION IN MH 3 OCLOCK |
| 0 | AMH | 21 0215 |
| 0 | MWL | — |
| 2.1 | DAGS | — |
| 2.2 | MSA | VIEW OF THE DOWNLEG PIPE FROM THE U/S SIDE OF THE |
| 0 | MWM | — |
| 2.2 | SSS | — |
Properties (5)
- additional_info
- SC377670
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-05-20T02:01:42-07:00
- is_lateral_inspection
- false
