Wastewater/Activity/PacpInspection/1.0Feb 27, 2019, 08:17 AM
22 0456_22 0455 _02272019_001714.mp4
- Date
- 02/27/2019
- W/O
- 750841
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00816
- PipeID
- P16794
- Time
- 12:17 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6406
- Sewer Name
- 22 LARK ELLEN TRUNK, SECTS 4,5,&6
- City
- COVINA
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- RFIR_WO_750841_TV22049_FEB2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 22 0456
- Downstream MH
- 22 0455
- Dir. of Survey
- Downstream
- Length Surveyed
- 261.7 ft.
- Total Length
- 261.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2I00
- O&M Rating
- 104
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 107
Observation photos (2)

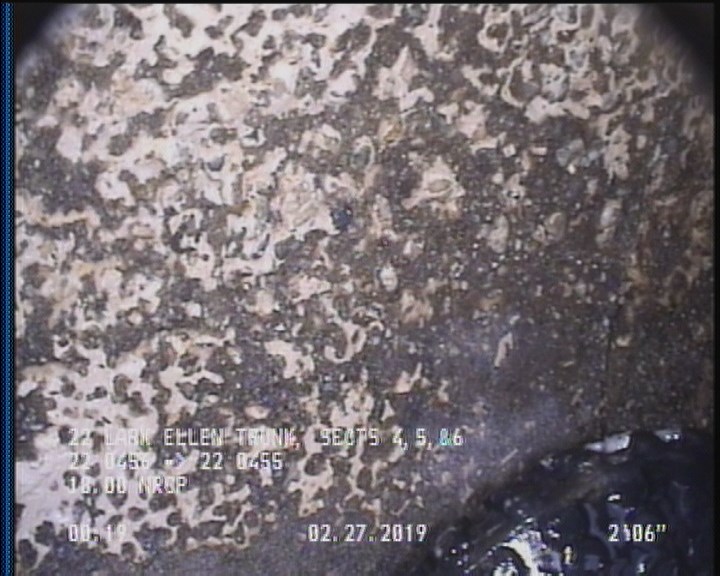

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

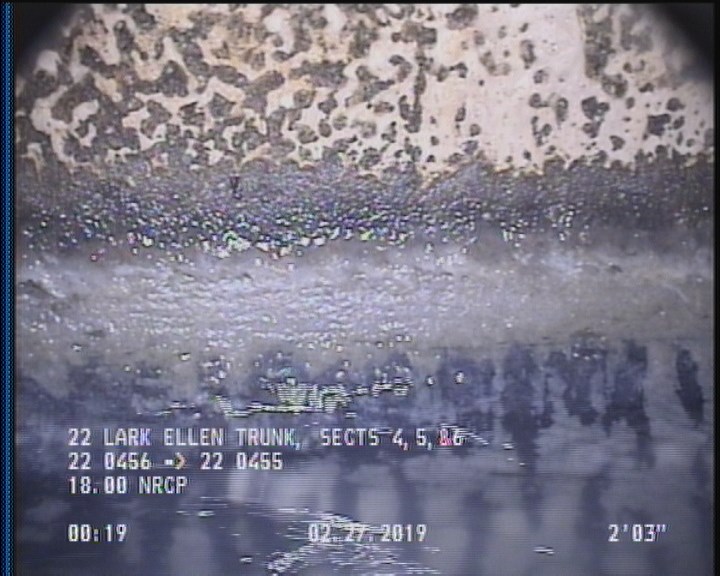

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 22 0456 |
| 261.7 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 261.7 | AMH | 22 0455 |
| 258.1 | SAP | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | SAP | — |
| 2 | DAGS | — |
| 2 | MGO | MAG COATING @ 75% - 8 TO 4 O'CLOCK - THROUGHOUT SECTION |
| 259.7 | DAGS | — |
| 257.8 | MMC | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 59.6 | TFA | — |
Properties (5)
- additional_info
- SC365921
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-02-27T00:17:03-08:00
- is_lateral_inspection
- false
