Wastewater/Activity/PacpInspection/1.0Jan 28, 2019, 11:44 AM
32 1005_32 1190 _01282019_035107.mp4
- Date
- 01/28/2019
- W/O
- 745464
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00841
- PipeID
- P19452
- Time
- 3:44 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6368
- Sewer Name
- 32 SOLEDAD CANYON TRUNK, SECTS 1,2,3,&4
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745464_TV32053_JAN2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 1005
- Downstream MH
- 32 1190
- Dir. of Survey
- Downstream
- Length Surveyed
- 83.2 ft.
- Total Length
- 83.2 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 48
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 32
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 80
Observation photos (2)

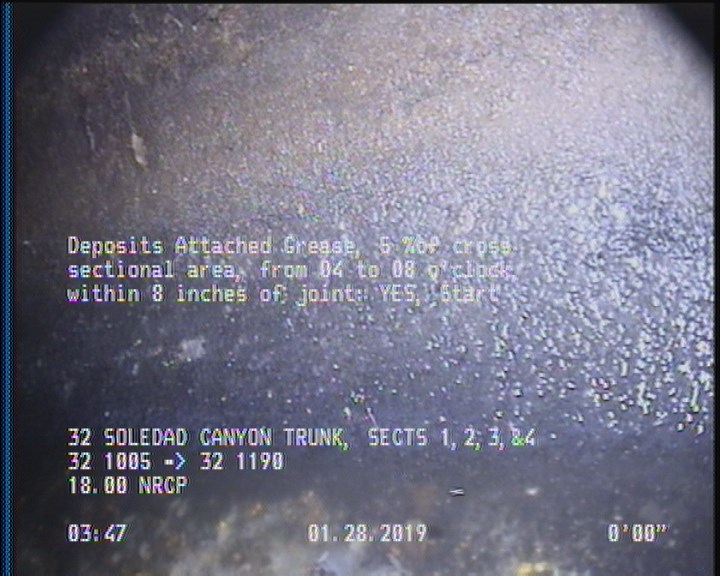

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

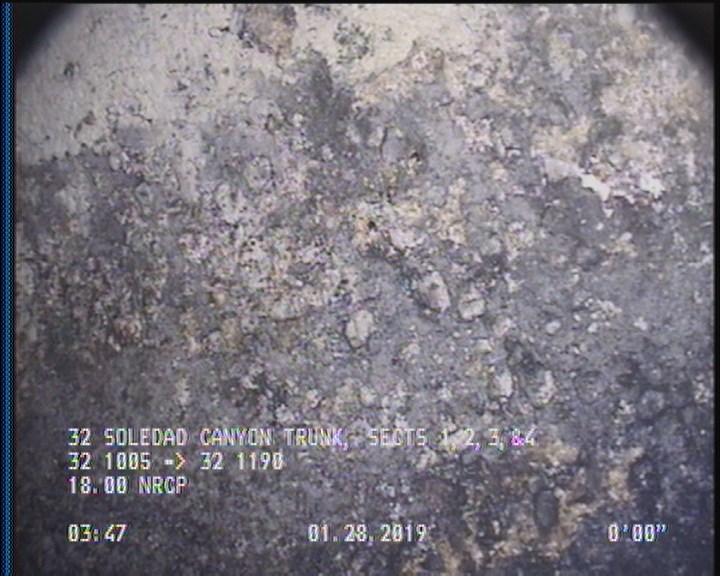

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWM | — |
| 83.2 | DAGS | — |
| 83.2 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 83.2 | SAV | — |
| 0 | MWL | — |
| 83.2 | AMH | 32 1190 |
| 0 | AMH | 32 1005 |
| 2 | SAV | — |
Properties (5)
- additional_info
- SC365685
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-28T03:44:41-08:00
- is_lateral_inspection
- false
