Wastewater/Activity/PacpInspection/1.0Mar 20, 2019, 06:34 AM
05 1830_05 1829 _03192019_234645.mp4
- Date
- 03/19/2019
- W/O
- 756626
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00492
- PipeID
- P07052
- Time
- 11:34 PM
- Certificate
- U-715-000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6484
- Sewer Name
- 05 NARBONNE AVENUE CONNECTION TRUNK
- City
- LOMITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_756626_TV05075_MAR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 05 1830
- Downstream MH
- 05 1829
- Dir. of Survey
- Downstream
- Length Surveyed
- 177.1 ft.
- Total Length
- 177.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2F11
- O&M Rating
- 73
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 73
Observation photos (2)

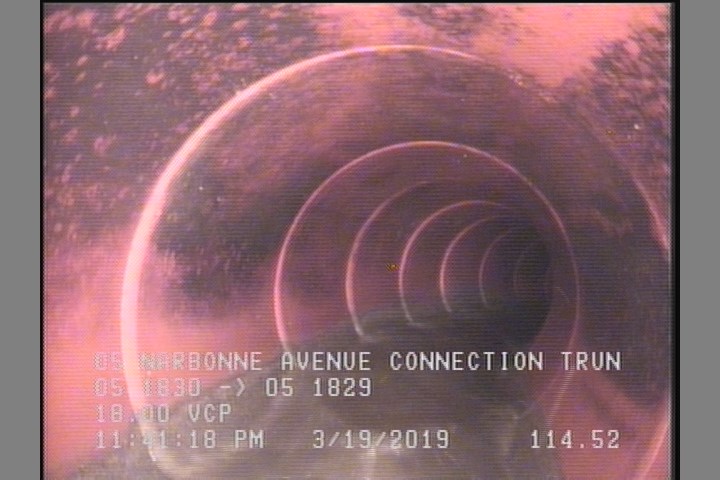

114.5 ft. - Alignment Right, 15 %, Start

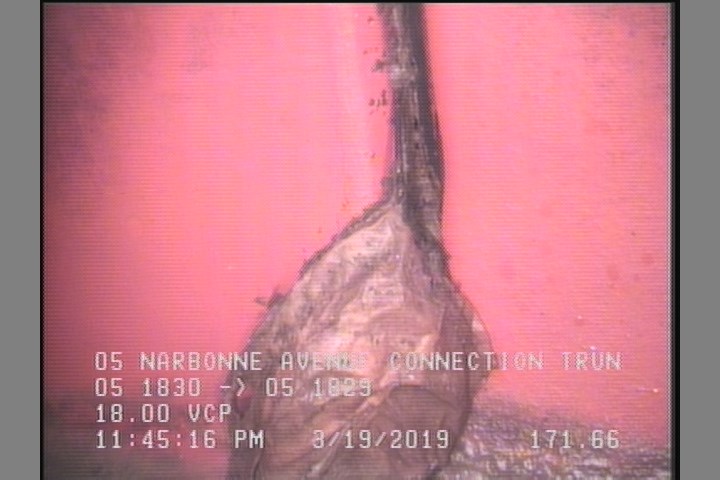

171.7 ft. - Roots Fine Joint, at 04 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 161.8 | TFA | — |
| 0 | AMH | 05 1830 |
| 0 | MWL | — |
| 1 | DAGS | — |
| 177.1 | LR | — |
| 171.7 | RFJ | — |
| 177.1 | DAGS | — |
| 177.1 | AMH | 05 1829 |
| 114.5 | LR | — |
Properties (5)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-03-19T23:34:45-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
