Wastewater/Activity/PacpInspection/1.0Feb 26, 2019, 07:04 AM
22 0463_22 0462 _02252019_231054.mp4
- Date
- 02/25/2019
- W/O
- 750841
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00816
- PipeID
- P16801
- Time
- 11:04 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5918
- Sewer Name
- 22 LARK ELLEN TRUNK, SECTS 4,5,&6
- City
- AZUSA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- RFIR_WO_750841_TV22049_FEB2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0462
- Downstream MH
- 22 0463
- Dir. of Survey
- Upstream
- Length Surveyed
- 255.8 ft.
- Total Length
- 255.8 ft.
- Structural Index
- 2
- Structural Quick
- 3C2H
- Structural Rating
- 151
- O&M Index
- 2
- O&M Quick
- 2I00
- O&M Rating
- 98
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 249
Observation photos (3)

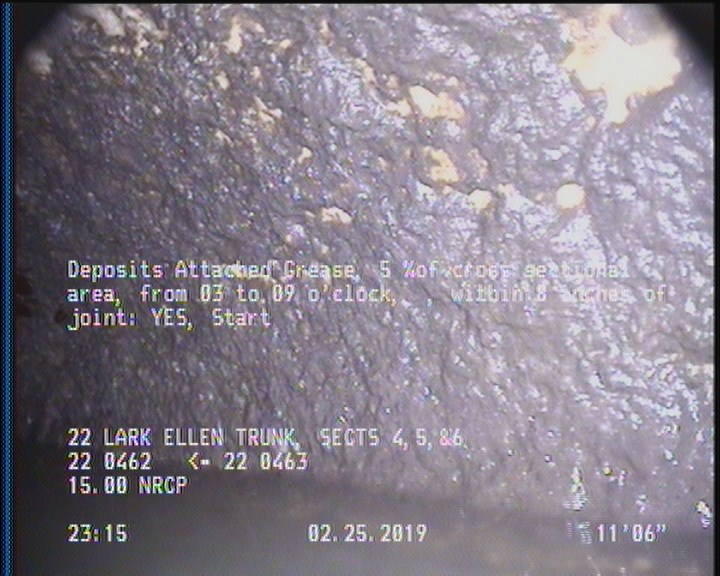

11.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

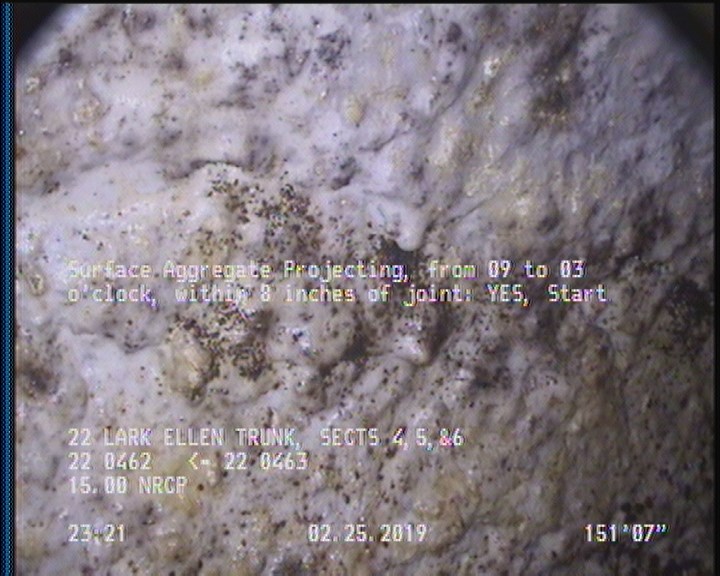

151.6 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

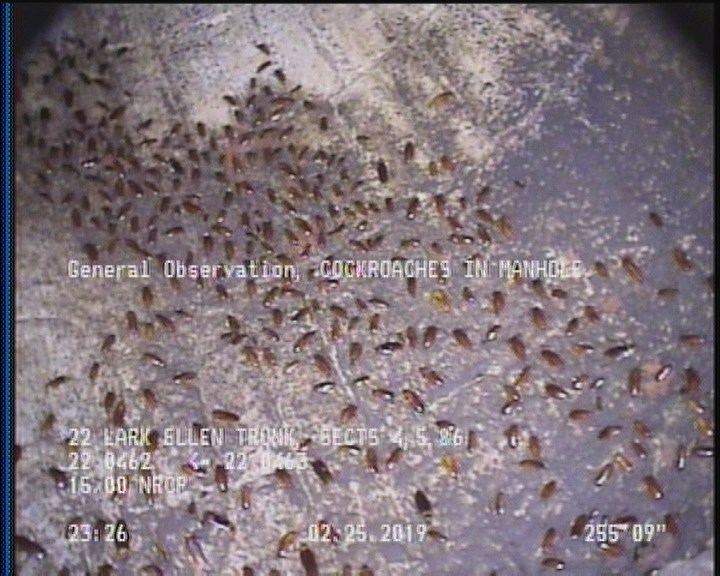

255.8 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 255.8 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 255.8 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | 22 0462 |
| 33.1 | SSS | — |
| 11.5 | DAGS | — |
| 254.7 | DAGS | — |
| 2 | MGO | MAG COATING THROUGHOUT 75% |
| 151.6 | SAP | — |
| 0 | MWL | — |
| 255.8 | AMH | 22 0463 |
| 0 | MWM | — |
| 254.7 | SSS | — |
| 149 | TFC | — |
| 254.7 | SAP | — |
| 69.2 | TFA | — |
Properties (6)
- additional_info
- SC365919
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-02-25T23:04:45-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
