Wastewater/Activity/PacpInspection/1.0Feb 28, 2019, 11:15 AM
B 0284_B 0283 _02282019_031612.mp4
- Date
- 02/28/2019
- W/O
- 750814
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00082
- PipeID
- P08774
- Time
- 3:15 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6411
- Sewer Name
- B JOINT OUTFALL B - UNIT 1H
- City
- ROSEMEAD
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_750814_TV15119_FEB2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- B 0283
- Downstream MH
- B 0284
- Dir. of Survey
- Upstream
- Length Surveyed
- 61.6 ft.
- Total Length
- 61.6 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2A00
- O&M Rating
- 24
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 27
Observation photos (2)

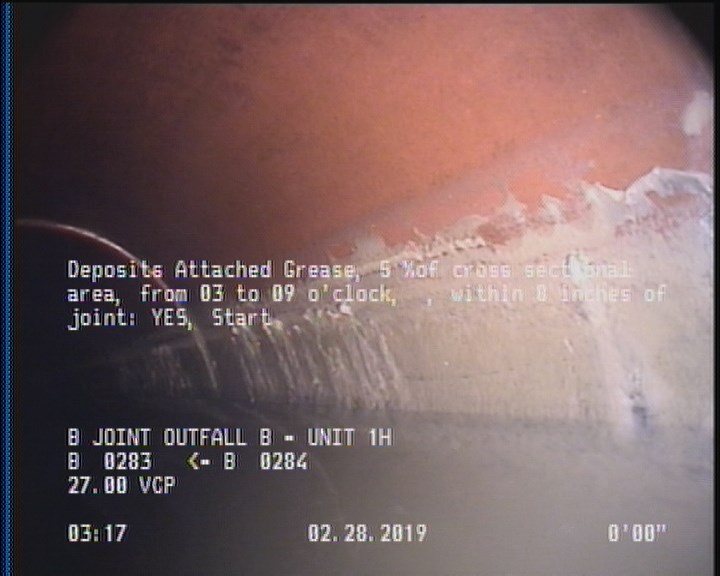

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

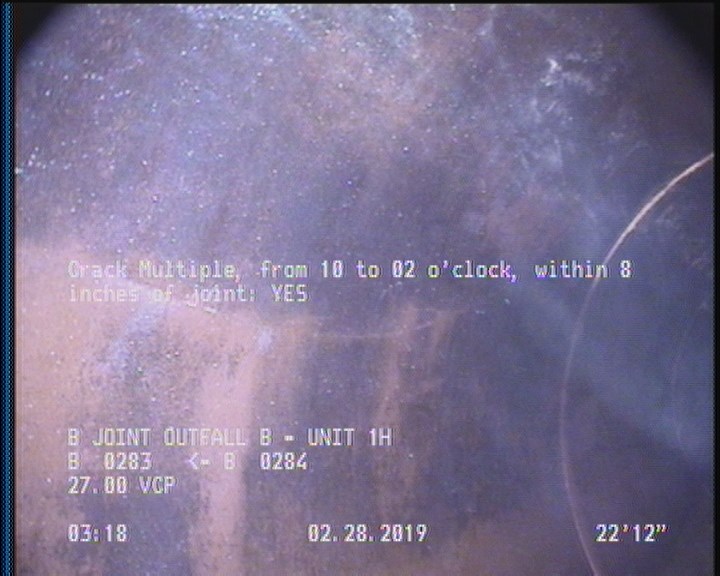

23 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | B 0283 |
| 0 | MWL | — |
| 23 | CM | — |
| 61.6 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 59.6 | DAGS | — |
| 61.6 | AMH | B 0284 |
| 2 | DAGS | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC365926
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-02-28T03:15:54-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
