Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 17, 2018, 11:07 AM

  • 08 0317_08 0316_09172018_040810.mp4

Date
09/17/2018
W/O
723785
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00013
PipeID
P00364
Time
4:07 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6028
Sewer Name
08 KEYSTONE TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
10
Purpose
Routine Assessment
Project
WO_723785_TV08154_SEP2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
08 0317
Downstream MH
08 0316
Dir. of Survey
Downstream
Length Surveyed
343.7 ft.
Total Length
343.7 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
201
O&M Index
2
O&M Quick
2M00
O&M Rating
136
Overall Index
3
Overall Quick
—
Overall Rating
337
Pipe schematic from manhole 08 0317 to 08 0316
MH: 08 0317MH: 08 0316downstream0 ft. AMH - Upstream Manhole, Survey Begins - 08 03170 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION A MH 3 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start4.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start18 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"76.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"122.5 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"165.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"215.7 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"262.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"333.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"337.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish341.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish343.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE343.7 ft. AMH - Downstream Manhole, Survey Ends - 08 0316

Observation photos (4)

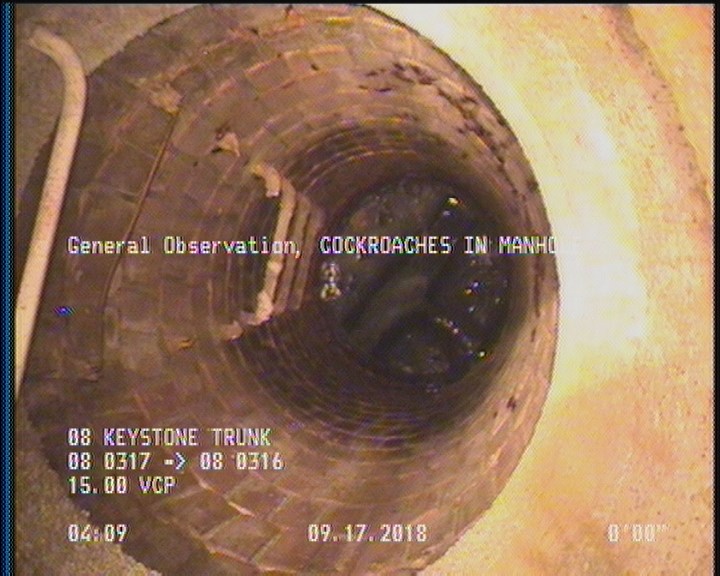

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

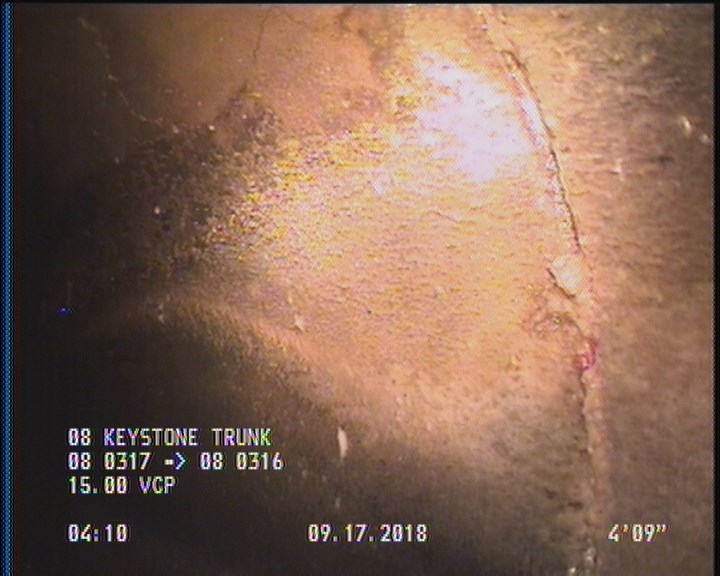

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

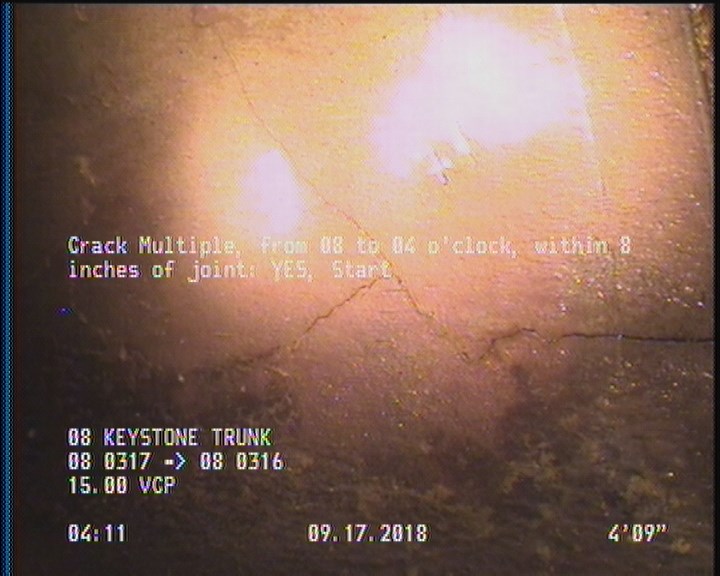

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

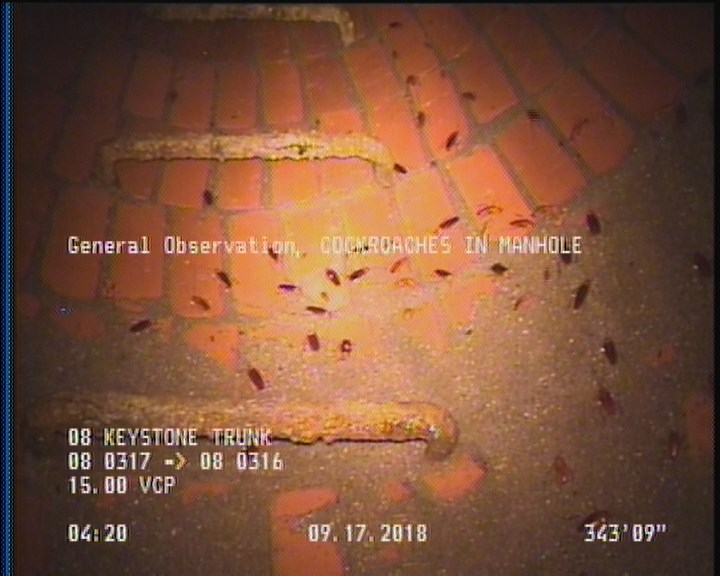

  • General Observation - COCKROACHES IN MANHOLE

    343.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P00364Work order 723785

Observations (18)

DistanceCodeObservation
333.9TFC—
215.7TFA—
0AMH08 0317
0MGOCOCKROACHES IN MANHOLE
2DAGS—
0MWM—
165.5TFC—
0MGOACTIVE CONNECTION A MH 3 O'CLOCK
18TFC—
262.9TFC—
343.7MGOCOCKROACHES IN MANHOLE
337.7CM—
0MWL—
341.4DAGS—
122.5TFA—
343.7AMH08 0316
76.6TFA—
4.7CM—

Properties (5)

additional_info
SC364792
custom_field_two
3
customer
LACSD
datetime
2018-09-17T04:07:41-07:00
is_lateral_inspection
false
