Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 26, 2018, 09:28 AM

  • E 0103_E 0102_09262018_023015.mp4

Date
09/26/2018
W/O
718146
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00031
PipeID
P11330
Time
2:28 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6046
Sewer Name
E JOINT OUTFALL E - UNIT 4 RELOCATION
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_718146_TV01089_AUG2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
E 0102
Downstream MH
E 0103
Dir. of Survey
Upstream
Length Surveyed
68 ft.
Total Length
68 ft.
Structural Index
3
Structural Quick
5A3B
Structural Rating
115
O&M Index
3
O&M Quick
513A
O&M Rating
64
Overall Index
3
Overall Quick
—
Overall Rating
179
Pipe schematic from manhole E 0102 to E 0103
MH: E 0102MH: E 0103upstream0 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish0 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish0 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish0 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - E 010348.9 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start56.4 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start - DEBRIS66 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start66 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start66 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start68 ft. MGO - General Observation - COCKROACHES IN MANHOLE68 ft. MWL - Water Level, 50 %of cross sectional area68 ft. AMH - Downstream Manhole, Survey Begins - E 010268 ft. MWM - Water Mark, 75 %of cross sectional area

Observation photos (5)

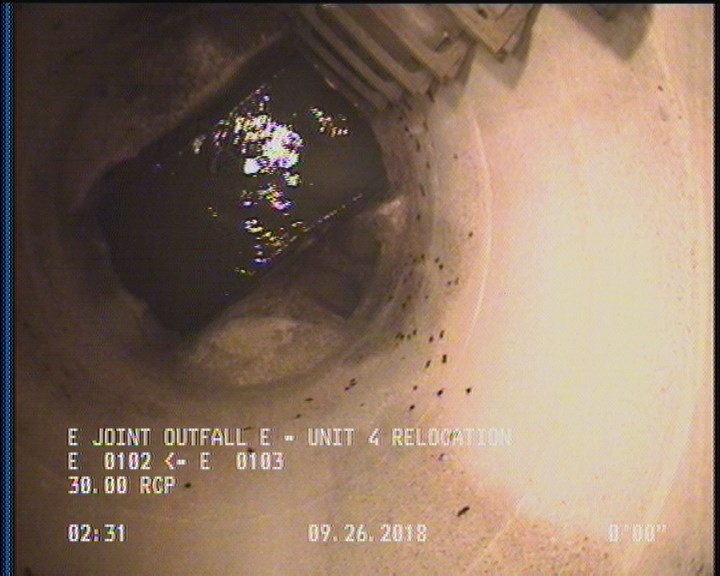

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

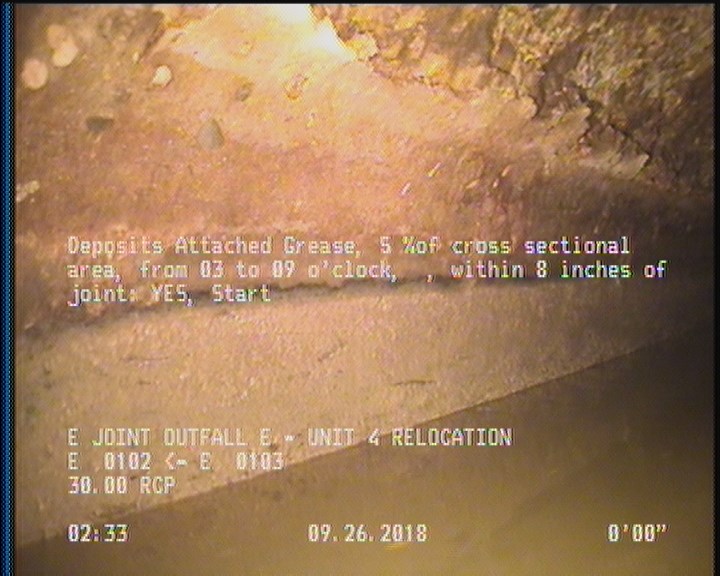

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

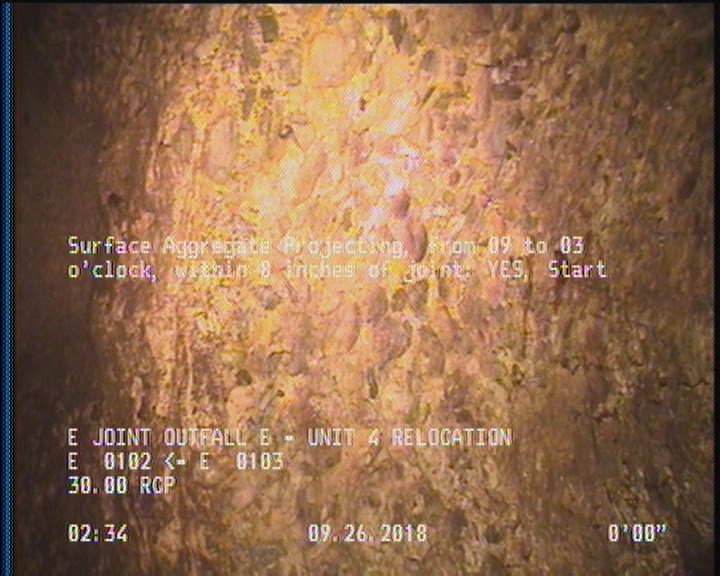

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

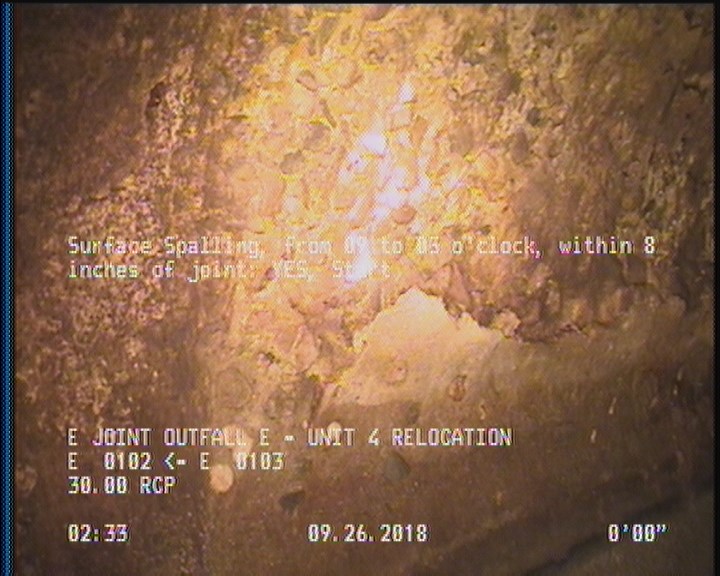

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    19.1 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P11330Work order 718146

Observations (15)

DistanceCodeObservation
0MGOCOCKROACHES IN MANHOLE
68SAP—
2DAGS—
0MWL—
68DSZ—
0AMHE 0102
68DAGS—
2SAP—
68SRV—
19.1SRV—
68SSS—
2SSS—
11.6DSZDEBRIS
68AMHE 0103
0MWM—

Properties (6)

additional_info
SC365109
custom_field_two
2
customer
LACSD
datetime
2018-09-26T02:28:12-07:00
is_lateral_inspection
false
year_laid
30530
