Wastewater/Activity/PacpInspection/1.0May 8, 2018, 06:05 AM
02 0216_02 0706_07052018_230928.mp4
- Date
- 05/07/2018
- W/O
- 701686
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00311
- PipeID
- P03258
- Time
- 11:05 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5659
- Sewer Name
- 02 WOODRUFF AVENUE TRUNK
- City
- DOWNEY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_701686_TV02370_MAY2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 0706
- Downstream MH
- 02 0216
- Dir. of Survey
- Upstream
- Length Surveyed
- 53.7 ft.
- Total Length
- 53.7 ft.
- Structural Index
- 3
- Structural Quick
- 3A23
- Structural Rating
- 36
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 36
Observation photos (2)

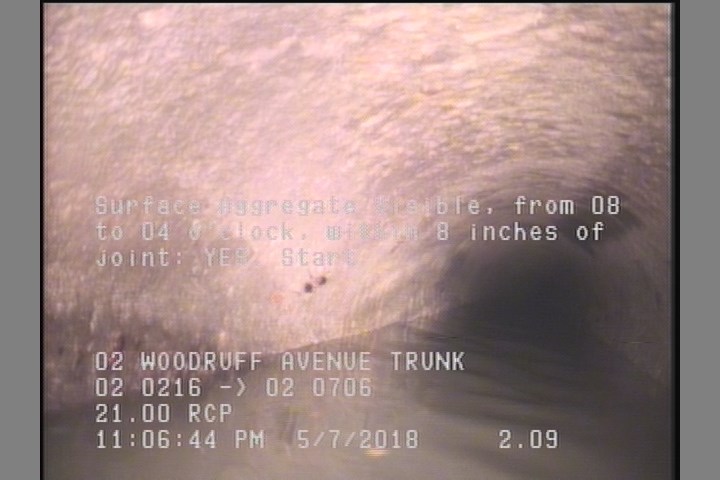

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

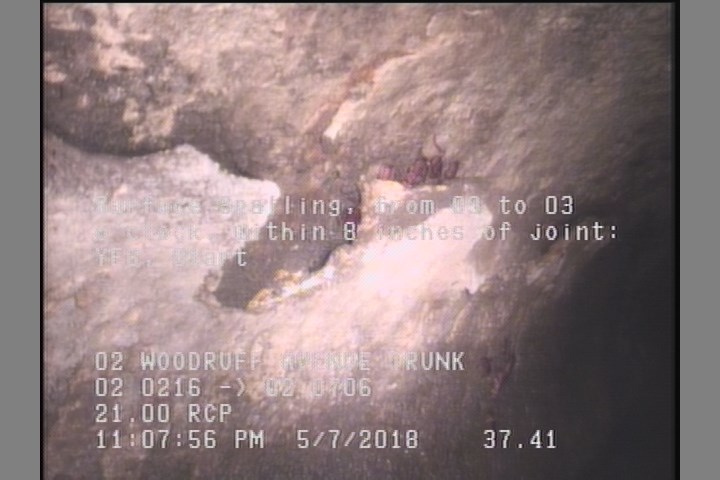

37.4 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 53.7 | AMH | 02 0216 |
| 2.1 | SAV | — |
| 53.7 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 53.7 | SSS | — |
| 0 | MWL | — |
| 53.7 | SAV | — |
| 37.4 | SSS | — |
| 0 | AMH | 02 0706 |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC359315
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-07T23:05:00-07:00
- is_lateral_inspection
- false
