Wastewater/Activity/PacpInspection/1.0May 8, 2018, 06:24 AM
02 0700_02 0699_07052018_234335.mp4
- Date
- 05/07/2018
- W/O
- 701686
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00311
- PipeID
- P03251
- Time
- 11:24 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5659
- Sewer Name
- 02 WOODRUFF AVENUE TRUNK
- City
- DOWNEY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_701686_TV02370_MAY2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 02 0700
- Downstream MH
- 02 0699
- Dir. of Survey
- Downstream
- Length Surveyed
- 455 ft.
- Total Length
- 455 ft.
- Structural Index
- 3
- Structural Quick
- 3Q2O
- Structural Rating
- 434
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 436
Observation photos (3)

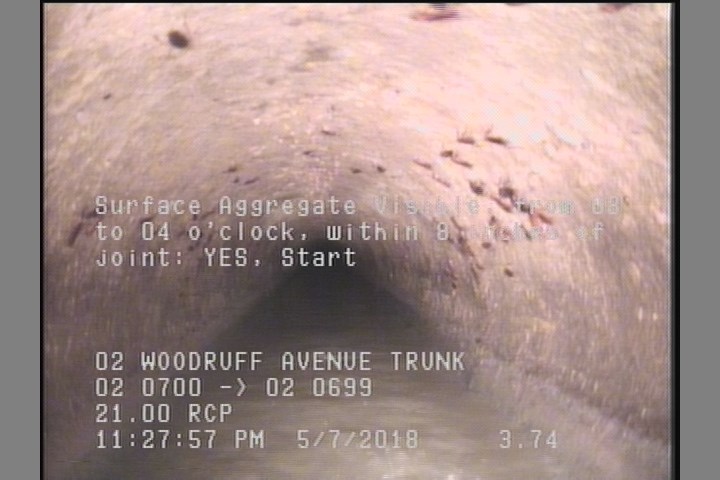

3.7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

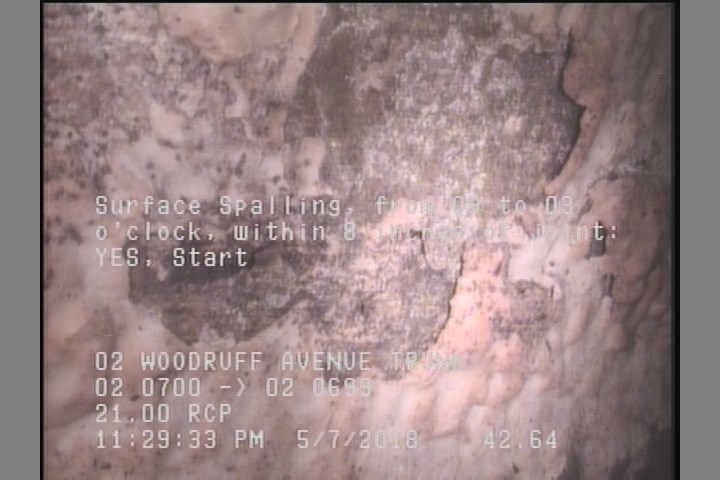

42.6 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

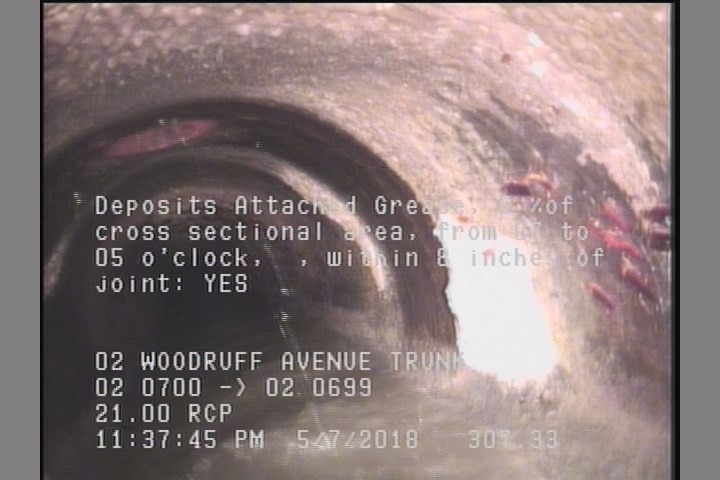

307.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 02 0700 |
| 0.2 | MWM | — |
| 455 | AMH | 02 0699 |
| 455 | SAV | — |
| 199 | TFC | — |
| 439 | TFA | — |
| 42.6 | SSS | — |
| 0 | MWL | — |
| 3.7 | SAV | — |
| 78 | TFC | — |
| 307.3 | DAGS | — |
| 455 | SSS | — |
| 308.4 | TFA | — |
| 250.3 | TF | — |
Properties (5)
- additional_info
- SC359315
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-07T23:24:34-07:00
- is_lateral_inspection
- false
