Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 8, 2018, 05:11 AM

  • 02 0705_02 0704_07052018_224223.mp4

Date
05/07/2018
W/O
701686
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00311
PipeID
P03256
Time
10:11 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5659
Sewer Name
02 WOODRUFF AVENUE TRUNK
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
27
Purpose
Routine Assessment
Project
WO_701686_TV02370_MAY2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
02 0705
Downstream MH
02 0704
Dir. of Survey
Downstream
Length Surveyed
784.1 ft.
Total Length
784.1 ft.
Structural Index
3
Structural Quick
3^2C
Structural Rating
506
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
506
Pipe schematic from manhole 02 0705 to 02 0704
MH: 02 0705MH: 02 0704downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 07050 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK2.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start7 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start23.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish23.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start86.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"101.8 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish414.1 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"458.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"628.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"668.9 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"783.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish784.1 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK784.1 ft. AMH - Downstream Manhole, Survey Ends - 02 0704

Observation photos (3)

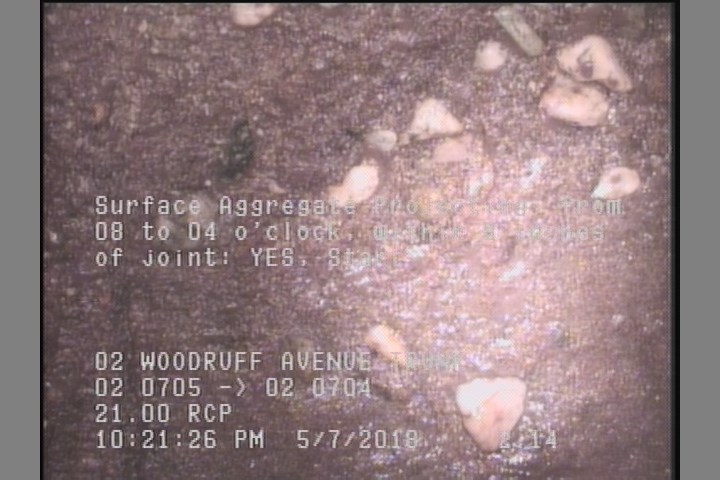

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

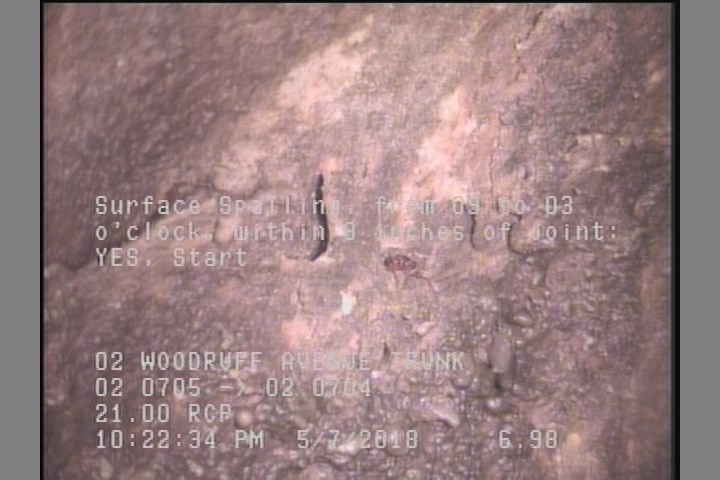

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    7 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

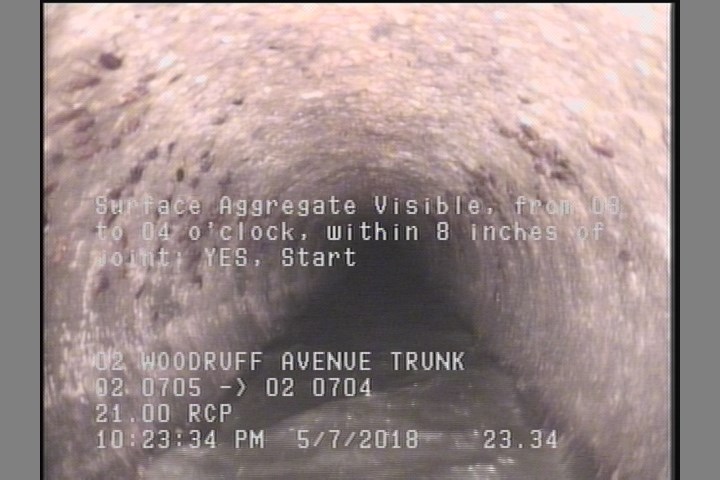

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    23.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P03256Work order 701686

Observations (17)

DistanceCodeObservation
23.3SAP—
2.1SAP—
0AMH02 0705
0MWL—
7SSS—
668.9TF—
458.9TF—
86.2TF—
0MWM—
0MGOCONNECTION AT MH 9 O'CLOCK
414.1TF—
23.3SAV—
101.8SSS—
783.4SAV—
784.1MGOCONNECTION AT MH 9 O'CLOCK
784.1AMH02 0704
628.9TF—

Properties (5)

additional_info
SC359315
custom_field_two
3
customer
LACSD
datetime
2018-05-07T22:11:30-07:00
is_lateral_inspection
false
