Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 17, 2018, 03:45 PM

  • B 0008_B 0007_17052018_085011.mp4

Date
05/17/2018
W/O
701684
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00072
PipeID
P08518
Time
8:45 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5672
Sewer Name
B JOINT OUTFALL B - UNIT 1A
City
CARSON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
17
Purpose
Routine Assessment
Project
WO_701684_TV30071_MAY2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
144 in.
Width
144 in.
Upstream MH
B 0007
Downstream MH
B 0008
Dir. of Survey
Upstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole B 0007 to B 0008
MH: B 0007MH: B 0008upstream0 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO0 ft. MSA - Survey Abandoned - REVERSAL COMPLETED2.1 ft. MWM - Water Mark, 20 %of cross sectional area2.1 ft. MWL - Water Level, 20 %of cross sectional area2.1 ft. AMH - Downstream Manhole, Survey Begins - B 00072.1 ft. MGO - Reversal Inspection

Observation photos (2)

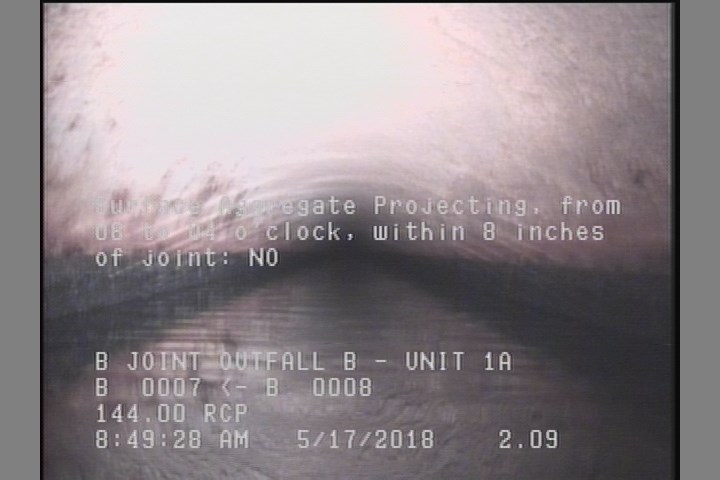

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO

    2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO

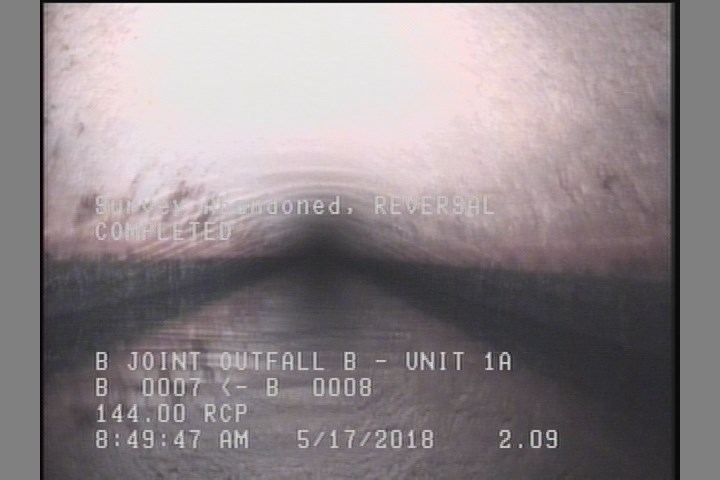

  • Survey Abandoned - REVERSAL COMPLETED

    2.1 ft. - Survey Abandoned - REVERSAL COMPLETED

All inspections of P08518Work order 701684

Observations (6)

DistanceCodeObservation
2.1SAP—
0MWM—
2.1MSAREVERSAL COMPLETED
0MWL—
0AMHB 0007
0MGO—

Properties (6)

additional_info
SC359330
custom_field_two
5
customer
LACSD
datetime
2018-05-17T08:45:48-07:00
is_lateral_inspection
false
year_laid
36930
