Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 21, 2018, 09:26 AM

  • B 0003_B 0002 _21052018_031227.mp4

Date
05/21/2018
W/O
701684
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00072
PipeID
P08513
Time
2:26 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5674
Sewer Name
B JOINT OUTFALL B - UNIT 1A
City
CARSON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
16
Purpose
Routine Assessment
Project
WO_701684_TV30071_MAY2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
144 in.
Width
144 in.
Upstream MH
B 0003
Downstream MH
B 0002
Dir. of Survey
Downstream
Length Surveyed
1201.8 ft.
Total Length
1201.8 ft.
Structural Index
4
Structural Quick
5o3Ÿ
Structural Rating
2637
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
2637
Pipe schematic from manhole B 0003 to B 0002
MH: B 0003MH: B 0002downstream0 ft. AMH - Upstream Manhole, Survey Begins - B 00030 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area2.1 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start2.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.1 ft. MGO - General Observation - MAG COAT2.1 ft. SRP - Surface Reinforcement Projecting, from 01 to 03 o'clock, within 8 inches of joint: YES12.7 ft. SRP - Surface Reinforcement Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start91.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"657.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"707.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"851 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"940.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"1046.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"1201.8 ft. AMH - Downstream Manhole, Survey Ends - B 00021201.8 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish1201.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1201.8 ft. SRP - Surface Reinforcement Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

Observation photos (4)

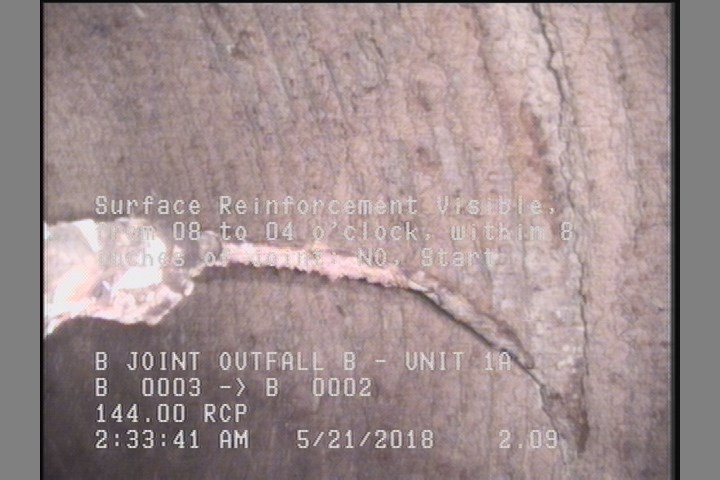

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

    2.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

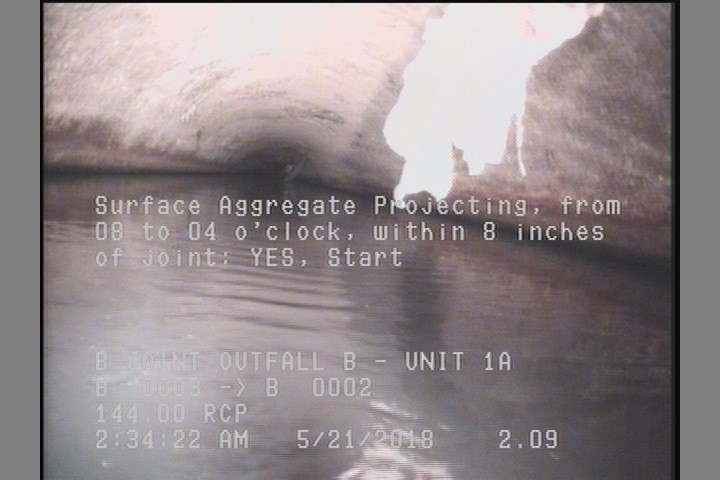

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

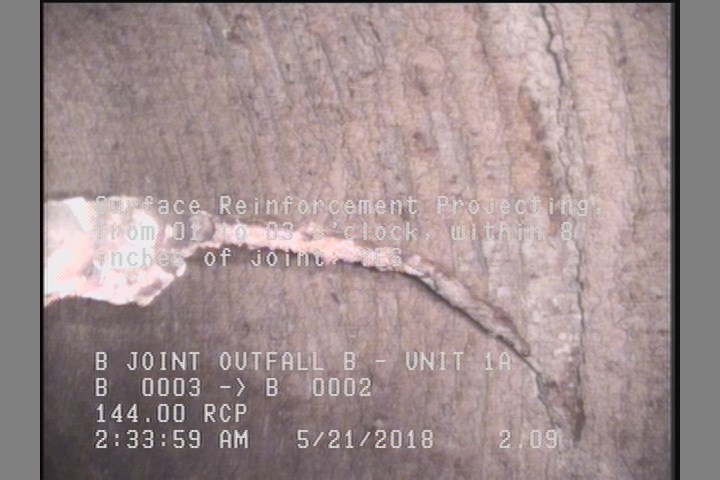

  • Surface Reinforcement Projecting, from 01 to 03 o'clock, within 8 inches of joint: YES

    2.1 ft. - Surface Reinforcement Projecting, from 01 to 03 o'clock, within 8 inches of joint: YES

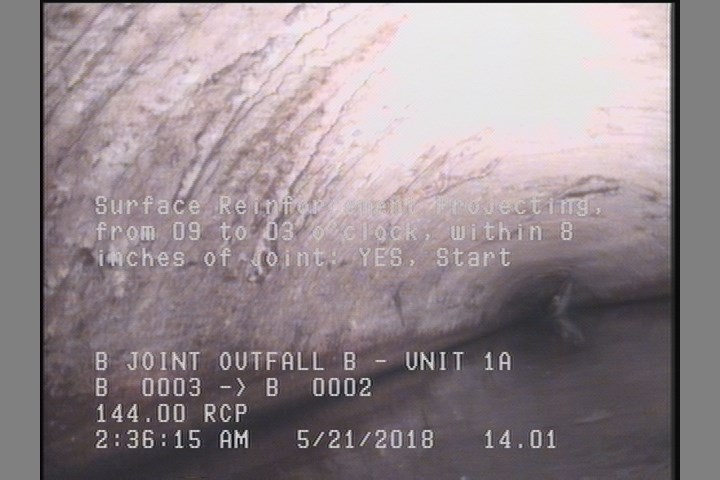

  • Surface Reinforcement Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    12.7 ft. - Surface Reinforcement Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P08513Work order 701684

Observations (18)

DistanceCodeObservation
2.1SRV—
940.2TF—
2.1SAP—
1046.5TF—
657.1TF—
0AMHB 0003
1201.8AMHB 0002
0MWM—
12.7SRP—
91.4TFA—
2.1MGOMAG COAT
2.1SRP—
1201.8SRV—
1201.8SAP—
707.9TF—
0MWL—
851TF—
1201.8SRP—

Properties (6)

additional_info
SC359332
custom_field_two
1
customer
LACSD
datetime
2018-05-21T02:26:39-07:00
is_lateral_inspection
false
year_laid
36930
