Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 15, 2018, 07:01 AM

  • B 0013_B 0012_15052018_002829.mp4

Date
05/15/2018
W/O
701684
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00072
PipeID
P08523
Time
12:01 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5669
Sewer Name
B JOINT OUTFALL B - UNIT 1A
City
CARSON
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
14
Purpose
Routine Assessment
Project
WO_701684_TV30071_MAY2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
144 in.
Width
144 in.
Upstream MH
B 0013
Downstream MH
B 0012
Dir. of Survey
Downstream
Length Surveyed
1040.8 ft.
Total Length
1040.8 ft.
Structural Index
4
Structural Quick
5h3h
Structural Rating
1624
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
1624
Pipe schematic from manhole B 0013 to B 0012
MH: B 0013MH: B 0012downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 00130 ft. MWM - Water Mark, 35 %of cross sectional area26.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start26.1 ft. MGO - General Observation - MAG COAT26.1 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start1040.8 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1040.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1040.8 ft. AMH - Downstream Manhole, Survey Ends - B 0012 ZOOMED IN

Observation photos (2)

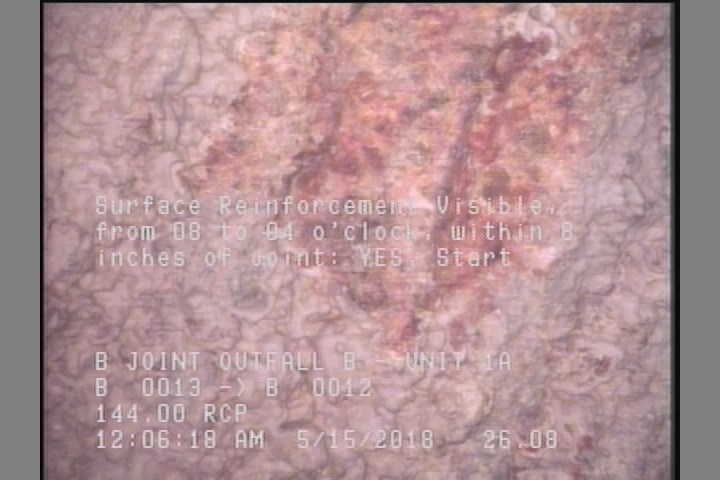

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    26.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

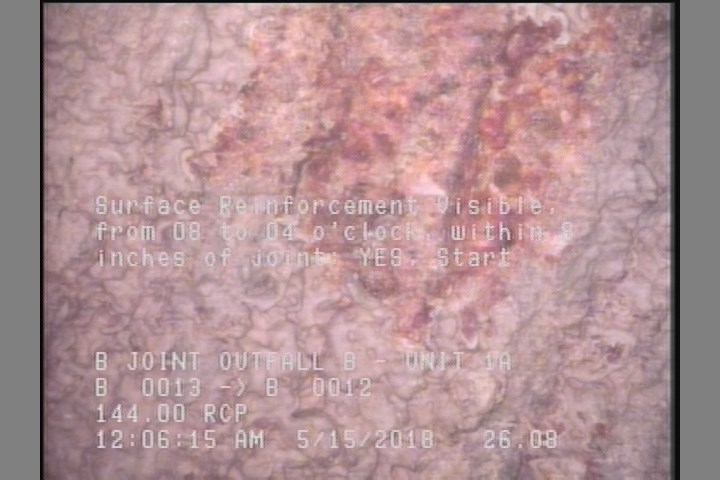

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    26.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P08523Work order 701684

Observations (9)

DistanceCodeObservation
26.1SAP—
1040.8SRV—
0MWL—
1040.8SAP—
26.1MGOMAG COAT
1040.8AMHB 0012 ZOOMED IN
26.1SRV—
0AMHB 0013
0MWM—

Properties (6)

additional_info
SC359326
custom_field_two
2
customer
LACSD
datetime
2018-05-15T00:01:15-07:00
is_lateral_inspection
false
year_laid
36930
