Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 18, 2018, 08:45 AM

  • 18 0293_18 0292 _18052018_015626.mp4

Date
05/18/2018
W/O
701652
Weather
Dry
Operator/Surveyor
K. ADAME
Sewer ID
Z00702
PipeID
P14122
Time
1:45 AM
Certificate
U-0817-07009000
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5613
Sewer Name
18 SHOEMAKER AVENUE TRUNK
City
NORWALK, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
25
Purpose
Routine Assessment
Project
WO_701652_TV18178_MAY2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
18 0293
Downstream MH
18 0292
Dir. of Survey
Downstream
Length Surveyed
98.4 ft.
Total Length
98.4 ft.
Structural Index
4
Structural Quick
4300
Structural Rating
12
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 18 0293 to 18 0292
MH: 18 0293MH: 18 0292downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 18 02930 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0.1 ft. MMC - Material Change, Vitrified clay pipe40.2 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"41.4 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES42.8 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start42.8 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: YES, 4"51.7 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish98.4 ft. AMH - Downstream Manhole, Survey Ends - 18 0292

Observation photos (3)

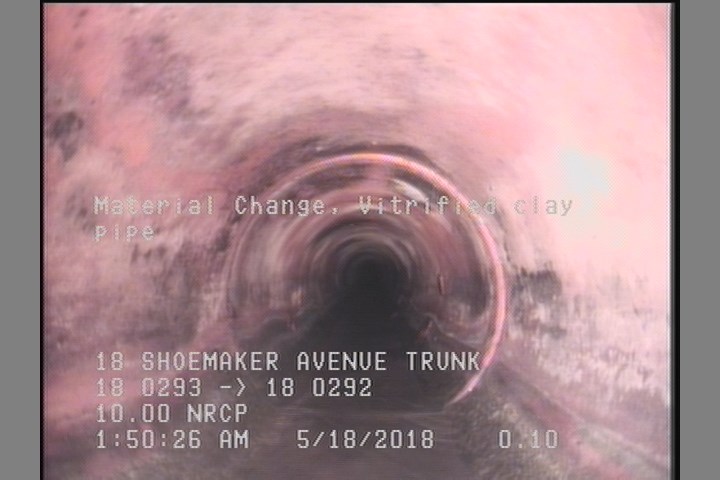

  • Material Change, Vitrified clay pipe

    0.1 ft. - Material Change, Vitrified clay pipe

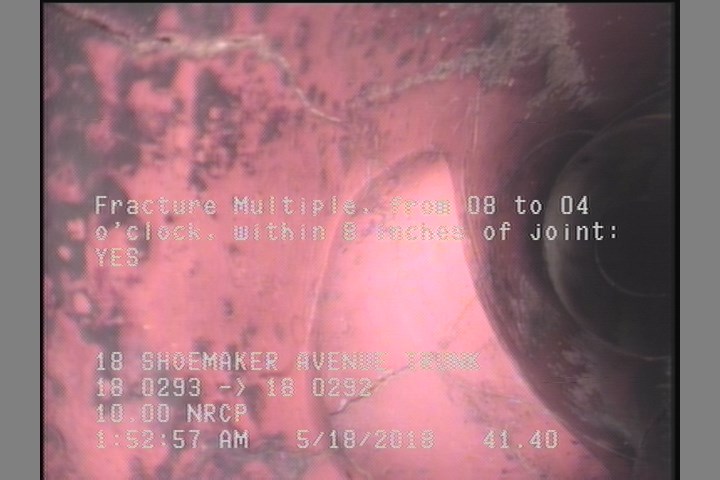

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    41.4 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

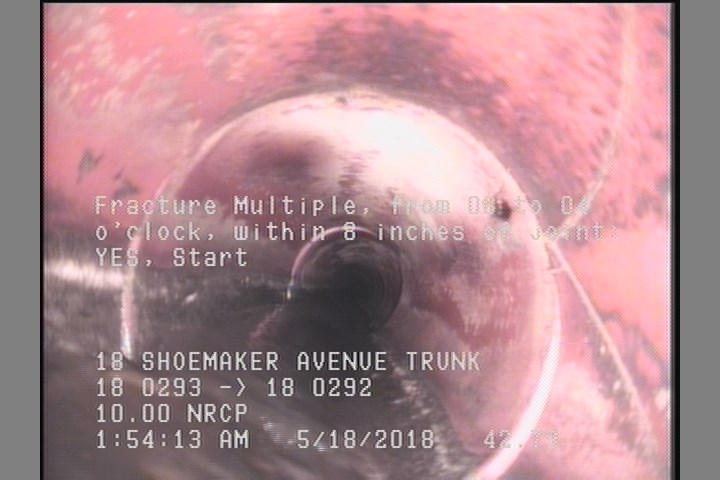

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    42.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P14122Work order 701652

Observations (11)

DistanceCodeObservation
0MGOCONNECTION AT MH 3 O'CLOCK
42.8FM—
0AMH18 0293
0MWL—
40.2TFC—
51.7FM—
0MWM—
41.4FM—
0.1MMC—
42.8TFC—
98.4AMH18 0292

Properties (5)

additional_info
SC359168
custom_field_two
2
customer
LACSD
datetime
2018-05-18T01:45:08-07:00
is_lateral_inspection
false
