Wastewater/Activity/PacpInspection/1.0Apr 27, 2018, 06:45 PM
18 0431_18 0430 _08052018_003733.mp4
- Date
- 04/27/2018
- W/O
- 701393
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00675
- PipeID
- P14279
- Time
- 11:45 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5314
- Sewer Name
- 18 FLORENCE AVENUE TRUNK
- City
- SANTA FE SPRINGS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_701393_TV18097_MAY2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 18 0431
- Downstream MH
- 18 0430
- Dir. of Survey
- Downstream
- Length Surveyed
- 448.3 ft.
- Total Length
- 448.3 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

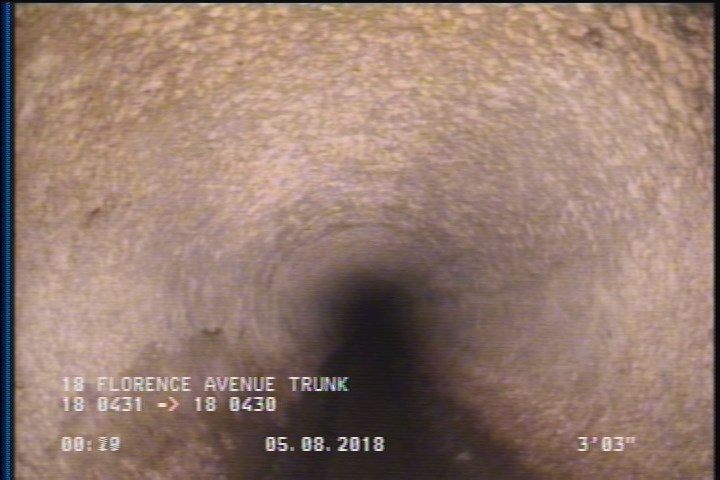

3.3 ft. - General Observation - MAGNEZIUM H.O COATING start

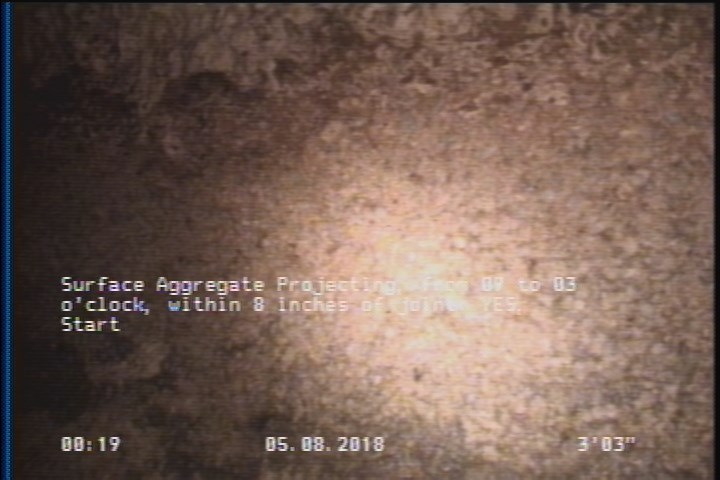

3.3 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

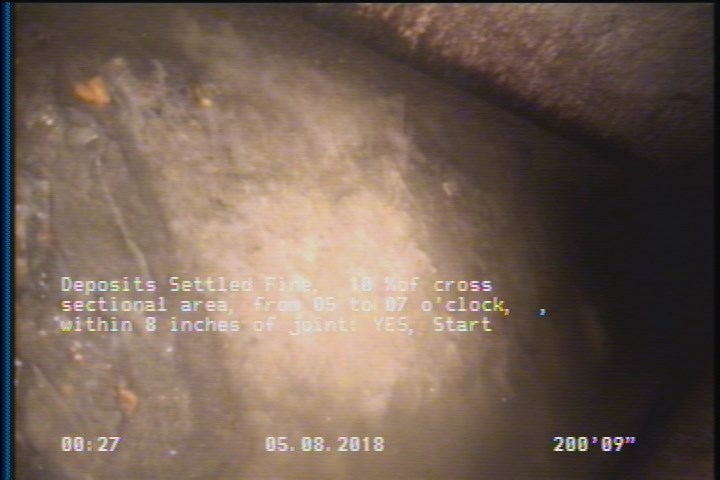

200.8 ft. - Deposits Settled Fine, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (20)
| Distance | Code | Observation |
|---|---|---|
| 378.5 | TFC | — |
| 25.2 | TFC | — |
| 427.3 | TFC | — |
| 77.5 | TFA | — |
| 446.3 | DSF | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 3.3 | MGO | MAGNEZIUM H.O COATING start |
| 200.8 | DSF | — |
| 126.1 | TFC | — |
| 326.9 | TFC | — |
| 0 | AMH | 18 0431 |
| 448.3 | AMH | 18 0430 |
| 278.2 | TFC | — |
| 446.4 | MGO | MAGNEZIUM H.O COATING finish |
| 226.7 | TFC | — |
| 446.4 | SAP | — |
| 3.3 | SAP | — |
| 0 | MWL | — |
| 178.1 | TFC | — |
| 0 | MWM | — |
Properties (4)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-04-27T11:45:39-07:00
- is_lateral_inspection
- false
