Wastewater/Activity/PacpInspection/1.0Apr 27, 2018, 06:45 PM
18 0430_18 0429 _08052018_012749.mp4
- Date
- 04/27/2018
- W/O
- 701393
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00675
- PipeID
- P14278
- Time
- 11:45 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Jetting
- Media Label
- K5314
- Sewer Name
- 18 FLORENCE AVENUE TRUNK
- City
- SANTA FE SPRINGS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_701393_TV18097_MAY2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 18 0430
- Downstream MH
- 18 0429
- Dir. of Survey
- Downstream
- Length Surveyed
- 454.4 ft.
- Total Length
- 454.4 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (4)

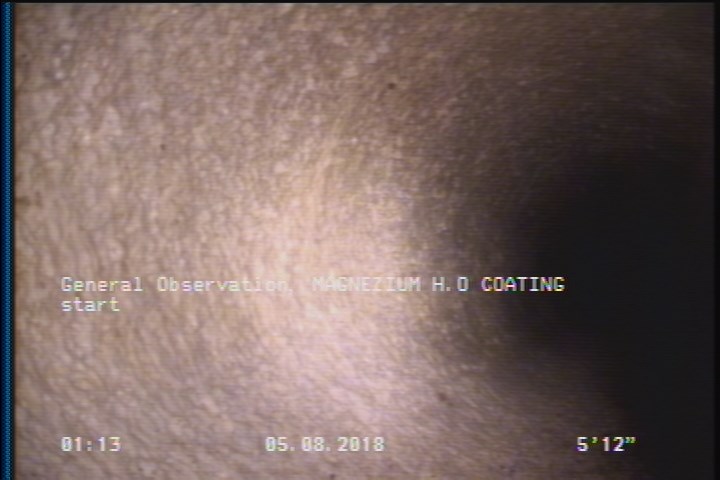

6 ft. - General Observation - MAGNEZIUM H.O COATING start

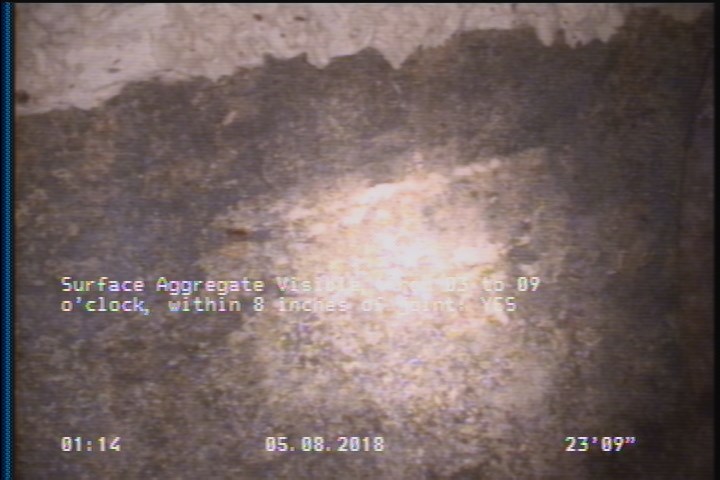

23 ft. - Surface Aggregate Visible, from 03 to 09 o'clock, within 8 inches of joint: YES

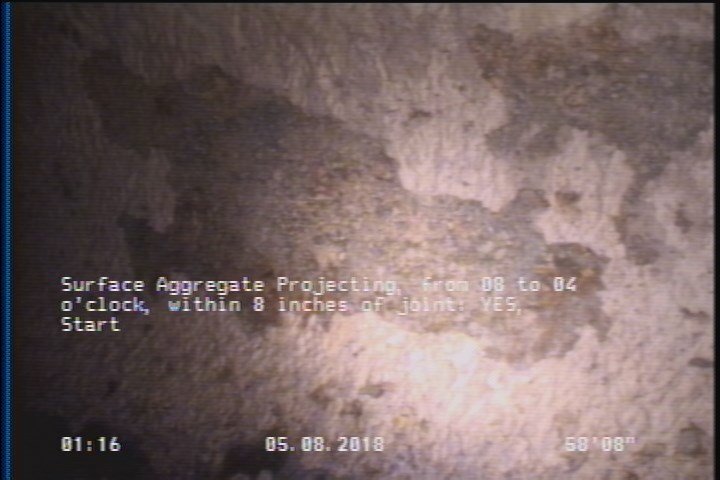

58.7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

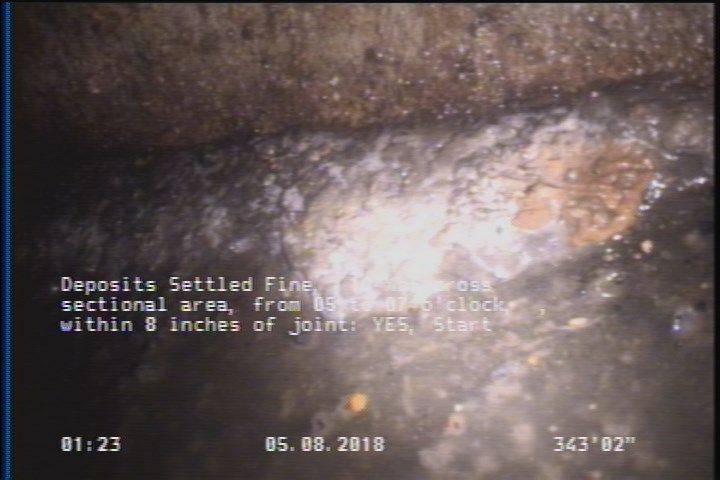

343.1 ft. - Deposits Settled Fine, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 153.5 | TFC | — |
| 23 | SAV | — |
| 0 | MWL | — |
| 450.7 | MGO | MAGNEZIUM H.O COATING finish |
| 454.4 | AMH | 18 0429 |
| 58.7 | SAP | — |
| 0 | AMH | 18 0430 |
| 347.4 | TFC | — |
| 450.7 | SAP | — |
| 6 | MGO | MAGNEZIUM H.O COATING start |
| 28.6 | TFC | — |
| 242.4 | TFC | — |
| 0 | MWM | — |
| 343.1 | DSF | — |
| 378.3 | DSF | — |
| 81.2 | TFC | — |
Properties (4)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-04-27T11:45:39-07:00
- is_lateral_inspection
- false
